6 EN
INSTALLING YOUR NEW RECORDER (cont.)
Connecting/
Using A Stereo
System
These instructions enable you to connect your video recorder to
your Hi-Fi stereo system (if you have one) and listen to the
soundtrack through the stereo.

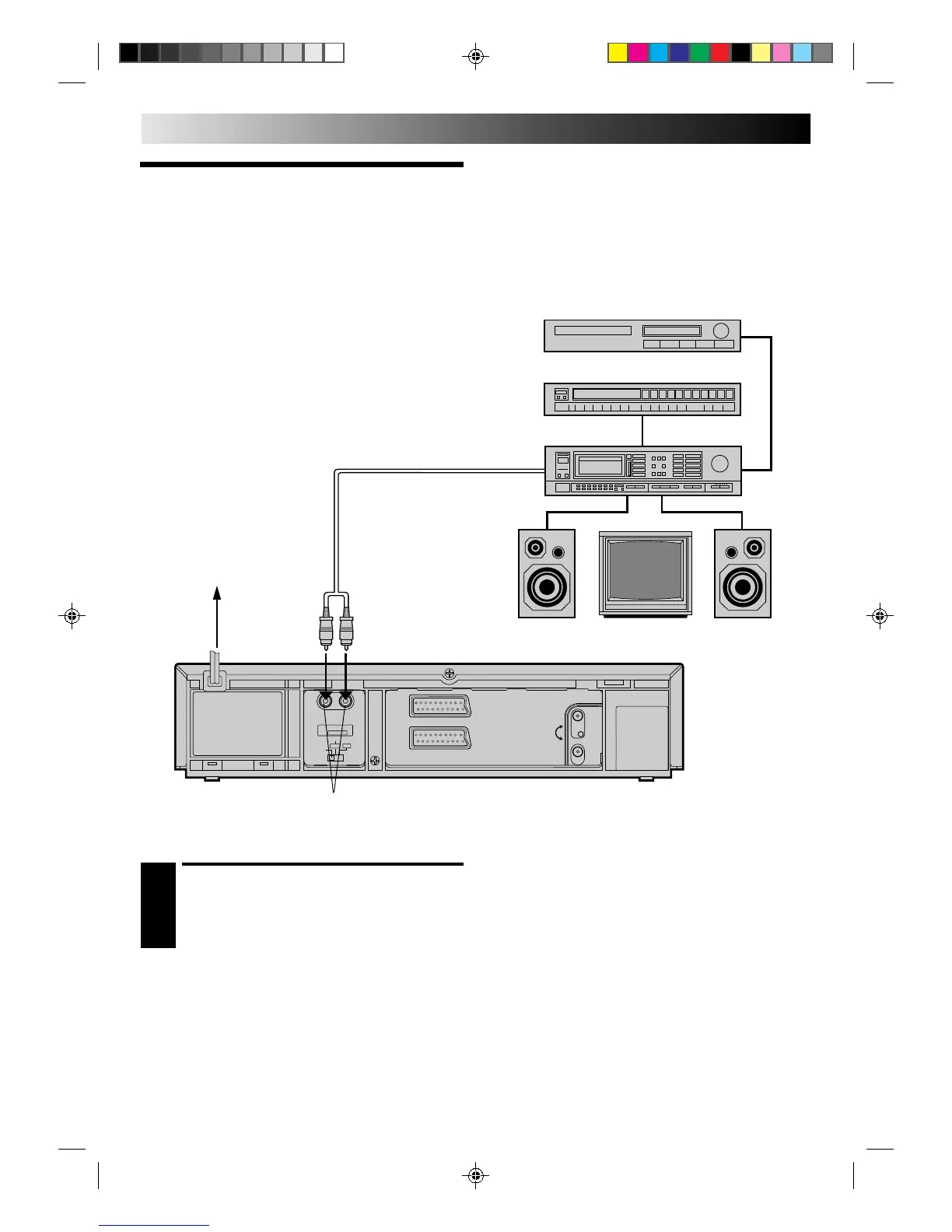

MAKE CONNECTIONS
1
Connect the AUDIO OUT L and R connectors on your
video recorder to the AUX IN or TAPE MONITOR
terminals on your stereo system’s receiver or amplifier.
NOTES:
● When connecting your recorder’s audio output connectors to
a stereo amplifier, make sure you connect L and R correctly.
● If stereo or bilingual TV broadcasts are receivable in your
area, this recorder can record them independently of the TV
set and play them back through the connected stereo system.
● When listening to sound through the connected stereo system,
turn the TV’s volume down completely.
CAUTIONS:
● This recorder has a dynamic range of more than 80 dB with
regards to its Hi-Fi audio capability. It is recommended that
you check the maximum level if you are going to listen to the
Hi-Fi audio signals through a stereo amplifier. A sudden surge
in the input level to the speakers may damage them.
● Some speakers and televisions are specially shielded to
prevent television interference. If both are of the non-shielded
type, do not place the speakers adjacent to the TV set as this
can adversely affect the video playback picture.
DECODER
AV2
AV2 SELECT
/ RF TEST


OFF

ON
AV2 IN/DECODER
RF OUT
32
40
ANT. IN
AV1 IN/OUT
R
L
AUDIO OUT
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
AUX IN or TAPE MONITOR
Television
Speaker Speaker
CD Player
FM Tuner
Stereo Amplifier
Audio Cable (not provided)
Mains outlet
AUDIO OUT
Rear View

JVC HR-A637E Specifications

Power

power requirement	AC 220 – 240 V, 50/60 Hz
power consumption	24 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	–20°C to 60°C
operating position	Horizontal only

Video/Audio

signal system	PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
signal-to-noise ratio	45 dB
horizontal resolution	250 lines

Tuner/Timer

tv channel storage capacity	99 positions
channel coverage	VHF 47 – 89/104 – 300/302 – 470MHz, UHF 470 – 862MHz
aerial output	UHF channel 36 (Adjustable 32 – 40)

Weight and Dimensions

dimensions	400 x 94 x 338 mm
weight	4.3 kg
