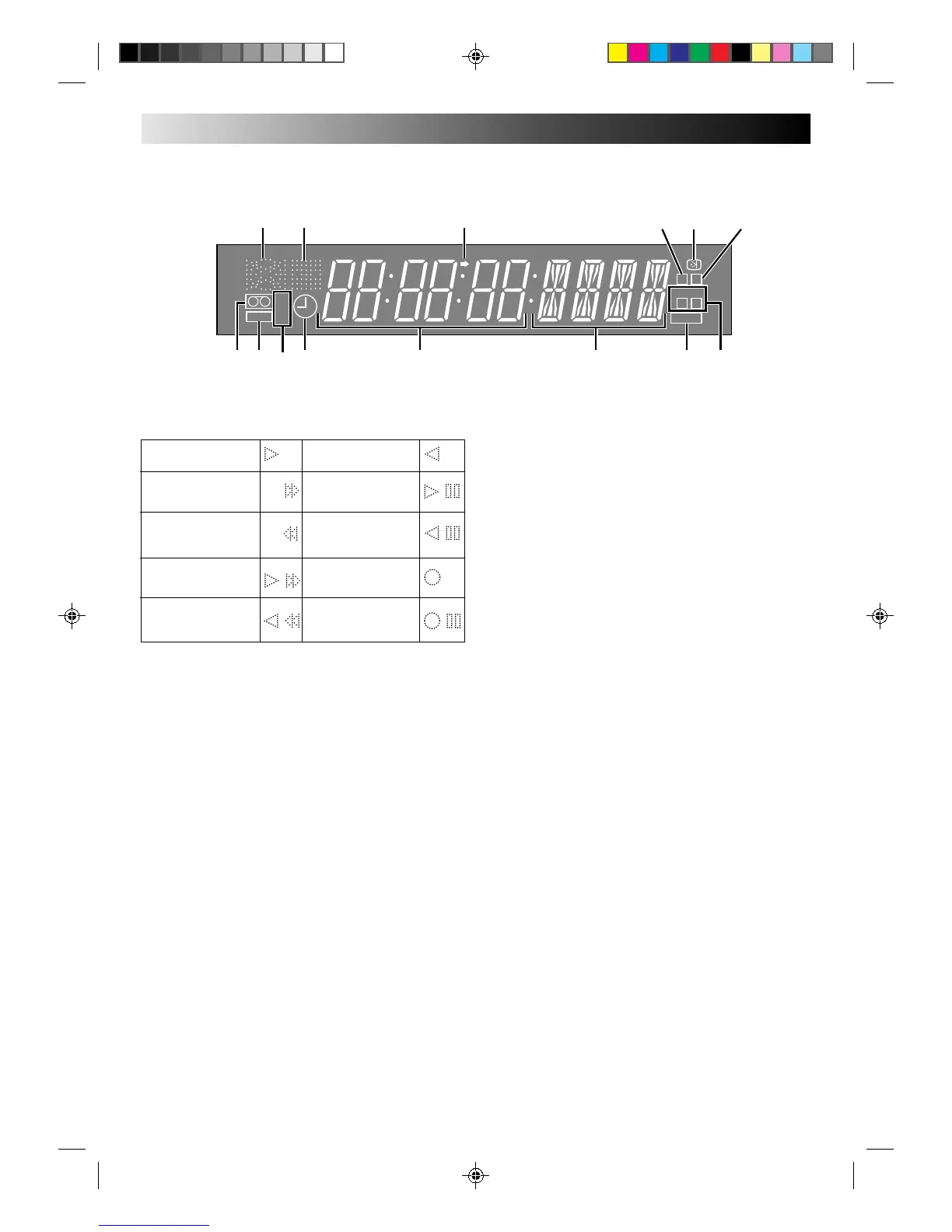

DISPLAY PANEL
1 and 2 Symbolic Mode Indicators 3 Start Time/Stop Time Indicator (Z pg. 19)
4 “DAILY” Programme Mark (Z pg. 19)
5 PDC/VPS Indicator (Z pg. 19)
6 “WEEKLY” Programme Mark (Z pg. 19)
7 “Cassette Loaded” Mark
8 Instant Timer Recording (Z pg. 16)
9 Tape Speed Indicators (Z pg. 14)
0 “Timer” Indicator (Z pg. 19)
! Clock/Counter Display (Z pg. 8)
@ Channel/Mode Display (Z pg. 7)
# VIDEO indicator (Z pg. 14) [A637EH only]
$ Audio Mode Indicator (Z pg. 12)
PLAY: REVERSE PLAY:
FF:
STILL:
FORWARD SLOW:
REW:
STILL:
REVERSE SLOW:
FF VARIABLE
RECORD:
SHUTTLE SEARCH:
REW VARIABLE
RECORD PAUSE:
SHUTTLE SEARCH:
SP
LP
EP
M
D
D
I T R
W
NORM
L
R
VIDEO
708 ! @
1
23
54
$9 #
6
INDEX (cont.)

JVC HR-A637E Specifications

Power

power requirement	AC 220 – 240 V, 50/60 Hz
power consumption	24 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	–20°C to 60°C
operating position	Horizontal only

Video/Audio

signal system	PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
signal-to-noise ratio	45 dB
horizontal resolution	250 lines

Tuner/Timer

tv channel storage capacity	99 positions
channel coverage	VHF 47 – 89/104 – 300/302 – 470MHz, UHF 470 – 862MHz
aerial output	UHF channel 36 (Adjustable 32 – 40)

Weight and Dimensions

dimensions	400 x 94 x 338 mm
weight	4.3 kg
