The AV2 IN (/DECODER) or AV1 IN/OUT connector can be
used as an input terminal for a satellite tuner. Simply connect a
satellite tuner and you can enjoy the wide variety of satellite
programming.
Connecting/
Using A
Satellite Tuner
CONNECT SATELLITE
TUNER
1
Connect an optional 21-pin SCART cable between the
satellite tuner’s Euroconnector and your recorder’s AV2
IN (/DECODER) connector.
SELECT INPUT MODE
(A637EH only)
2
Set the AV2 SELECT switch to “AV2”.
PREPARE TO WATCH A
SATELLITE PROGRAMME
3
Select the appropriate channel on the satellite tuner.
Then set the auxiliary mode by pressing NUMBER key
“0” or TV PROG. on the remote control until “AU2”
appears on the recorder’s front display panel.

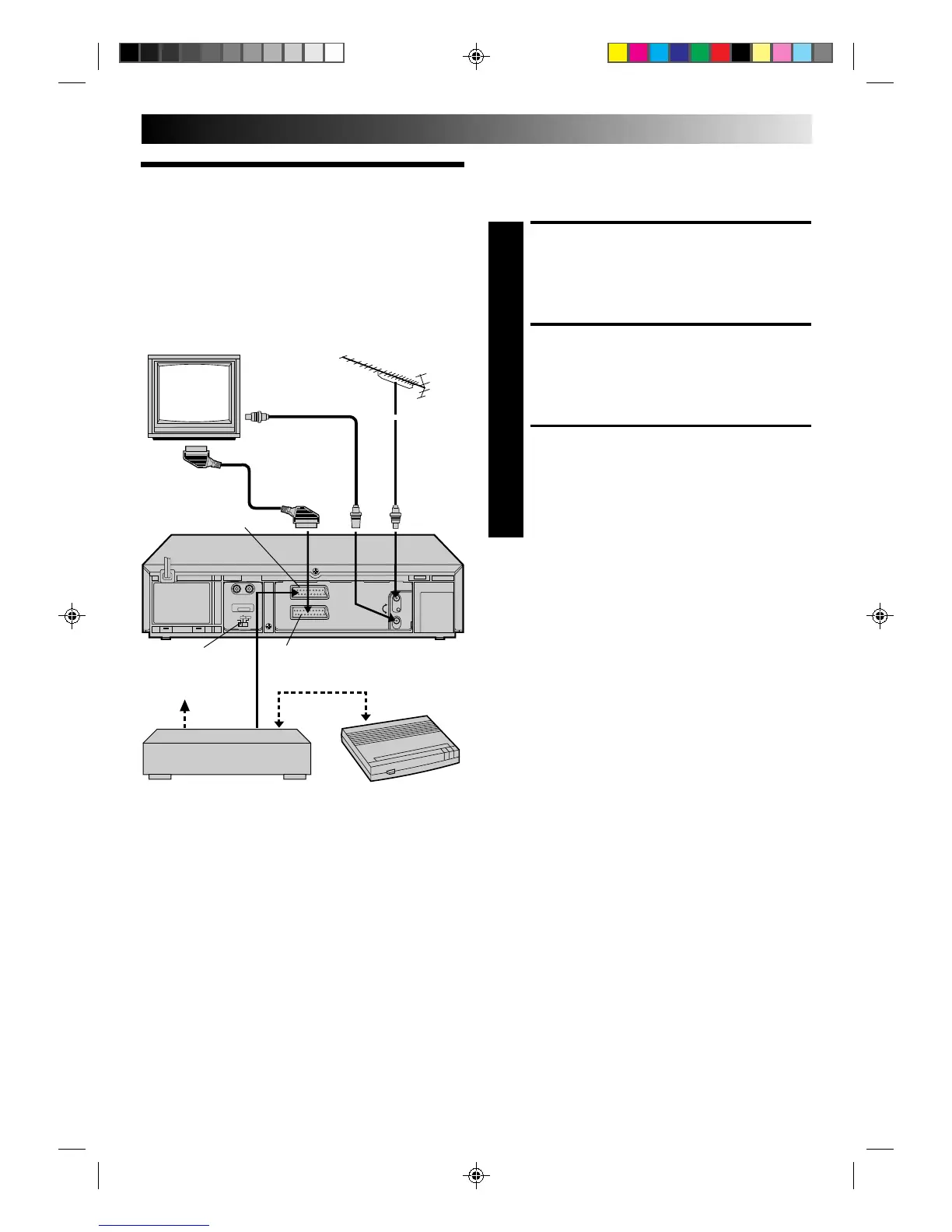

TV Receiver
RF Cable
(provided)
TV Aerial
Cable
Decoder
Satellite antenna
Satellite tuner
AV2 SELECT switch
AV2 IN (/DECODER)
NOTE:
When connecting a satellite tuner together with a decoder . . .
. . . first connect the decoder to the decoder input of the
satellite tuner, then connect the satellite tuner’s output to
the recorder’s AV2 IN (/DECODER) connector.
Refer to the instruction book for the satellite tuner and
decoder.
AV1 IN/OUT
Rear View

JVC HR-A637E Specifications

Power

power requirement	AC 220 – 240 V, 50/60 Hz
power consumption	24 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	–20°C to 60°C
operating position	Horizontal only

Video/Audio

signal system	PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
signal-to-noise ratio	45 dB
horizontal resolution	250 lines

Tuner/Timer

tv channel storage capacity	99 positions
channel coverage	VHF 47 – 89/104 – 300/302 – 470MHz, UHF 470 – 862MHz
aerial output	UHF channel 36 (Adjustable 32 – 40)

Weight and Dimensions

dimensions	400 x 94 x 338 mm
weight	4.3 kg
