4 EN

INSTALLING YOUR NEW RECORDER (cont.)
SET TV CHANNEL
3
Set your TV to the video channel (UHF channel 36).
Two white bars appear on screen vertically.
● Tune the TV until the bars are as clear as they can be.
● Your TV should be set to the channel designated for
use with a video recorder, or to a spare channel if
there is not a specified video channel on your TV.
RESET OUTPUT MODE
4
Return the RF TEST switch to OFF.
NOTES:
● If CH36 is occupied by a local station, adjust the RF output
channel adjustment screw to use another channel between
CH32 and CH40 instead.
● If some interference noise is continually seen on the screen,
consult your JVC dealer.
SELECT INPUT MODE
1
Set the AV2 SELECT switch to “DECODER”.
CONNECT DECODER
2
Connect your recorder’s AV2 IN/DECODER connector
to the decoder’s Euroconnector using a 21-pin SCART
cable.
SET TUNER
3
Follow the procedure starting on page 7.
The AV2 IN/DECODER connector can be used as an input
terminal for an external decoder (descrambler). Simply connect
a decoder and you can enjoy the variety of programming that is
available through scrambled channels.

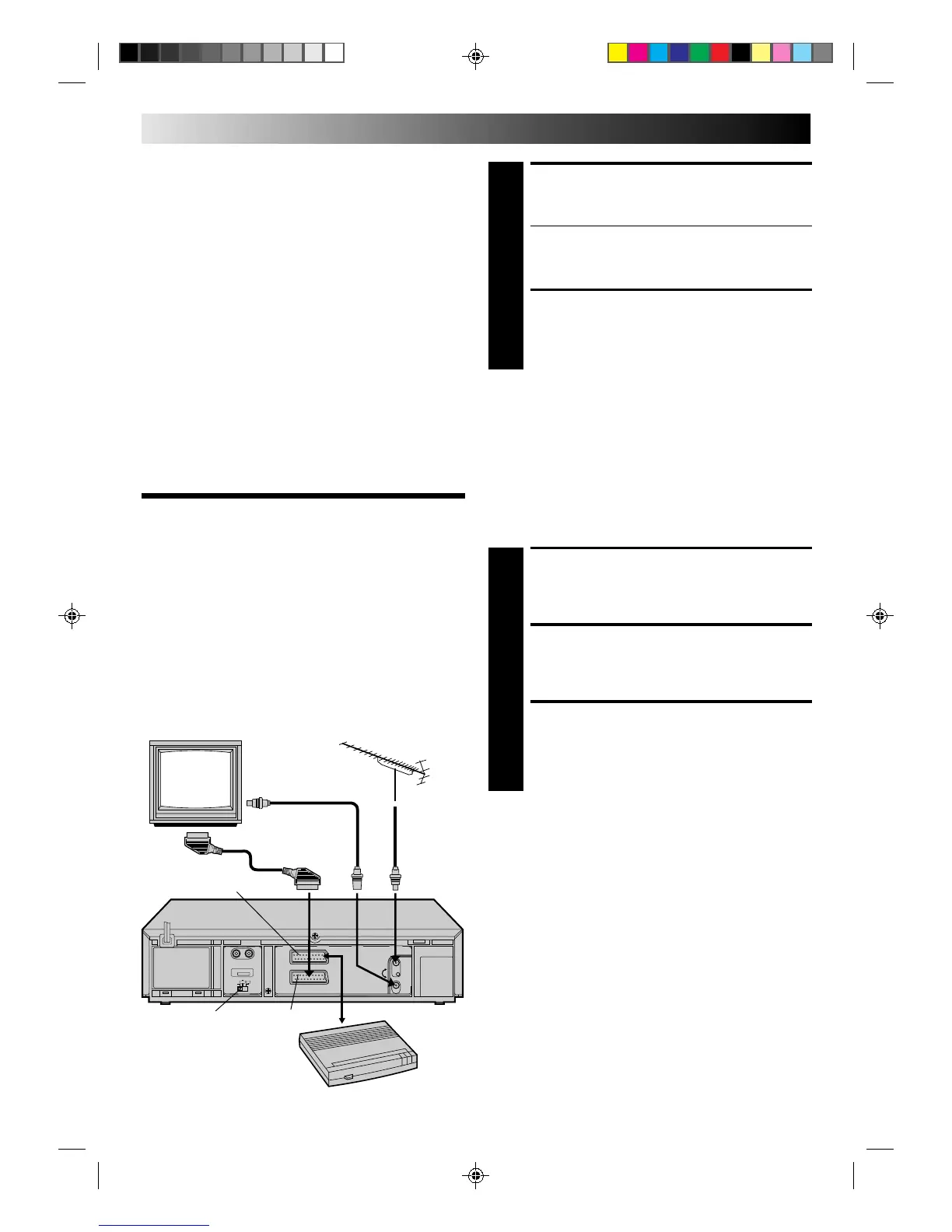

Connecting/
Using A
Decoder
(A637EH only)
TV Receiver
AV2 IN/DECODER
AV1 IN/OUTAV2 SELECT switch
Decoder
TV Aerial
Cable
RF Cable
(provided)
Rear View

JVC HR-A637E Specifications

Power

power requirement	AC 220 – 240 V, 50/60 Hz
power consumption	24 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	–20°C to 60°C
operating position	Horizontal only

Video/Audio

signal system	PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
signal-to-noise ratio	45 dB
horizontal resolution	250 lines

Tuner/Timer

tv channel storage capacity	99 positions
channel coverage	VHF 47 – 89/104 – 300/302 – 470MHz, UHF 470 – 862MHz
aerial output	UHF channel 36 (Adjustable 32 – 40)

Weight and Dimensions

dimensions	400 x 94 x 338 mm
weight	4.3 kg
