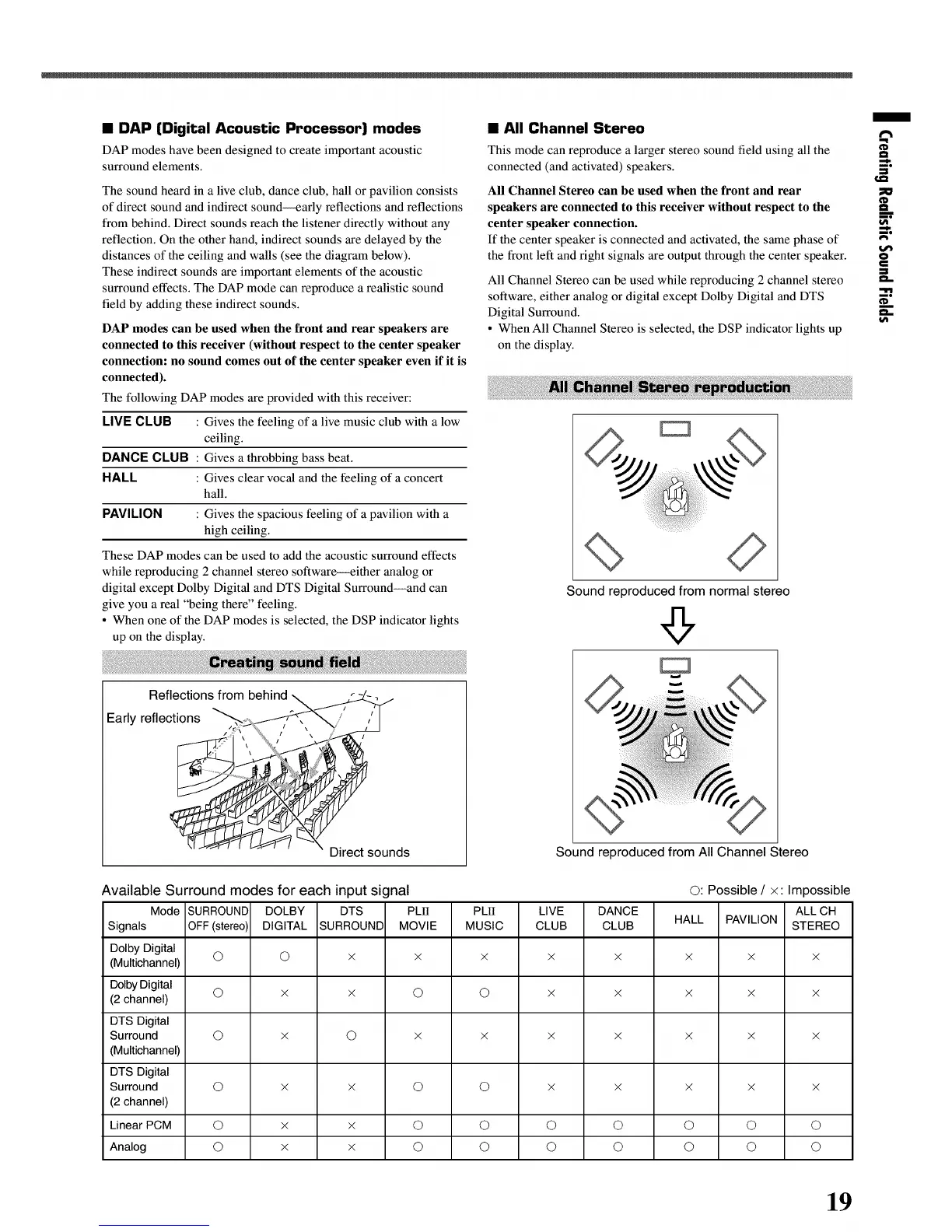

• DAP (Digital Acoustic Processor) modes
DAP modes have been designed to create important acoustic
surround elements.
The sound heard in a live club, dance club, hall or pavilion consists
of direct sound and indirect sound--early reflections and reflections
from behind. Direct sounds reach the listener directly without any
reflection. On the other hand, indirect sounds are delayed by the
distances of the ceiling and walls (see the diagram below).
These indirect sounds are important elements of the acoustic
surround effects. The DAP mode can reproduce a realistic sound
field by adding these indirect sounds.
DAP modes can be used when the front and rear speakers are
connected to this receiver (without respect to the center speaker
connection: no sound comes out of the center speaker even if it is
connected).
The following DAP modes are provided with this receiver:
LIVE CLUB Gives the feeling of a live music club with a low
ceiling.
DANCE CLUB Gives a throbbing bass beat.
HALL Gives clear vocal and the feeling of a concert
hall.
PAVILION Gives the spacious feeling of a pavilion with a
high ceiling.
These DAP modes can be used to add the acoustic surround effects
while reproducing 2 channel stereo software--either analog or
digital except Dolby Digital and DTS Digital Surround--and can
give you a real "being there" feeling.
° When one of the DAP modes is selected, the DSP indicator lights
up on the display.
Reflections from behind
Early reflections
Direct sounds
• All Channel Stereo
This mode can reproduce a larger stereo sound field using all the
connected (and activated) speakers.
All Channel Stereo can be used when the front and rear
speakers are connected to this receiver without respect to the
center speaker connection.
If the center speaker is connected and activated, the same phase of
the front left and right signals are output through the center speaker.
All Channel Stereo can be used while reproducing 2 channel stereo
software, either analog or digital except Dolby Digital and DTS
Digital Surround.
° When All Channel Stereo is selected, the DSP indicator lights up
on the display.
Sound reproduced from normal stereo
Sound reproduced from All Channel Stereo
/
¢D
gl
mo
¢D
a.
no
U,i
mo
o
cg
L
mo
L
Available Surround modes for each input signal ©: Possible/×:Impossible
Mode SURROUND DOLBY DTS PLII PLII LIVE DANCE ALL CH
HALL PAVILION
Signals OFF (stereo) DIGITAL SURROUND MOVIE MUSIC CLUB CLUB STEREO
Dolby Digital O O x x x x x x x x
(Multichannel)
Dolby Digital O x x O O x x x x x
(2 channel)
DTS Digital
Surround O x O x x x x x x x
(Multichannel)
DTS Digital
Surround O x x O O x x x x x
(2 channel)
Linear PCM O x x O O O O O O O
Analog O x x O O O O O O O
19
