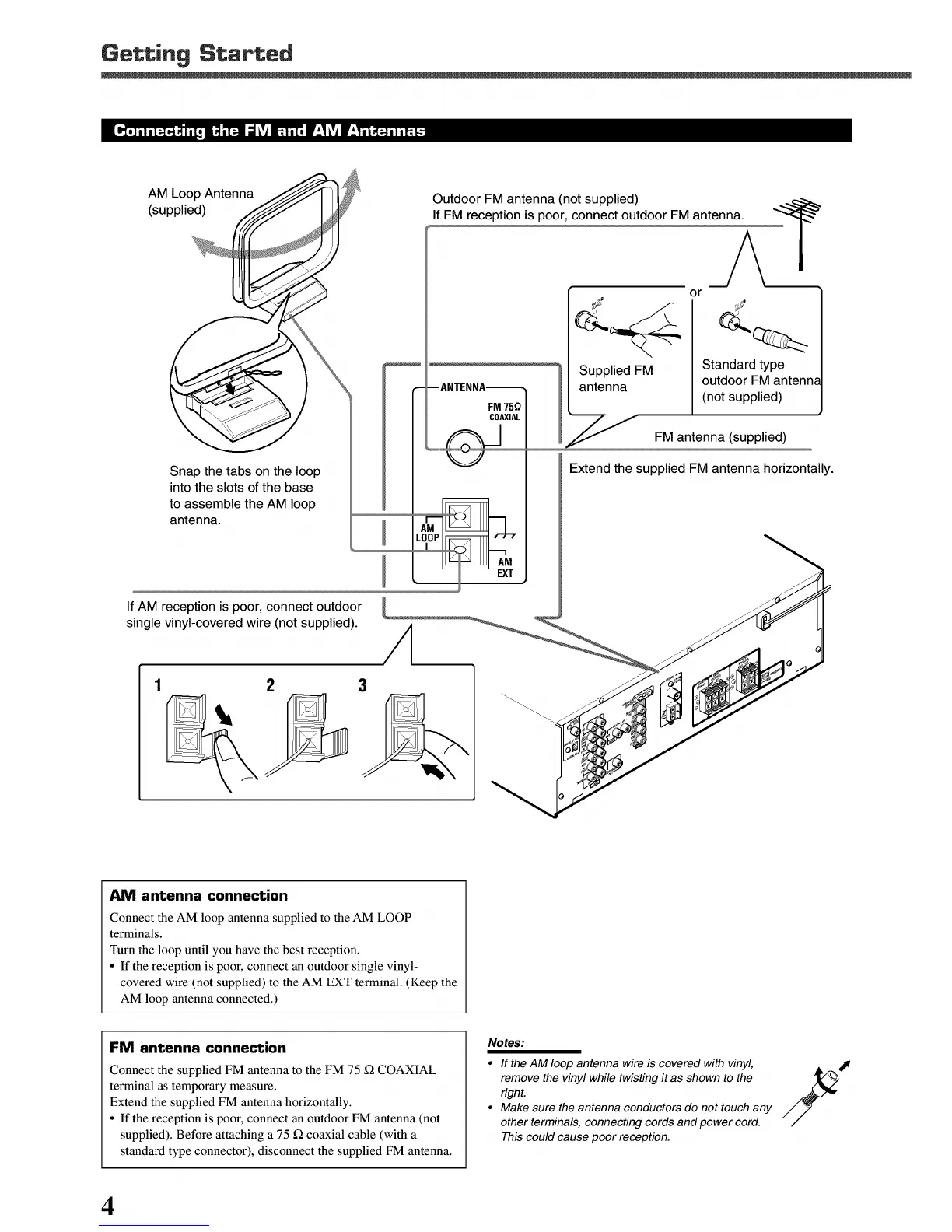

Getting Started
AM Loop Antenna
(supplied)
Outdoor FM antenna (not supplied)
If FM reception is poor, connect outdoor FM antenna.
or
Supplied FM
antenna
Standard type
outdoor FM antenn_
(not supplied)
Y FM antenna (supplied)
Extend the supplied FM antenna horizontally.
If AM reception is poor, connect outdoor
single vinyl-covered wire (not supplied).
AM antenna connection
Connect the AM loop antenna supplied to the AM LOOP
terminals.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. (Keep the
AM loop antenna connected.)
FM antenna connection
Connect the supplied FM antenna to the FM 75 f_ COAXIAL
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 f_ coaxial cable (with a
standard type connector), disconnect the supplied FM antenna.
Notes:
• If the AM loop antenna wire is covered with vinyl, A_ J
remove the vinyl while twisting it as shown to the
right.
• Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord.
This could cause poor reception.
