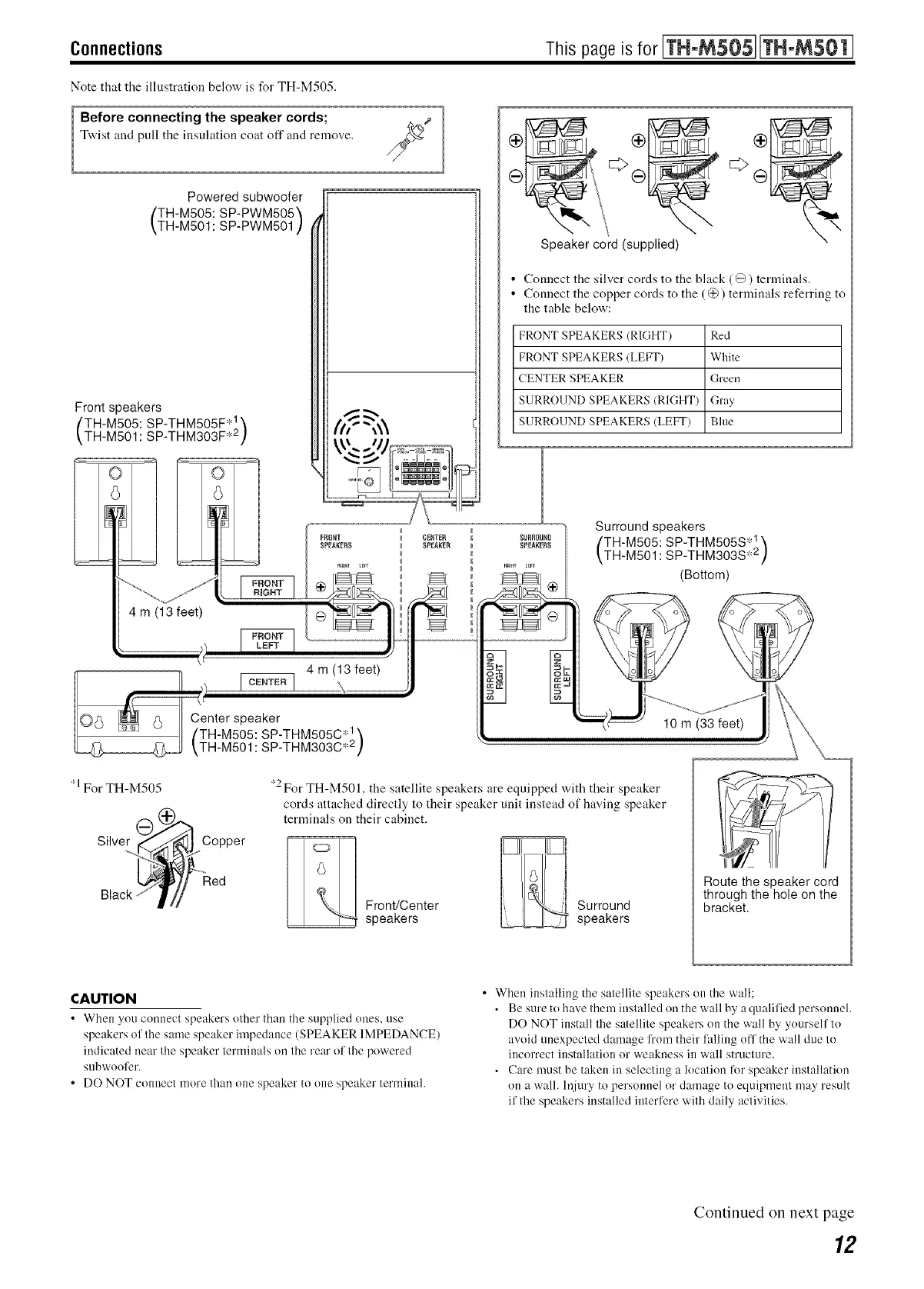

Connections This pageisfor [TH-Ms05JJTH-MS01]
Note that the illustration below is for TH-M505.
Before connecting the speaker cords;
Twist and pull the insulation coat off and remove.
Powered subwoofer
TH-M505: SP-PWM505_
TH-M501 : SP-PWM501 ]
Front speakers
TH-M505: SP-THM505F .1 \
TH-M501: SP-THM303F .2 )
c Y i
4 m (13 feet)
' k(
Speaker cord (supplied)
• Connect the silver cords to the black (@) terminals.
• Connect the copper cords to the (@) terminals referring to
the table below:
FRONT SPEAKERS (RIGHT) Red
FRONT SPEAKERS (LEFT) White
CENTER SPEAKER Green
SURROUND SPEAKERS (RIGHT) Gray
SURROUND SPEAKERS (LEFT) Blue
' FRORT
SPEAKERS
4 m (13 feet)
u
Center speaker
TH-M505: SP-THM505C .1 \
TH-M501: SP-THM303C .2 )
Surround speakers
TH-M505: SP-THM505S .1 \
TH-M501: SP-THM303S .2 )
(Bottom)
1For TH-M505
Silver
Copper
Red
_2For TH-M501, the satellite speakers are equipped with their speaker
cords attached directly to their speaker unit instead of having speaker
terminals on their cabinet.
FronVCenter Surround
speakers speakers
Route the speaker cord
through the hole on the
bracket.
CAUTION
• When you connect speakers other than the supplied ones, use
speakers of the stone speaker impedance (SPEAKER IMPEDANCE)
indicated near the speaker terminals on the rear nl the powered
subwoofer.
• DO NOT connect more than one speaker tn one speaker terminal.
• When installing the satellite speakers on the wall;
• Be sure tn have them installed on the wall by a qualified personnel.
DO NOT install the satellite speakers on the wall hy yourself to
avoid unexpected damage li'om their falling off the wall due to
incorrect installation nr weakness in wall structure.
• Care must be taken in selecting a location R)r speaker installation
on a wall. lnjury tn personnel or damage to equipment may result
if the speakers installed interfere with daily activities.
Continued on next page
12
