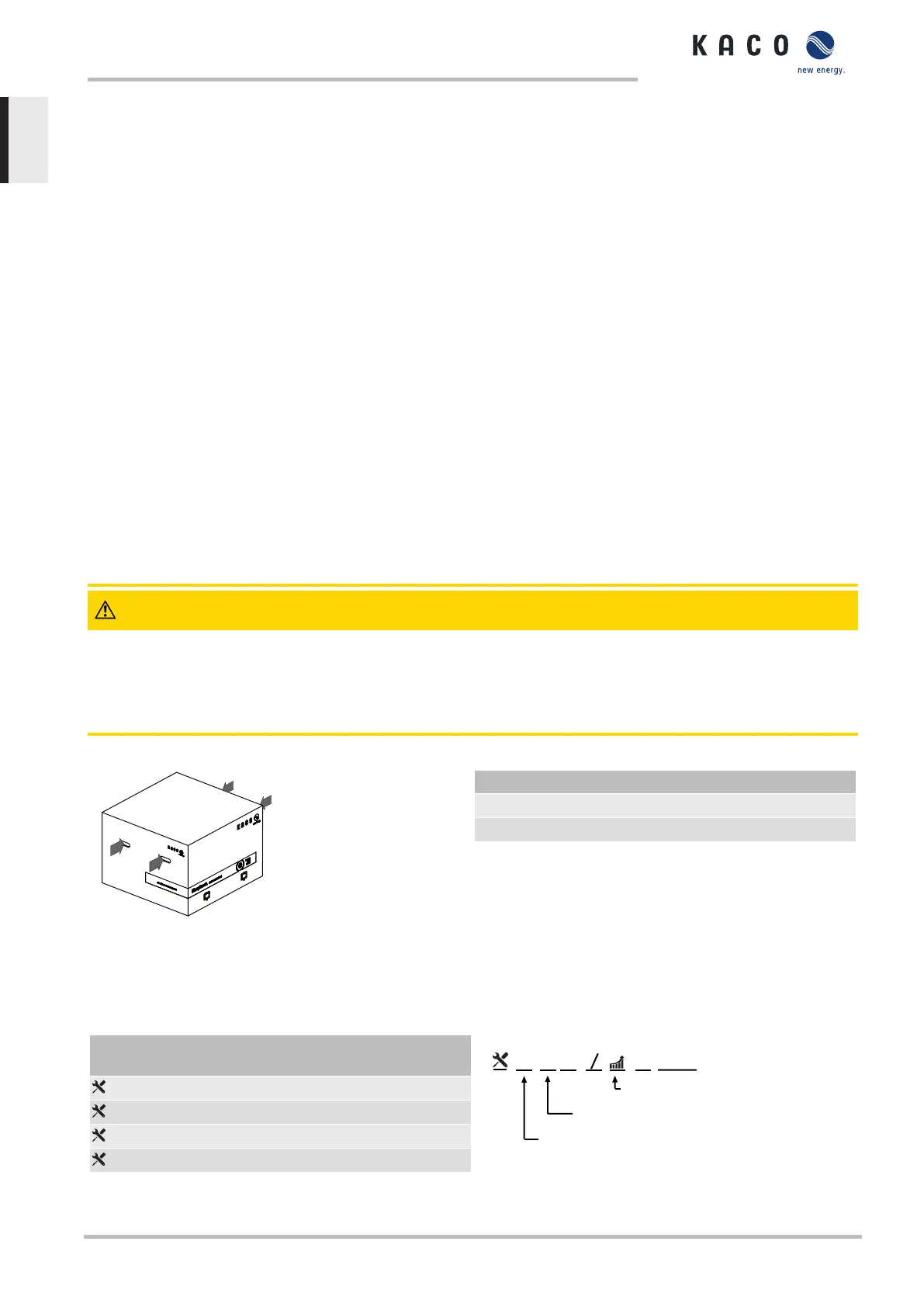

5 Transportation and Delivery
Every product leaves our factory in perfect electrical and mechanical condition. Special packaging en-
sures that the devices are transported safely. The shipping company is responsible for any transport
damage that occurs.
5.1 Scope of delivery
Inverter
Mount
Installation kit
Manual [online] / operating instructions [multi-language]
Checking the scope of supply
1. Inspect your device thoroughly.
2. Immediately notify the shipping company in case of the following:
Damage to the packaging that indicates that the device may have been damaged.
Obvious damage to the device.
3. Send a damage report to the shipping company immediately.
4. The damage report must be received by the shipping company in writing within 6 days following
receipt of the device. We will be glad to help you if necessary.
5.2 Transporting the unit
CAUTION
Hazard due to impact; risk of breakage to the device!
1. Pack the device securely for transport.
2. Transport the device using the intended carrying handles of the packaging box.
3. Do not expose the device to any shocks.
For safe transportation of the product, use the hand recesses in the carton.
Fig.8: Transporting the device
Packaging Folding cardboard box
Height x width x depth 31,1x29,9x21,6 inch
Total weight 182 Ib
5.3 Installation tools
The abbreviations listed in the following table are used when referring to the tools and tightening
torques to be used in all assembly/installation/maintenance and disassembly instructions.
Abbreviations (en) Contour of the
connecting element
W External hex
A Internal hex
T Torx
S Slot
Tab.2: Tool abbreviations legend
Outer contour
Tightening torque
Spanner size or number
in-Ibs
Fig.9: Presentation format
5 | Transportation and Delivery Manual
KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 105 TL3 KACO blueplanet 110 TL3
KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3 KACO blueplanet 155 TL3
KACO blueplanet 165 TL3
Page 18
EN-US
