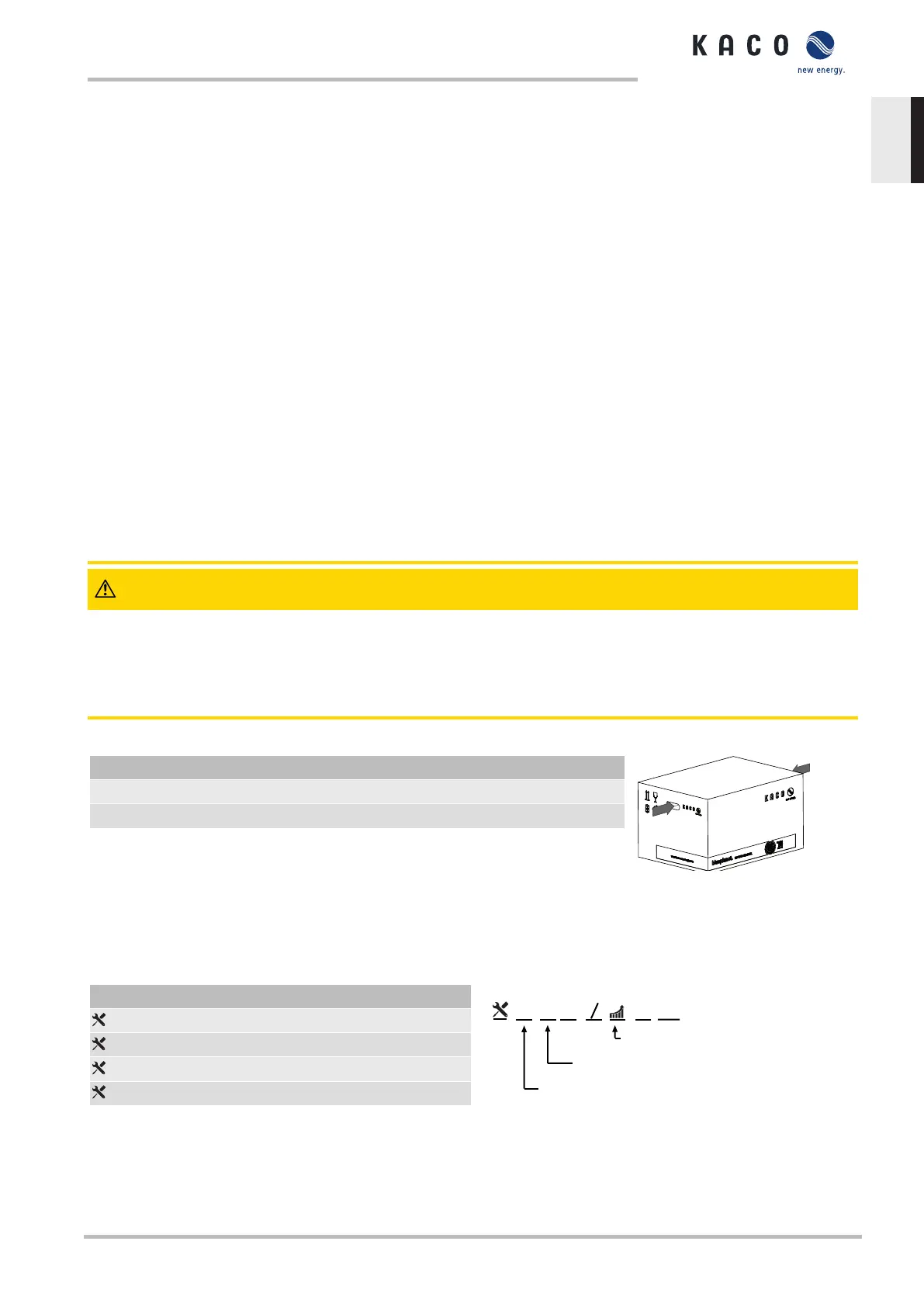

5 Transportation and Delivery
Every product leaves our factory in perfect electrical and mechanical condition. Special packaging ensures that
the devices are transported safely. The shipping company is responsible for any transport damage that occurs.
5.1 Scope of delivery
– Inverter
– Mount
– Installation kit
– Manual [online] / operating instructions [multi-language]
Check the equipment included
1. Inspect the device thoroughly.
2. Immediately notify the shipping company in case of the following:
– Damage to the packaging that indicates that the device may have been damaged.
– Obvious damage to the device.
3. Send a damage report to the shipping company immediately.
4. The damage report must be received by the shipping company in writing within six days following receipt
of the device. We will be glad to help you if necessary.
5.2 Transporting the device
CAUTION
Hazard due to impact; risk of breakage to the device!
1. Pack the device securely for transport.
2. Transport the device using the intended carrying handles of the packaging box.
3. Do not expose the device to any shocks.
For safe transportation of the product, use the hand recesses in the carton.
Packaging Folding cardboard box
Packaging size 390 x 510 x 66 mm
Total weight, including packaging 35.2 kg
Fig.6: Transporting the device
5.3 Installation tool
The codes given in the table below are used in all usage instructions for assembly/installation/maintenance and
disassembly for the tools and tightening torques being used.
Code (s) Shape of the connector
W External hexagon
A Internal hexagon
T Torx
S Slot
Tab.2: Key and description of tool codes
Outer contour
Tightening torque
Spanner size or number
Nm
Fig.7: Form pattern
Manual Transportation and Delivery | 5
KACO blueplanet 3.0 TL3 KACO blueplanet 4.0 TL3 KACO blueplanet 5.0 TL3 KACO blueplanet 6.5 TL3 KACO
blueplanet 7.5 TL3 KACO blueplanet 8.6 TL3 KACO blueplanet 9.0 TL3 KACO blueplanet 10.0 TL3
Page 15
EN
