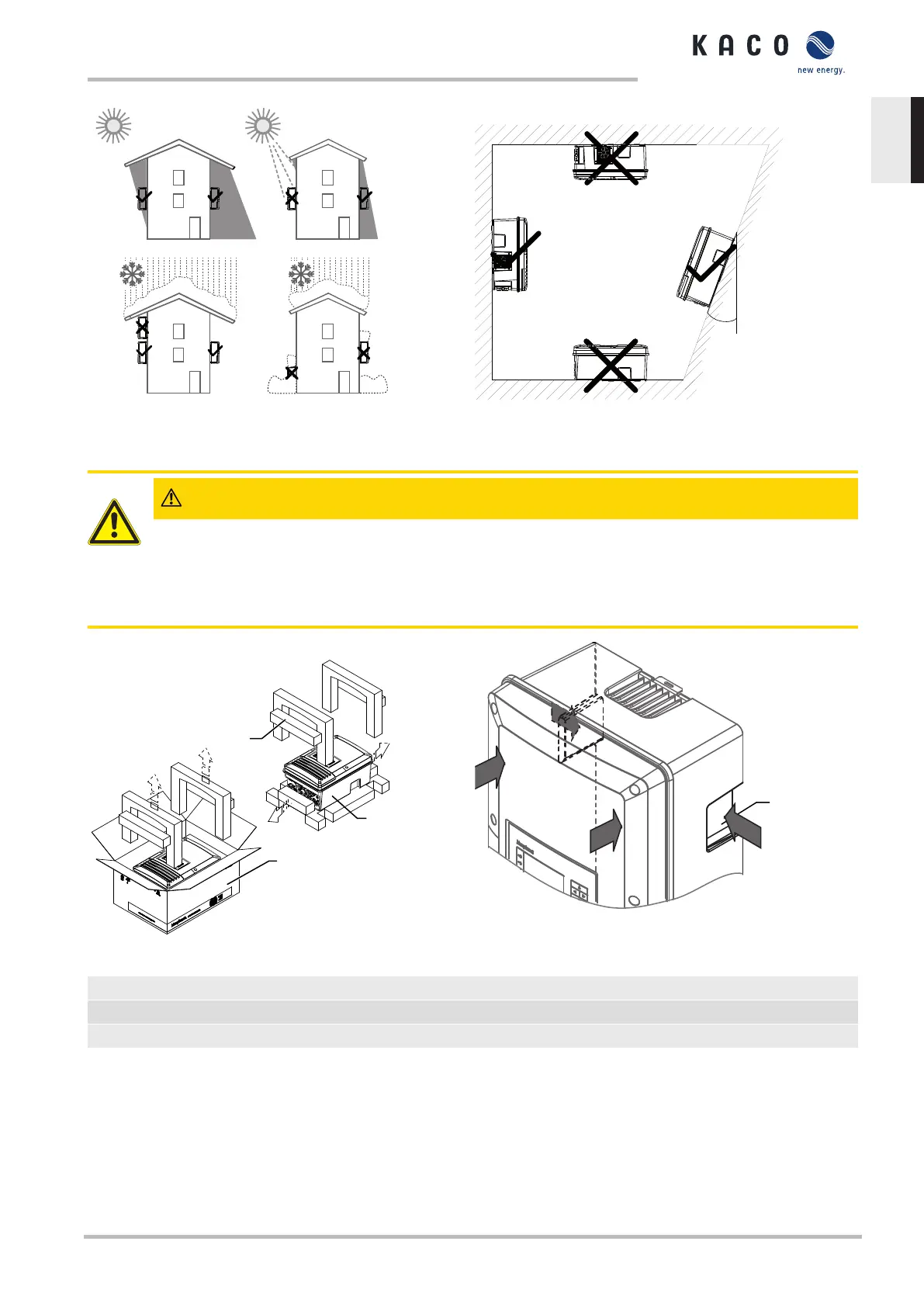

Fig.8: Device for outdoor installation
<20°
Fig.9: Permissible installation location
6.2 Unpacking the device
CAUTION
Risk of injury caused by excessive physical strain
Lifting the device, for transport, relocation and assembly, can result in injuries (e.g. back injuries).
1. Only lift the device using the openings provided.
2. The device must be transported and installed by at least 2 persons.
1
2
3
Fig.10: Unpacking the unit
4
Fig.11: Lift the unit
Key
1 Packaging 3 Device
2 Protective packaging 4 Grip recesses
↻ The device is transported to the installation location.
1. Loosen packaging tape from cardboard box.
2. Open carton at the front.
3. Remove installation material and documentation.
4. Pull up top protective packaging to remove.
5. Remove device from the packaging.
6. Place the protective packaging back into the carton.
Manual Assembly and preparation | 6
KACO blueplanet 3.0 TL3 KACO blueplanet 4.0 TL3 KACO blueplanet 5.0 TL3 KACO blueplanet 6.5 TL3 KACO
blueplanet 7.5 TL3 KACO blueplanet 8.6 TL3 KACO blueplanet 9.0 TL3 KACO blueplanet 10.0 TL3
Page 17
EN
