Interfaces
RS485 connection type spring-type terminal
RS485 terminal cable cross-section 0.25 - 1.5 mm²
Ethernet connection type RJ45
Torque for cable fitting 4 (M25) 1.5 (M16) Nm

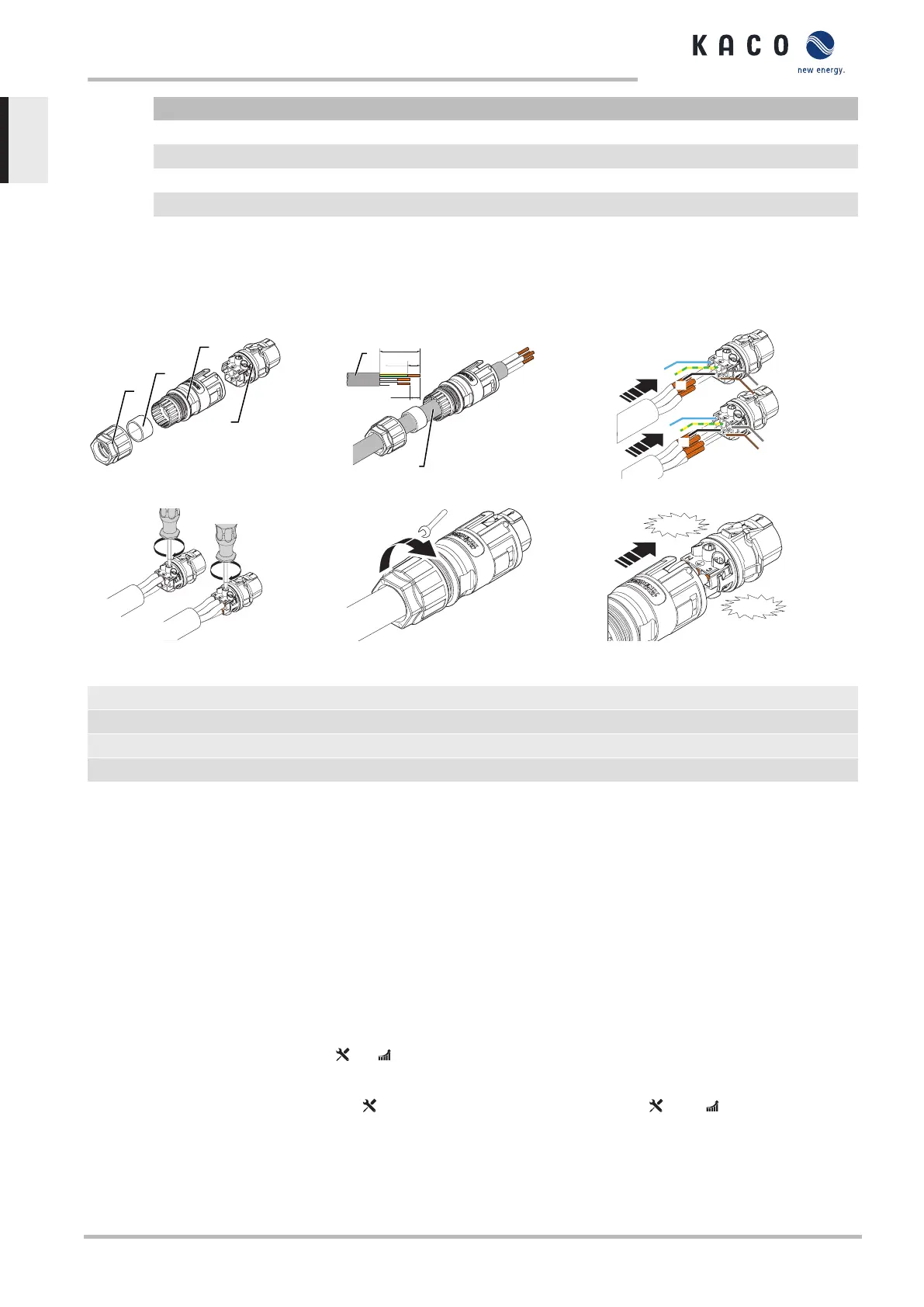

7.3 Connecting the device to the power grid
7.3.1 Configuring the AC connection plug
Fig.18: AC connection plug
0,47 In
(12mm)
1,97 In
(50mm)
0,31 In
(8mm)
Fig.19: Strip the insulation from the cable
Fig.20: Connect wires to the contact carrier
Fig.21: Tighten screws on the housing
Fig.22: Tighten the cable screw fitting
Fig.23: Press contact carrier into the hous-
ing
Key
1 Cable fitting 4 Contact carrier
2 Seal 5 Line
3 Housing 6 Cable lengths
↻ Connection area opened.
1. Slide the cable fitting over the cable.
2. Select seal according to cable diameter used.
3. Slide the housing and seal over the cable.
4. Remove the insulation from the cable. [sl. 50 mm]
5. Shorten the wires N, L1 by 8 mm if a single-phase connection is present or shorten the wires N, L1, L2, L3 by the same
length in case of a 3-phase connection.
6. Strip the wires N, L1 in case of a single-phase connection or N, L1, L2, L3 in case of a 3-phase connection by 12 mm.
7. Flexible wires must be fitted with wire sleeves in accordance with DIN 46228.
8. Insert wires into the contacts in accordance with the markings on the contact carrier.
9. Tighten screws on contact carrier. [ S_2/ 1 Nm]
10.Press contact carriers into the housing with an audible "click".
11.Secure the housing with a screwdriver [ W_29] and tighten the cable screw fitting. [ W_29/ 4 Nm]
ð Make the electrical connections.
7 | Installation Manual
KACO blueplanet 3.0 TL3 KACO blueplanet 4.0 TL3 KACO blueplanet 5.0 TL3 KACO blueplanet 6.5 TL3 KACO
blueplanet 7.5 TL3 KACO blueplanet 8.6 TL3 KACO blueplanet 9.0 TL3 KACO blueplanet 10.0 TL3
Page 22
EN
