Kaco blueplanet 3.0 TL3 M2 WM OD IIG0 User Manual

1.4 Identification
You will find the name plate with the following data for service and other require-
ments specific to installation on the right side panel of the product:
– Product name
– Part no.
– Serial number
– Date of manufacture
– Technical data
– Disposal information
– Certification marking, CE marking.
KACO new energy
Carl-Zeiss-Straße1
74172 Neckarsulm
Made in Germany
KACO blueplanet 10.0 TL3 M2 WM OD IIG0
Part number 1001460
Serial number 00000000012345678
Year
Q3 / 19
Input
Vmax PV / lsc PV (max) / Inom PV 1000 Vdc /2x 16 A /2x 11 A
V-MPP at Pnom / V- range 470 V - 800 V / 200 V - 950 V
Output
Nominal voltage
220 V / 380 V (3/N/PE)
230 V / 400 V (3/N/PE)
240 V / 415 V (3/N/PE)
Voltage range continuous operation 180 V - 277 V (Ph-N)
Current (maximum continuous) 3 x 15,5 A
Frequency range 45 Hz - 65 Hz
Output
Power
Snom at 230 V Unom 10000 VA
Reactive power cos phi 0-95 % Snom 1 - 0,3 ind/cap
Environ-
ment
Temperature range -25°C...+60°C/-13°F...+140°F
Protection class / Ingress protection I / IP65
ARC fault circuit protection
none
Interface protection according to country
specific requirements, details see manual
No galvanic separation / UTILITY-INTERCONNECTED

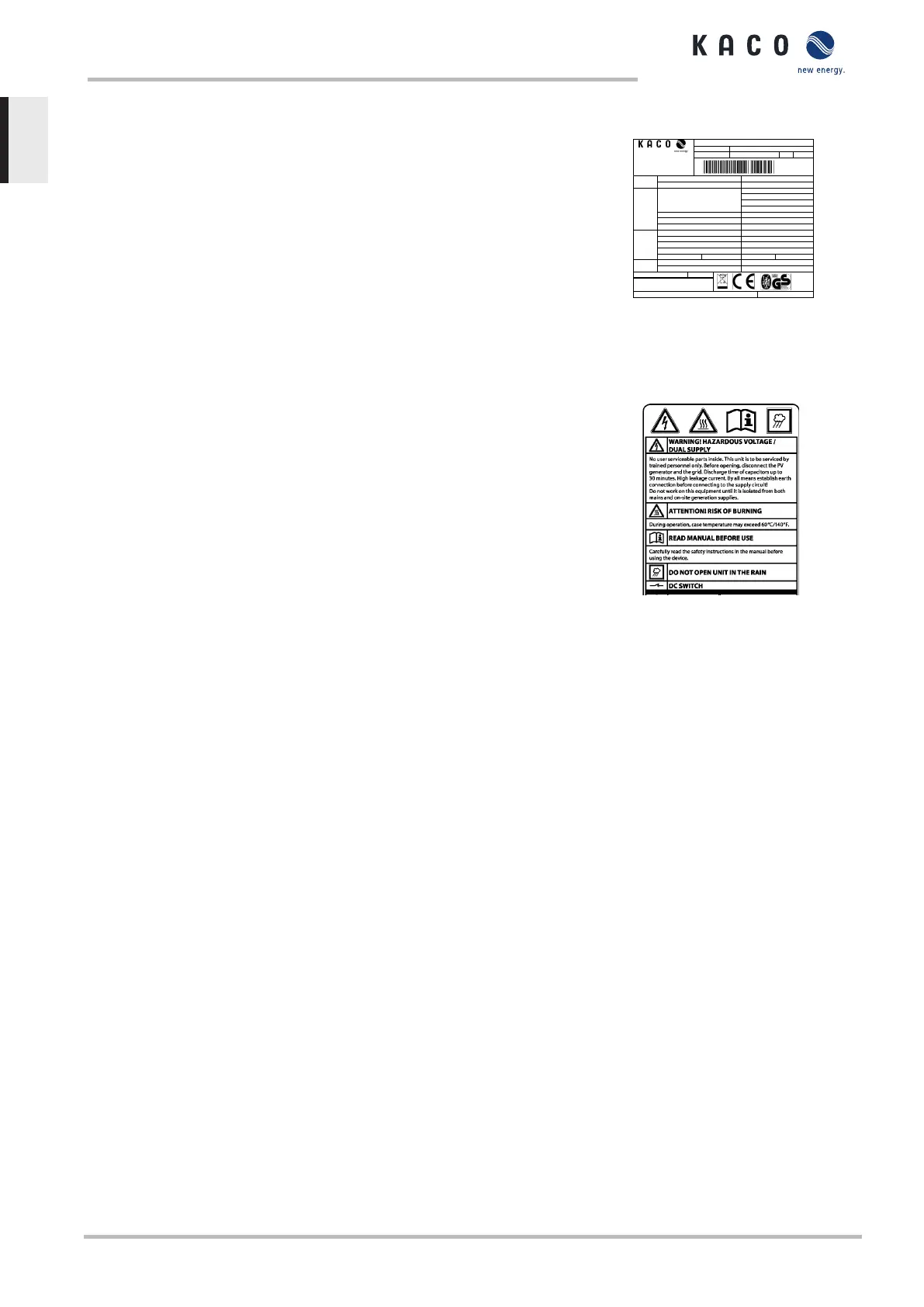

Fig.1: Name plate
1.5 Warnings on the device
A warning sticker is affixed to the device. Read the warnings carefully.
Do not remove the sticker. If the sticker is missing or is illegible, please contact a
KACO representative or distributor.
– Article number: 3009476
Fig.2: Warning sticker
1.6 Target group
All activities described in the document may only be carried out by specially trained personnel with the follow-
ing qualifications:
– Knowledge about how an inverter functions and operates
– Knowledge of the Modbus specifications
– Knowledge of the SunSpec Modbus specifications
– Training in the handling of hazards and risks during the installation and operation of electrical devices and
systems.
– Education concerning the installation and start-up of electrical units and plants.
– Knowledge of applicable standards and directives.
– Knowledge and adherence to this document with all safety notices.
1 | General information Manual
KACO blueplanet 3.0 TL3 KACO blueplanet 4.0 TL3 KACO blueplanet 5.0 TL3 KACO blueplanet 6.5 TL3 KACO
blueplanet 7.5 TL3 KACO blueplanet 8.6 TL3 KACO blueplanet 9.0 TL3 KACO blueplanet 10.0 TL3
Page 6
EN

Kaco blueplanet 3.0 TL3 M2 WM OD IIG0 Specifications

General

Brand	Kaco
Model	blueplanet 3.0 TL3 M2 WM OD IIG0
Category	Inverter
Language	English
