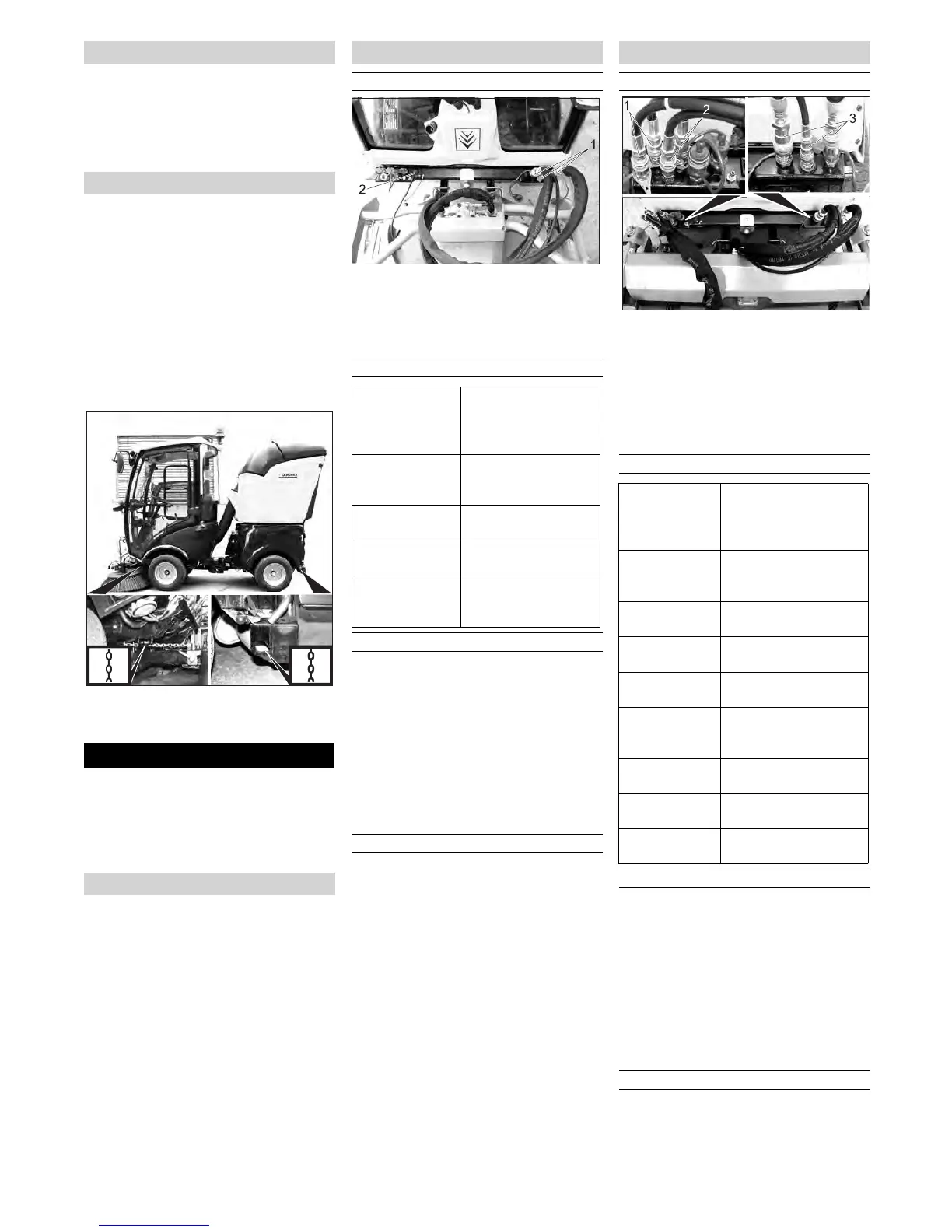

Kärcher MIC 34C User Manual

- 12
 If frost is expected, check whether there
is enough anti-frosting agent in the
cooling water.
 Empty the water reservoir and the pipe
system; refer to chapter "Maintenance
Work/Empty water reservoir") (option).
Caution
Risk of damage! Never attach the appli-
ance to the brush system or tow it (for
sweepers).
몇 Warning
Risk of injury and damage! Observe the
weight of the appliance when you transport
it.
Risk of accident: The appliance must be
secured against slippage during transport.
 Switch the appliance off and lock the
emergency brake.
 Secure the appliance with tension
straps at the fastening eyes on the left
and the right.
Here, only additional information for the op-
eration with the upgrade kits with the MC 50
/ MIC 34C is indicated. Prior to installing
and operating the upgrade kit you must
read the separate instructions and the safe-
ty notes of the upgrade kit.
 With appliance carrier: Raise the work-
ing equipment: in order to do so, push
lever B towards the back.
 Bring lever E in the E2 position.
Suction port is locked
1 Hydraulic couplings main PTO
Hydraulic hoses, knife drive
2 Socket outlet E1
Cable for cutting height adjustment
– The balance weight (option) must be at-
tached to the rear of the machine for
driving on public roads.
– Set the motor rpm to high.
Note:
The wear on the ground can be reduced by
using the upgrade kit for grass tyres (2.851-
089.0).
Removing the waste container/fresh water
tank will increase the driving stability and
the driver's view.
 Lower the working appliance and the
suction opening.
 Clean the top surface of the suction
opening with compressed air (for
sweepers).
1 Hydraulic couplings AUX2
Hydraulic hoses for rear ejector
(marked with cable ties)
2 Hydraulic couplings AUX1
Hydraulic hoses, cutting height
3 Hydraulic couplings main PTO
Hydraulic hoses, knife drive
– The balance weight (option) must be at-
tached to the rear of the machine for
driving on public roads.
– Set the motor rpm to high.
Note:
The wear on the ground can be reduced by
using the upgrade kit for grass tyres (2.851-
089.0).
Removing the waste container/fresh water
tank will increase the driving stability and
the driver's view.
 Lower the working appliance and the
suction opening.
 Clean the top surface of the suction
opening with compressed air (for
sweepers).
Frost protection
Transport
Attachment sets
Preparation for all upgrade kits
Mower 125 cm
Connecting the hydraulic lines
Operations
Lowering mower
deck, floating
 Push lever B all the
way towards the
front and lock it in
place.
Lowering and
pressing down
the mower deck
 Push lever B to-
wards the front.
Raising the mow-
er deck
 Lever B towards
the back.
Changing the cut-
ting height
 Press button (15).
Switching on the
knife drive
 Pushbutton (7)
Switch on work hy-
draulics Main PTO.
Prerequisites for operation
After mowing
Mower 135 cm
Connecting the hydraulic lines
Operations
Lowering mower
deck, floating
 Push lever B all the
way towards the
front and lock it in
place.
Lowering and
pressing down
the mower deck
 Push lever B to-
wards the front.
Raising the
mower deck
 Lever B towards the
back.
Decreasing the
cutting height
 Lever C towards the
front.
Increasing cut-
ting height
 Lever C towards the
back.
Switching on the
knife drive
 Pushbutton (7)
Switch on work hy-
draulics Main PTO.
Preselection
rear ejector
 Change-over switch
(14) to AUX 2 front.
Closing the rear
ejector
 Lever D towards the
front.
Opening the
rear ejector
 Lever D towards the
back.
Prerequisites for operation
After mowing
14 EN
