- 15

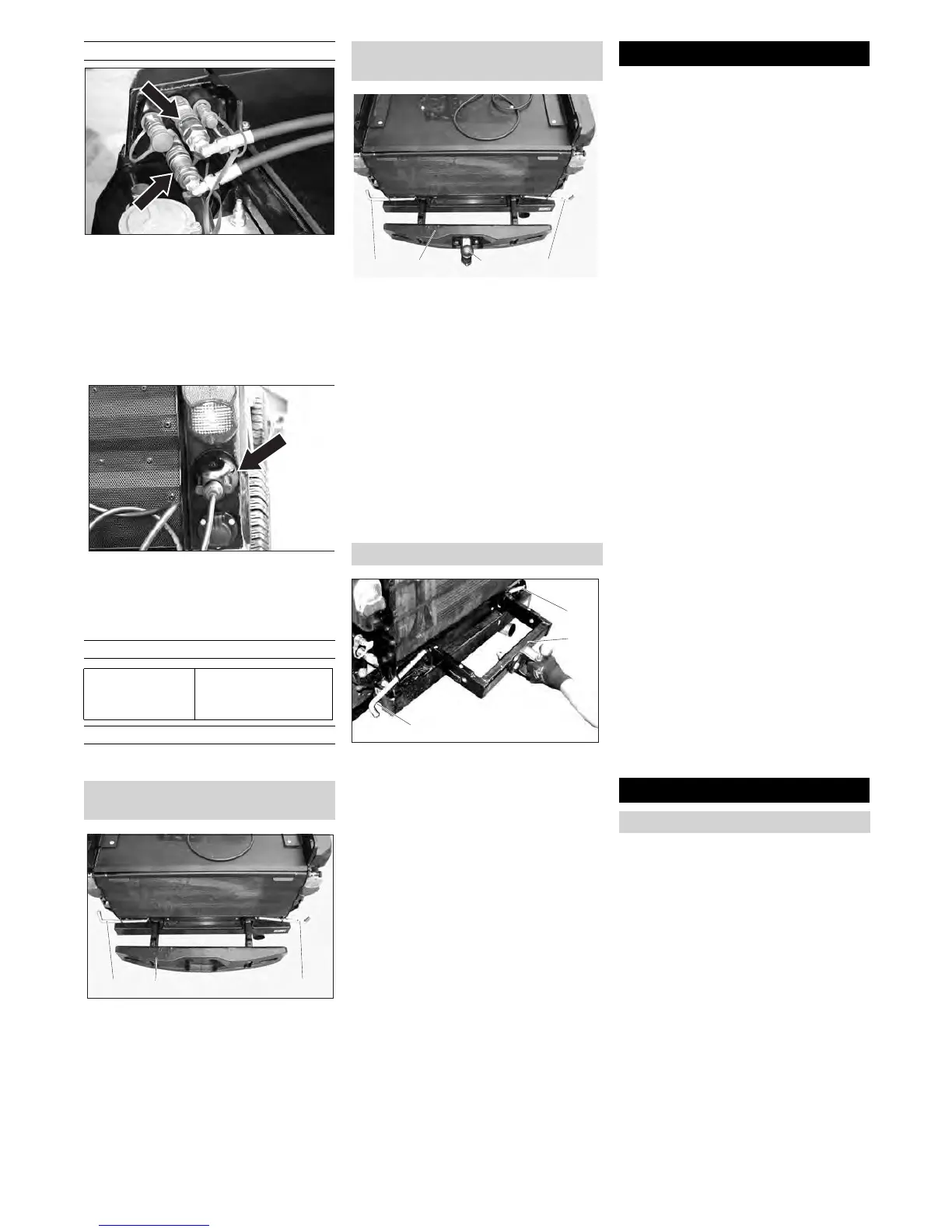

 Remove the protective caps from the
hydraulic coupling and connect the hy-
draulic hoses with the respective cou-
plings.
 Connect the protective caps to each
other to protect from contamination.
 Connect the plug on the rear of the
sweeper.
 Secure the cable if necessary to pre-
vent it from being pulled in by moving
parts.
– Set the motor speed to "eco", the lower
level of the range.
1 Safety pin
2 Counterweight
 Unlock the safety bolt by turning it and
pull it out toward the side.
 Slide the counter weight into the square
pipes of the machine frame.
 Slide in the safety bolt and lock it by
turning it.
1 Safety pin
2 Counterweight
3 Towing hitch
 Unlock the safety bolt by turning it and
pull it out toward the side.
 Slide the counter weight with the attach-
ment hitch into the square pipes of the
appliance frame.
 Slide in the safety bolt and lock it by
turning it.
 The permissible drawbar and drawing
loads of the tractor are indicated in the
Chapter "Technical Specifications".
1 Safety pin
2 Towing hitch
 Unlock the safety bolt by turning it and
pull it out toward the side.
 Slide the lorry hitch into the square
pipes of the machine frame.
 Slide in the safety bolt and lock it by
turning it.
 The permissible drawbar and drawing
loads of the tractor are indicated in the
Chapter "Technical Specifications".
몇 Warning
Risk of injury and damage! Note the weight
of the appliance in case of storage.
If the appliance is going to be out of service
for a longer time period, observe the follow-
ing points:
 Park the appliance in a safe, level and
dry place.
 With optionally available 3rd side brush:
Change-over switch (14) in 3rd side
brush position:
3. Swivel in the side brush, in order to
do so lock lever D in place towards the
front.
3. Raise the side brush, in order to do
so, push lever C towards the back.
 With sweeper: Raise the side brush and
the suction port, in order to do so, push
lever B towards the back.
With appliance carrier: Raise the work-
ing equipment: in order to do so, push
lever B towards the back.
 Turn ignition key to "STOP" and remove
it.
 Secure appliance to prevent it rolling
away, lock emergency brake.
 Change the engine oil and the oil filter.
 If frost is expected, check whether there
is enough anti-frosting agent in the
cooling water.
 Empty the water reservoir and the pipe
system; refer to chapter "Maintenance
Work/Empty water reservoir") (option).
 For the water circulation system (op-
tion) drain the water from the waste
container.
 Clean the inside and outside of the
sweeper.
 Charge battery approx. every 2 months.
 Disconnect the negative terminal of the
battery if the appliances is not used for
more than 4 weeks.
 First switch off the appliance and re-
move the ignition key before performing
any cleaning or maintenance tasks on
the appliance, replacing parts or switch-
ing over to another function.
 The battery must be disconnected prior
to working on the electrical system.
 Lock parking brake.
 Maintenance work may only be carried
out by approved customer service out-
lets or experts in this field who are famil-
iar with the respective safety
regulations.
Connecting the hydraulic lines
Connecting the tail lights
Operations
Switching on the
spreader
 Pushbutton (7)
Switch on work hy-
draulics Main PTO.
Prerequisites for operation
Balance weight without
attachment hitch
1
2
1
Balance weight with
attachment hitch
Towing hitch
Towing hitch
1
2
1
3
1
2
1
Storage
Maintenance and care
General notes
17EN
