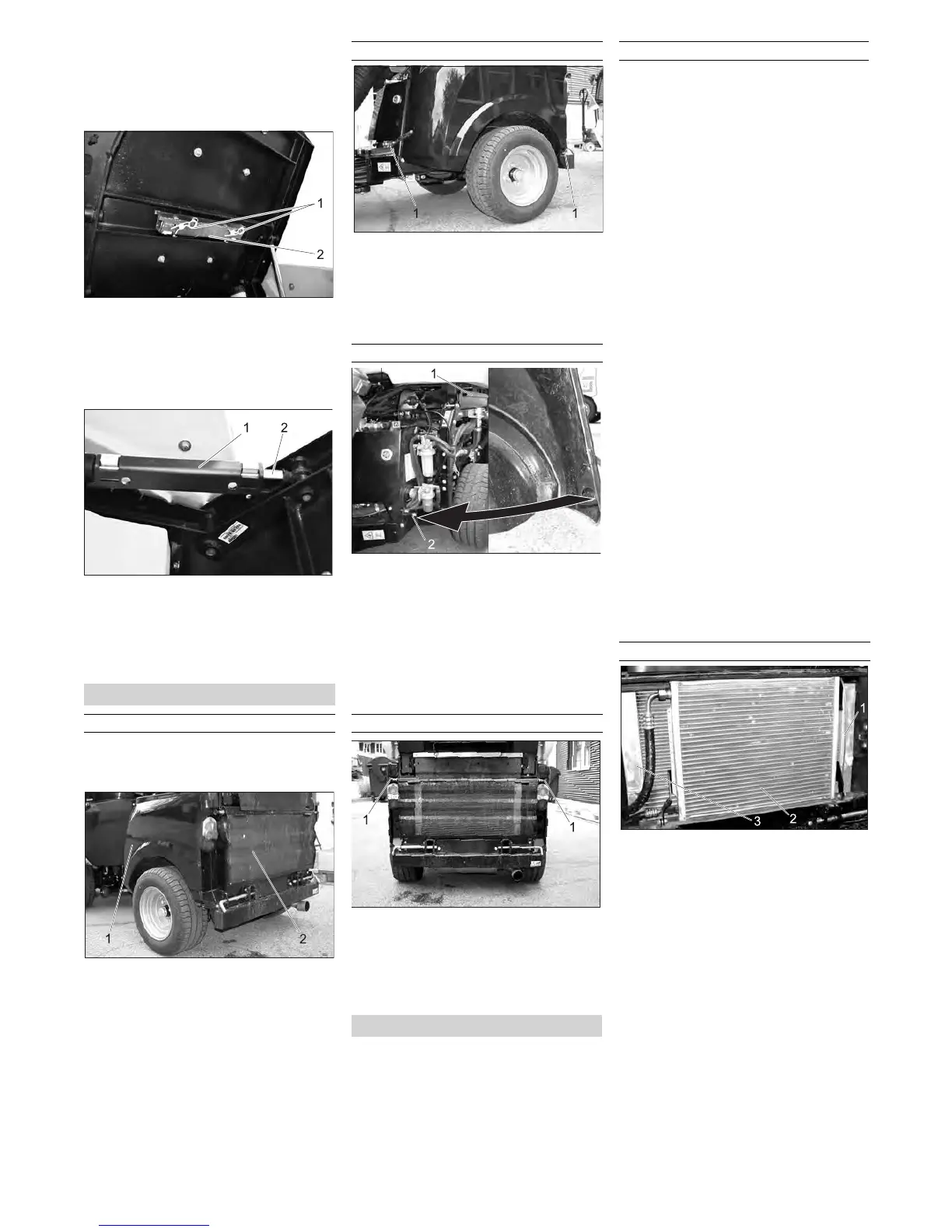

Install the safety support prior to working on
the machine with the waste container
raised:
1 Spring pin
2 Safety support
 Pull out the spring plug.
 Remove the safety support from the
waste container.
1 Safety support
2 Piston rod
 Insert safety support onto the piston rod
of a lifting cylinder for the waste con-
tainer.
몇 Warning
Risk of burns Let the appliance cool off be-
fore removing the panels.
1 Side engine panel
2 Radiator grill
The completion of the difference mainte-
nance tasks, the engine panels must be re-
moved.
1 Cover lock
 Open both hood latches.
 Raise the panels and swivel them to the
top and out.
 Remove panels.
1 Fastening bushing
2 Centering cone
 Thread the bottom end of the panel be-
hind the wheel.
 Swivel the panel up to the appliance
and hook the top edge of the panel into
the fastening bushing.
 Close the hood latches.
1 Lock
 Open both latches (pull the latch out, ro-
tate about 90° and release).
 Swivel the radiator grill toward the top,
pull up and remove.
 Empty the waste container (for sweep-
ers).
 Raise the working machine.
 Raise the side brush and the suction port.
 Park the machine on an even surface.
 Set engine speed to MIN position.
 Turn ignition key to "STOP" and remove it.
 Lock parking brake.
Clean appliance daily after finishing work.
Caution
Risk of damage!
Shaft seals, electrical components and hy-
draulic valves must not be cleaned using a
high pressure water jet.
Do not rinse the engine with water.
When cleaning the appliance with a high
pressure cleaner, adhere to the respective
safety instructions.
Radiator fins must only be cleaned with
compressed air (max. 5 bar), not with wa-
ter.
Do not use aggressive cleaning agents.
In order to protect the air filter only wash the
rear of the appliance while the motor is shut
off.
 Check for oil and fuel leaks to prevent
fires. Get customer service to fix the
leaks.
 Rinse the side brush with a water jet (for
sweepers).
 Rinse the suction opening with a water
jet (for sweepers).
 Check front power lifter for ease of
movement (raising and lowering).
 Check the easy movement of the suc-
tion opening and the bulk waste flap (for
sweepers).
 To avoid fires, keep the engine, muffler,
battery and fuel tank free of plant resi-
due and oil.
 Check the engine for contamination,
clean with a brush or compressed air if
required
1 Fastening rod
2 Cooler for air-conditioner (accessory
MC50)
3 Combi cooler
 Check the radiator for contamination.
 Remove large object by hand.
 Remove contamination with a soft
brush or compressed air.
Swivel the radiator of the air conditioning to
the side:
 Release the fastening rod from the
holder and swivel it up.
 Swivel the radiator of the air condition-
ing to the side.
Safety measures for raised waste con-
tainer (for sweepers)
Panels
Remove/attach engine panels
Remove the engine's side panels
Install the engine's side panels
Remove the radiator grill
Cleaning
Cleaning the device
Clean the cooler
18 EN
