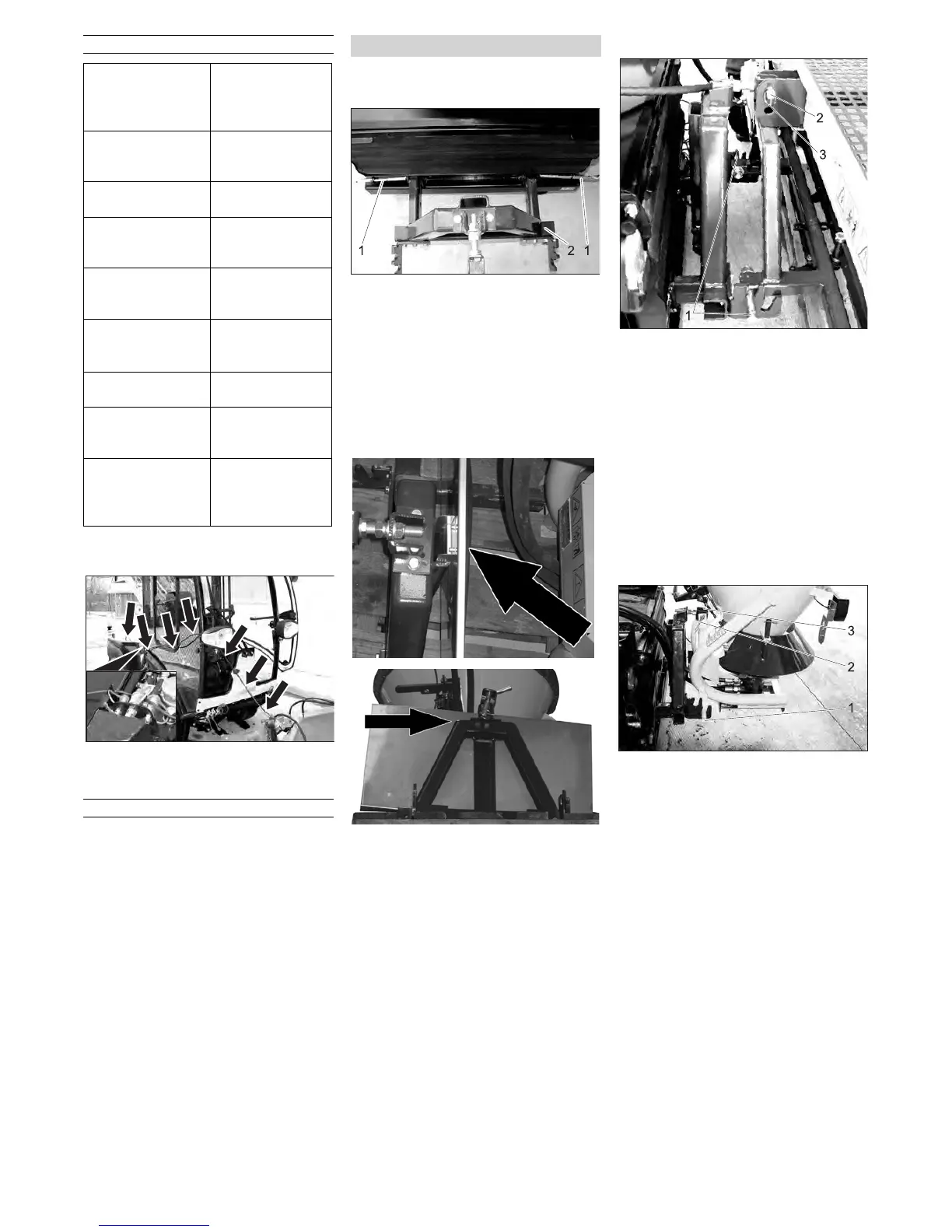

- 14
Route the cables as shown above.
Connect the plug on the rear of the
sweeper.
– If no caster is attached, the balance
weight (option) must be attached to the
rear of the machine for driving on public
roads, when the waste container/water
tank is removed.
Note:
Removing the waste container/fresh water
tank will increase the driving stability and
the driver's view.
Shut the motor off, remove ignition key.
1 Safety pin
2 Attachment block
Unlock the safety bolt by turning it and
pull it out.
Slide the attachment block into the two
square pipes on the rear of the ma-
chine.
Slide in the safety bolt and lock it by
turning it.
Insert the spray guard to protect the ra-
diator from sprayed materials.
1 Holding pin
2 Safety pin
3 Folding plug
Pick the roller caster up and hook the
holding pins into the guide slots at the
bottom of the mounting block.
Use the guide slots located closer to the
vehicle.
Align the roller caster and fasten using
the safety bolt.
Secure the safety block against sliding
out with the folding plug.
1 Holding pin
2 Safety pin
3 Folding plug
Same attachment as the roller caster,
except that the guide slots furthest from
the vehicle are used.
Operations
Lowering the snow
blower, floating
Push lever B all
the way towards
the front and
lock it in place.
Lowering and press-
ing down the snow
blower
Push lever B to-
wards the front.
Raising the snow
blower
Lever B towards
the back.
Swivelling the dis-
charge chute to the
right
Lever D towards
the back.
Swivelling the dis-
charge chute to the
left
Lever D towards
the front.
Increasing the ejec-
tion range
Lever C towards
the back.
Decreasing the ejec-
tion range
Lever C towards
the front.
Preselection snow
blower
Change-over
switch (14) to
AUX 2 front.
Switching on the
snow blower
Pushbutton (7)
Switch on work
hydraulics Main
PTO.
Connect the marker lamps (option)
Prerequisites for operation
Caster
Mount the attachment block
Fasten the roller caster
Attach the plate caster
16 EN
