Kenmore 385.11206300 User Manual

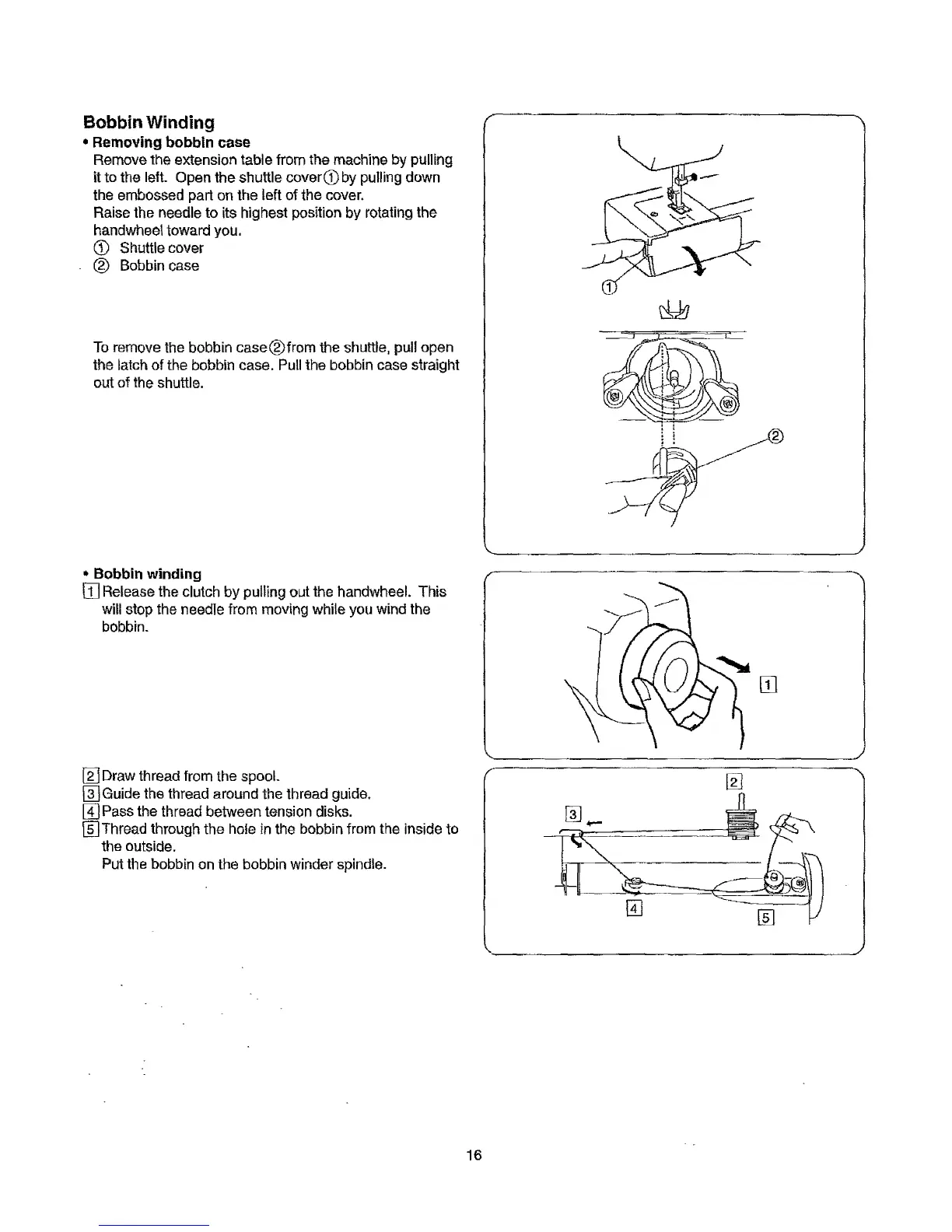

Bobbin Winding
• Removing bobbin case
Remove the extension table from the machine by pulling
it to the left. Open the shuttle cover(_ by pulling down
the embossed part on the left of the cover.
Raise the needle to its highest position by rotating the
handwheet toward you,
(_) Shuttle cover
(_) Bobbin case
To remove the bobbin case(_from the shuttle, pull open
the latch of the bobbin case. Pull the bobbin case straight
out of the shuttle.
• Bobbin winding
[] Release the clutch by pulling out the handwheel. This
will stop the needle from moving while you wind the
bobbin.
[] Draw thread from the spool.
[] Guide the thread around the thread guide.
[] Pass the thread between tension disks.
[]Thread through the hole in the bobbin from the inside to
the outside.
Put the bobbin on the bobbin winder spindle.
[]
[]
[]
[]
J
16

Kenmore 385.11206300 Specifications

General

Brand	Kenmore
Model	385.11206300
Category	Sewing Machine
Language	English
