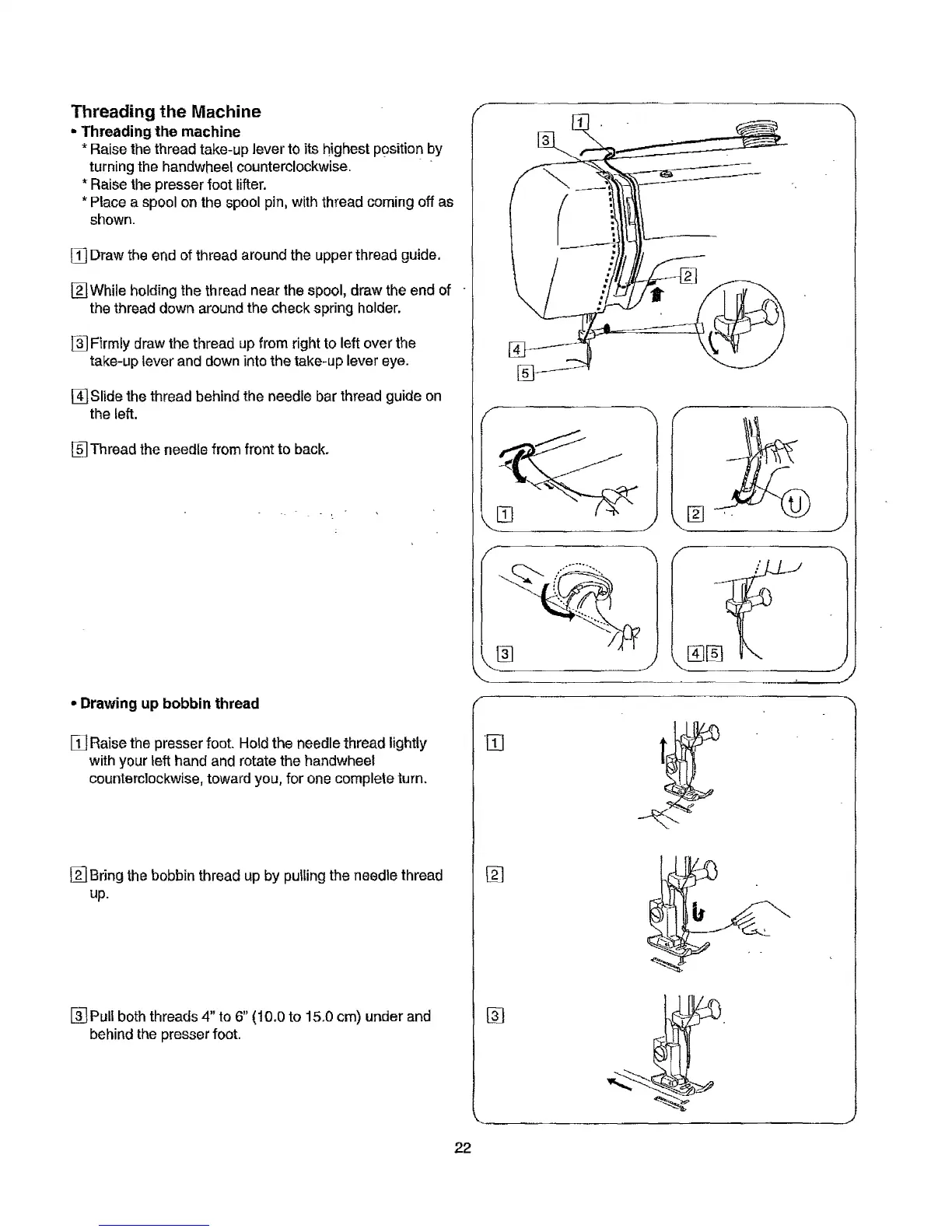

Threading the Machine
= Threading the machine
* Raise the thread take-up lever to itshighest position by
turning the handwheet counterclockwise.
* Raise the presser foot lifter.
* Place a spool on the spool pin, with thread coming off as
shown.
[] Draw the end of thread around the upper thread guide,
[]While holding the thread near the spool, draw the end of "
the thread down around the check spring holder.
[] Firmly draw the thread up from right to left over the
take-up lever and down into the take-up lever eye.
[] Slide the thread behind the needle bar thread guide on
the left.
[] Thread the needle from front to back.
• Drawing up bobbin thread
[] Raise the presser foot. Hold the needle thread lightly
with your left hand and rotate the handwheel
counterclockwise, toward you, for one complete turn.
[]Bring the bobbin thread up by pu_lingthe needle thread
up.
_PuU both threads 4" to 6" (10.0 to 15.0 cm) under and
behind the presser foot.
%
J
22
