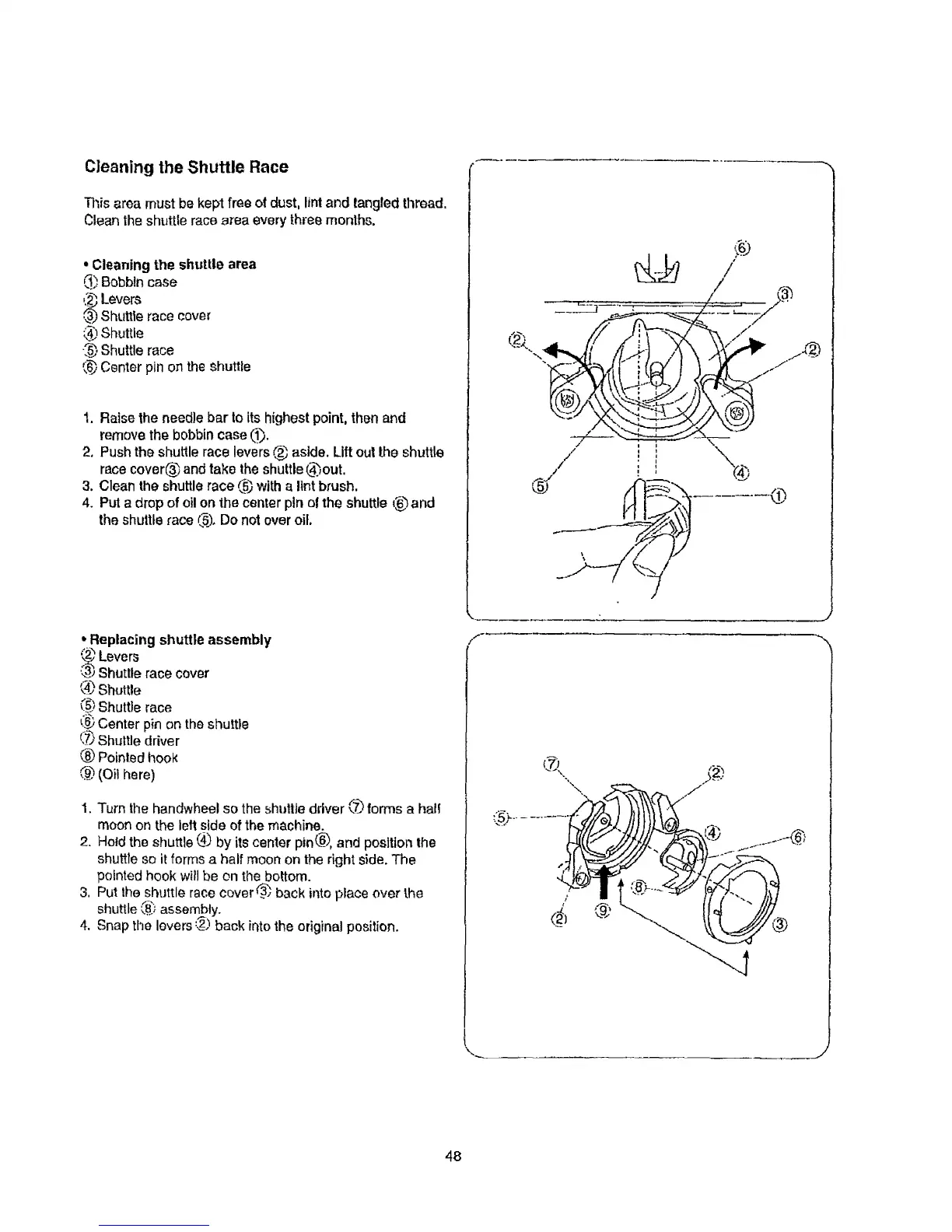

Cleaning the Shuttle Race
This area must be kept free of dust, lint and tangled thread.
Clean the shuttle race area every three months.
• Cleaning the shuttle area
_ Bobbin case
_ Lever_
,_ Shuttle race cover
Shuttle
._ Shuttle race
_._Center pin on the shuttle
1. Raisethe needle bar to its highest point,then and
removethe bobbin case ._.
2, Push the shuttle race levers _ aside. Lift outthe shuttle
racecover_ and take the shuttle _jout,
3. Clean the shuttle race _._witha lint brush,
4. Put a drop of oil on the center pin e| the shuttle _'_'_and
the shuttle race _.)oDo not overoil.
• Replacing shuttle assembly
'_ Levers
_) Shuttle race cover
_t_Shuttle
_) Shuttle race
_ Center pin on the shuttle
_ Shuttle driver
L_ Poinled hook
@ (Oil here)
1. Turn tile handwheel so the shutlle driver _ forms a hall
moon on the left side of the machine.
2. Hold the shuttle _ by its center pin(_"_,and position the
shuttle so it forms a half moon on the right side. The
pointed hook will be on the bottom.
3. Put the shuttle race cover _';_back into place over the
shuttle _'_ assembly.
4. Snap tl_e levers =_)back into the original position.
f-
®
//
,. /..
___:j- . . _:::_ ._i.'/"_
/"
®..___,,@M---/€.._..y
.J
,_......... .f_'¢")__'"_:i___._ t /
48
