SEWINGMACHINEDIV.20 MODEL385.17822490

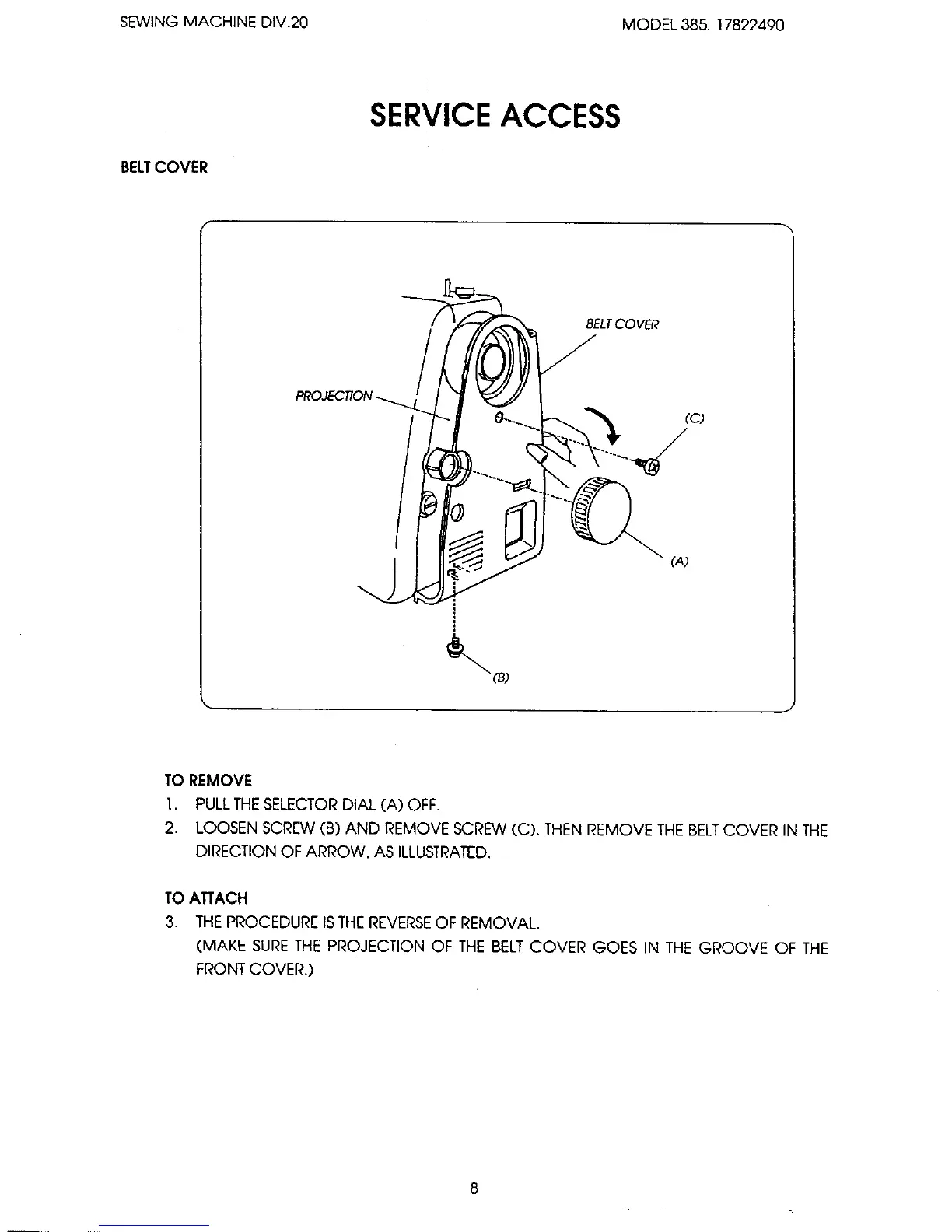

SERVICE ACCESS
BELTCOVER
B_TCOVER
PROJECTION _
(c)
TO REMOVE
1. PULL THESELECTOR DIAL (A) OFF.
2. LOOSEN SCREW (B) AND REMOVE SCREW (C). THEN REMOVE THE BELTCOVER IN THE
DIRECTION OF ARROW. AS ILLUSTRATED.
TO ATTACH
3. THE PROCEDURE ISTHE REVERSEOF REMOVAL.
(MAKE SURE THE PROJECTION OF THE BELT COVER GOES IN THE GROOVE OF THE
FRONT COVER.)
8
