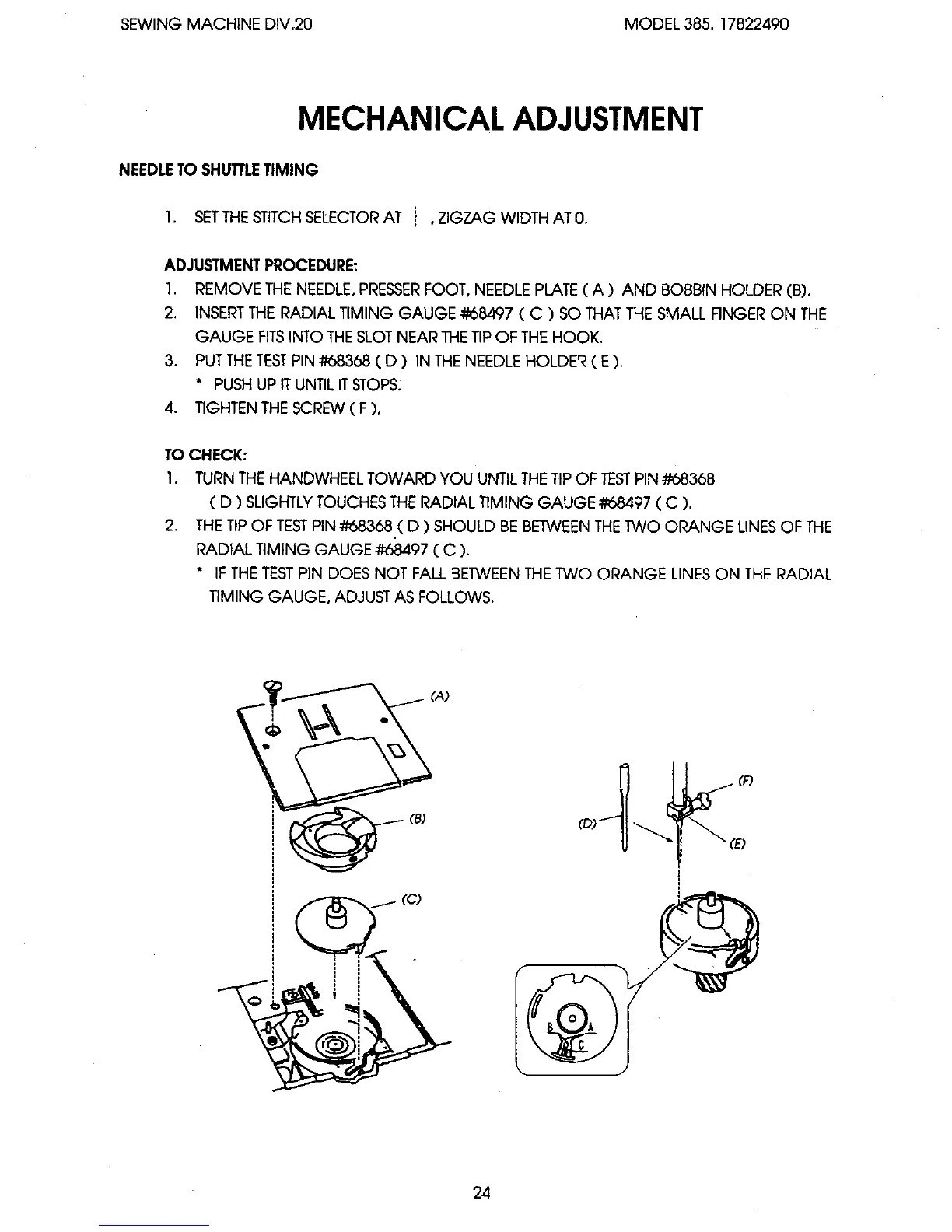

SEWINGMACHINEDIV.20 MODEL385.]7822490
MECHANICAL ADJUSTMENT
NEEDLETO SHUTTLETIMING
1. SETTHE STITCHSELECTORAT i , ZIGZAG WIDTH AT 0.
ADJUSTMENT PROCEDURE:
1. REMOVE THE NEEDLE, PRESSERFOOT, NEEDLE PLATE( A ) AND BOBBIN HOLDER (B].
2. INSERTTHE RADIAL TIMING GAUGE _58497 ( C ) SO THAT THE SMALL FINGER ON THE
GAUGE FITSINTO THESLOT NEAR THE TIPOF THE HOOK.
3. PUT THETESTPIN :#68368 ( D ) IN THE NEEDLE HOLDER ( E ).
* PUSH UP IT UNTILITSTOPS:
4. TIGHTEN THE SCREW ( F ).
TO CHECK:
1. TURN THE HANDWHEEL TOWARD YOU UNTILTHETIP OF TESTPIN #68368
( D ) SLIGHTLY TOUCHES THE RADIAL TIMING GAUGE _497 ( C ).
2. THE TiP OF TESTPIN _58368 ( D ) SHOULD BE BETWEENTHETWO ORANGE LINESOF THE
RADIAL TIMING GAUGE -#68497 ( C ).
* IF THE TESTPIN DOES NOT FALL BETWEEN THE TWO ORANGE LINES ON THE RADIAL
TIMING GAUGE, ADJUST AS FOLLOWS.
(c)
24
