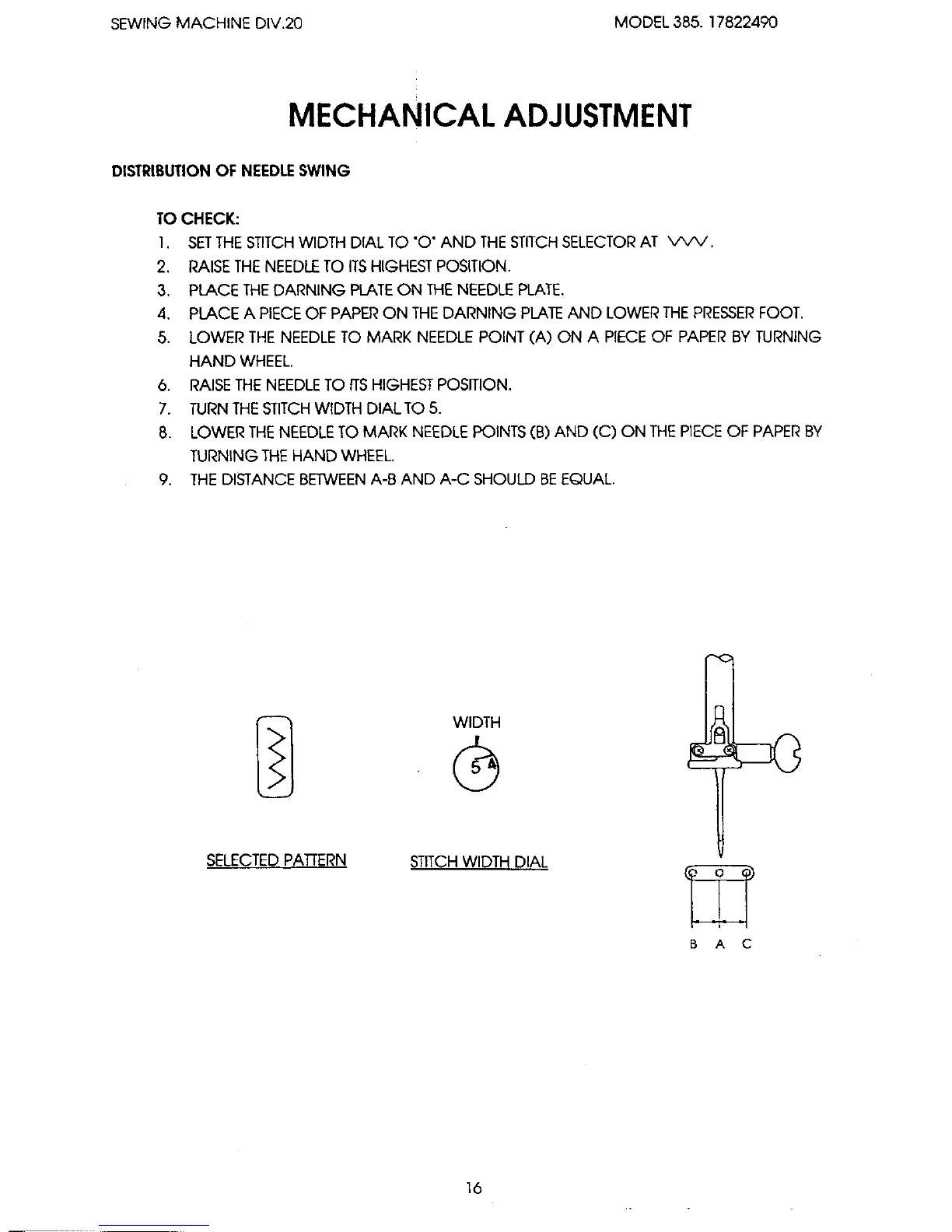

SEWING MACHINE DIV.20 MODEL 385. 17822490
MECHANICAL ADJUSTMENT
DISTRIBUTION OF NEEDLESWING
TO CHECK:
1. SETTHE STITCHWIDTH DIAL TO "O" AND THE STITCHSELECTOR AT VVV.
2. RAISE THE NEEDLE TO ITSHIGHEST POSITION.
3. PLACE THEDARNING PLATE ON THE NEEDLE PLATE.
4. PLACE A PIECE OF PAPER ON THE DARNING PLATEAND LOWER THEPRESSERFOOT.
5. LOWER THE NEEDLE TO MARK NEEDLE POINT (A) ON A PIECE OF PAPER BY TURNING
HAND WHEEL.
6. RAISE THE NEEDLETO ITSHIGHEST POSITION.
7. TURN THESTITCHWIDTH DIAL TO 5.
8. LOWER THE NEEDLE TO MARK NEEDLE POINTS (B) AND (C) ON THE PIECE OF PAPER BY
TURNING THE HAND WHEEL.
9. THE DISTANCE BETWEENA-B AND A-C SHOULD BE EQUAL.
WIDT(_
SELECTED pATTERN
STITCHWIDTH DIAL
B A C
16
