SEWINGMACHINEDIV.20 MODEL385.17822490

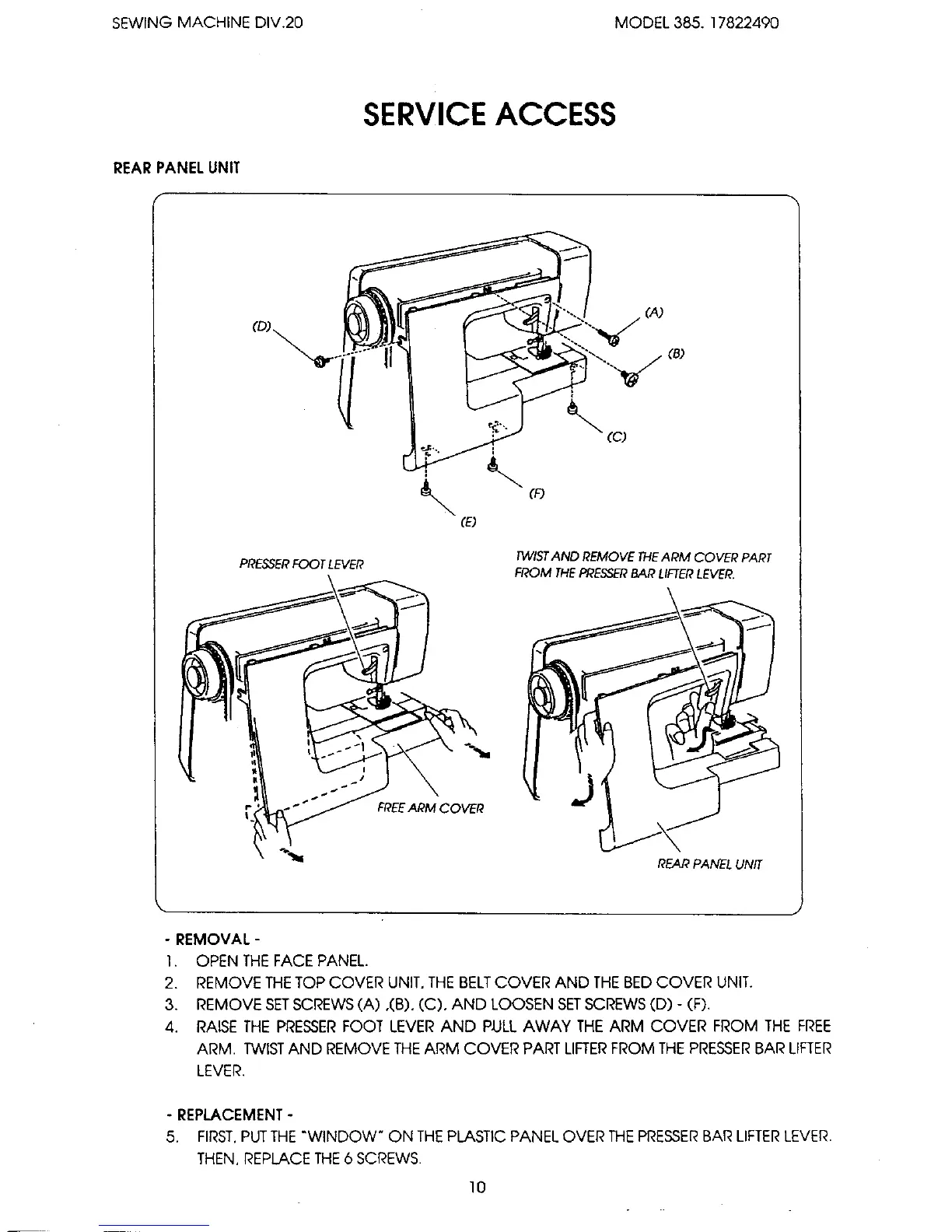

SERVICE ACCESS
REARPANEL UNIT
PRE,_ER FOOT LEVER
(F)
n4/IST AND REMOVE THEARM COVER PART
FROM THEPRESSERBAR LIFTERLEVER.
FREE ARM COVER
REAR PANEL UNIT
- REMOVAL-
1. OPEN THE FACE PANEL.
2. REMOVE THETOP COVER UNIT, THE BELTCOVER AND THE BED COVER UNIT.
3. REMOVE SETSCREWS(A) ,(B), (C), AND LOOSEN SETSCREWS(D) - (F).
4. RAISE THE PRESSERFOOT LEVER AND PULL AWAY THE ARM COVER FROM THE FREE
ARM. TWISTAND REMOVE THEARM COVER PART LIFTERFROM THE PRESSERBAR LIFTER
LEVER.
- REPLACEMENT -
5. FIRST.PUTTHE "WINDOW" ON THEPLASTIC PANEL OVER THEPRESSERBAR LIFTERLEVER.
THEN, REPLACE THE6 SCREWS.
10
