SEWING MACHINE DIV.20 MODEL 385. 17822490
FACE COVER

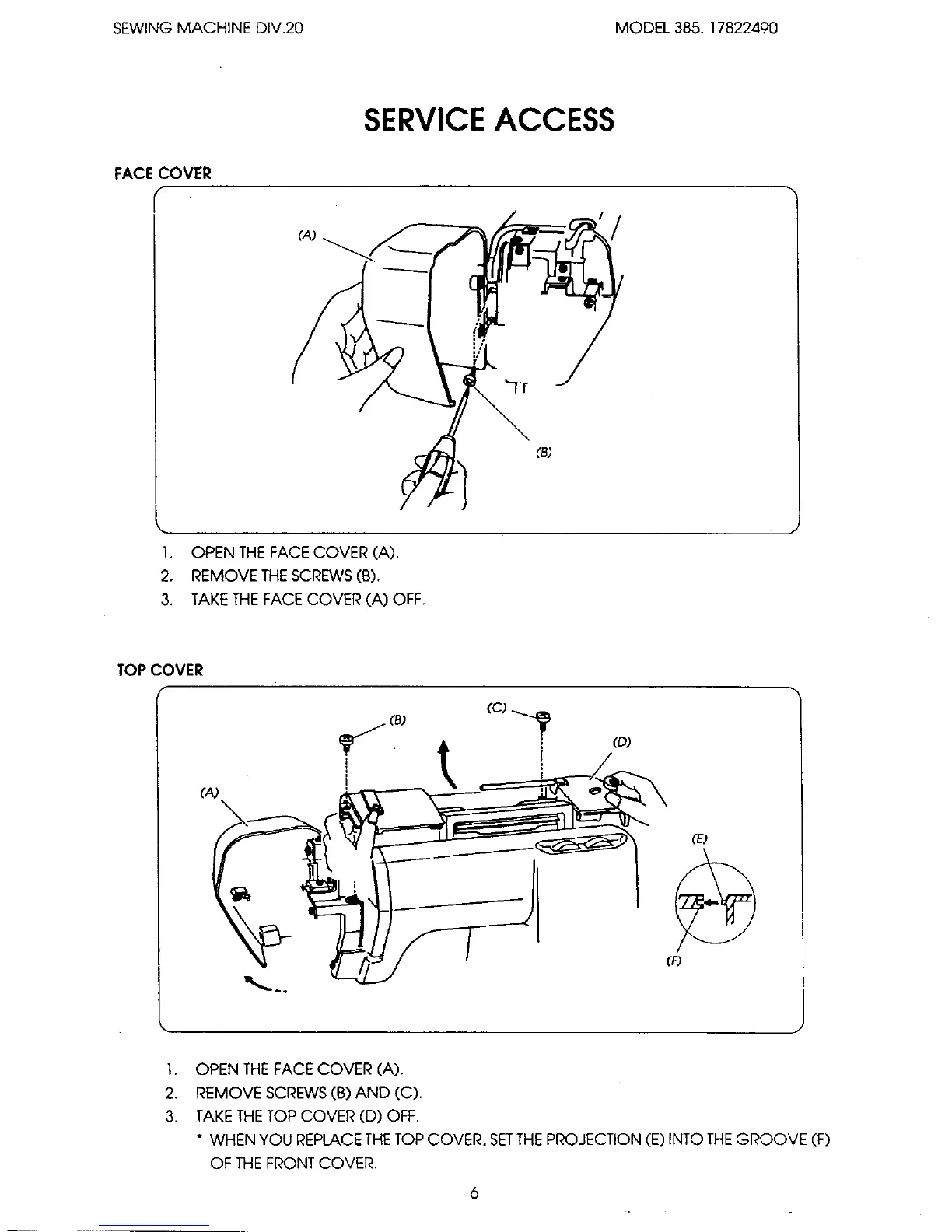

SERVICE ACCESS
/
1. OPEN THE FACE COVER (A).
2. REMOVETHE SCREWS (B).
3, TAKE THE FACE COVER (A) OFF.
TOP COVER
_ (B) (C) _ (D)
(E)
CF)
1. OPEN THE FACE COVER (A).
2. REMOVE SCREWS (B) AND (C).
3. TAKE THETOP COVER (D) OFF.
* WHEN YOU REPLACE THETOP COVER. SETTHE PROJECTION (E) INTO THEGROOVE (F)
OF THE FRONT COVER.
6
