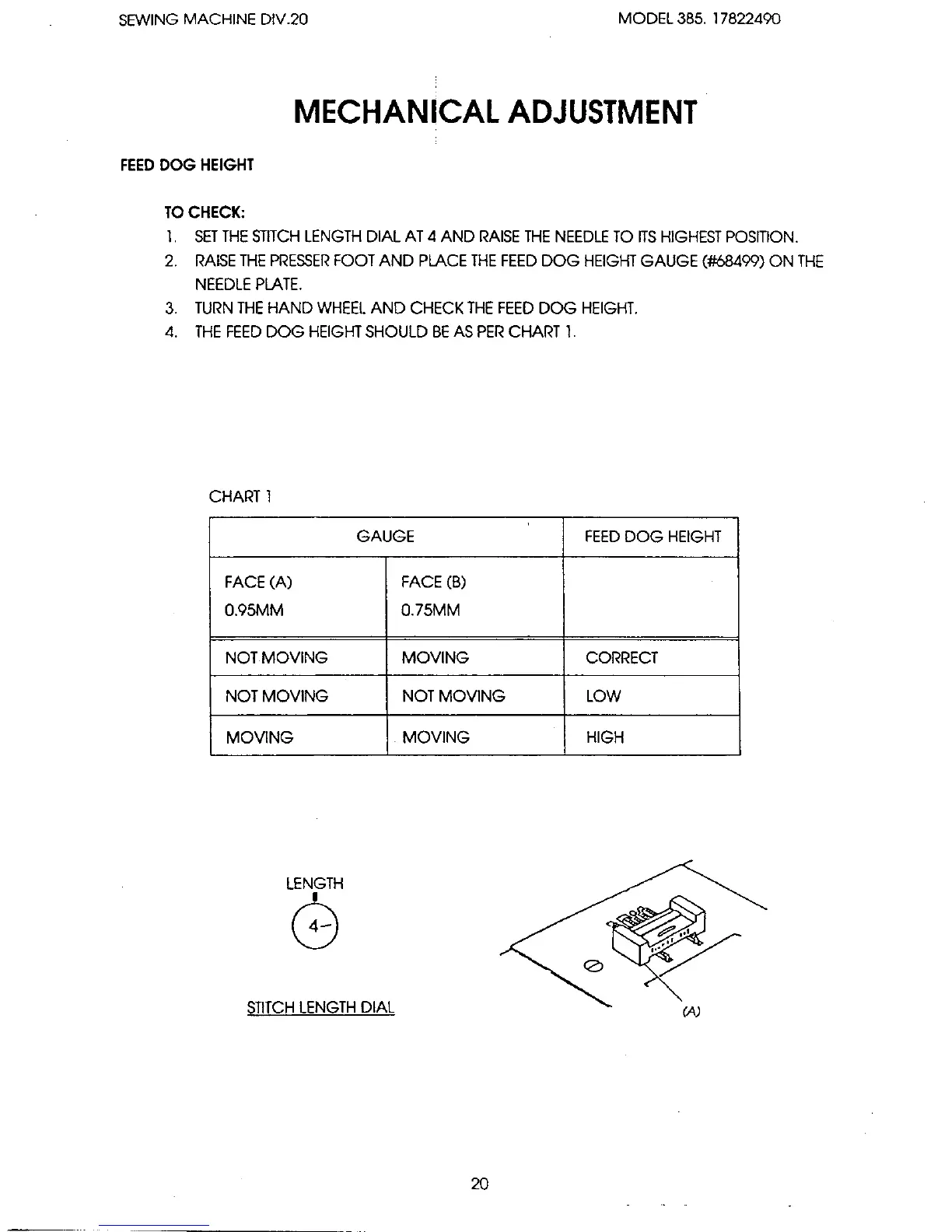

SE-_VINGMACHINE D1V.20 MODEL 385. 17822490
MECHANICAL ADJUSTMENT
FEEDDOG HEIGHT
TO CHECK:
1, SETTHE STITCH LENGTH DIAL AT 4 AND RAISE THE NEEDLETO ITSHIGHESTPOSITION.
2. RAISE THEPRESSERFOOT AND PLACE THE FEED DOG HEIGHT GAUGE (#68499) ON THE
NEEDLE PLATE.
3. TURN THE HAND WHEEL AND CHECK THE FEED DOG HEIGHT.
4. THE FEED DOG HEIGHT SHOULD BEAS PERCHART 1.
CHART 1
FACE (A)
0.95MM
NOT MOVING
NOT MOVING
MOVING
GAUGE
FACE (B)
0.75MM
MOVING
NOT MOVING
MOVING
FEEDDOG HEIGHT
CORRECT
LOW
HIGH
LENGTH
!
@
STITCHLENGTH DIAL
(A)
2O
