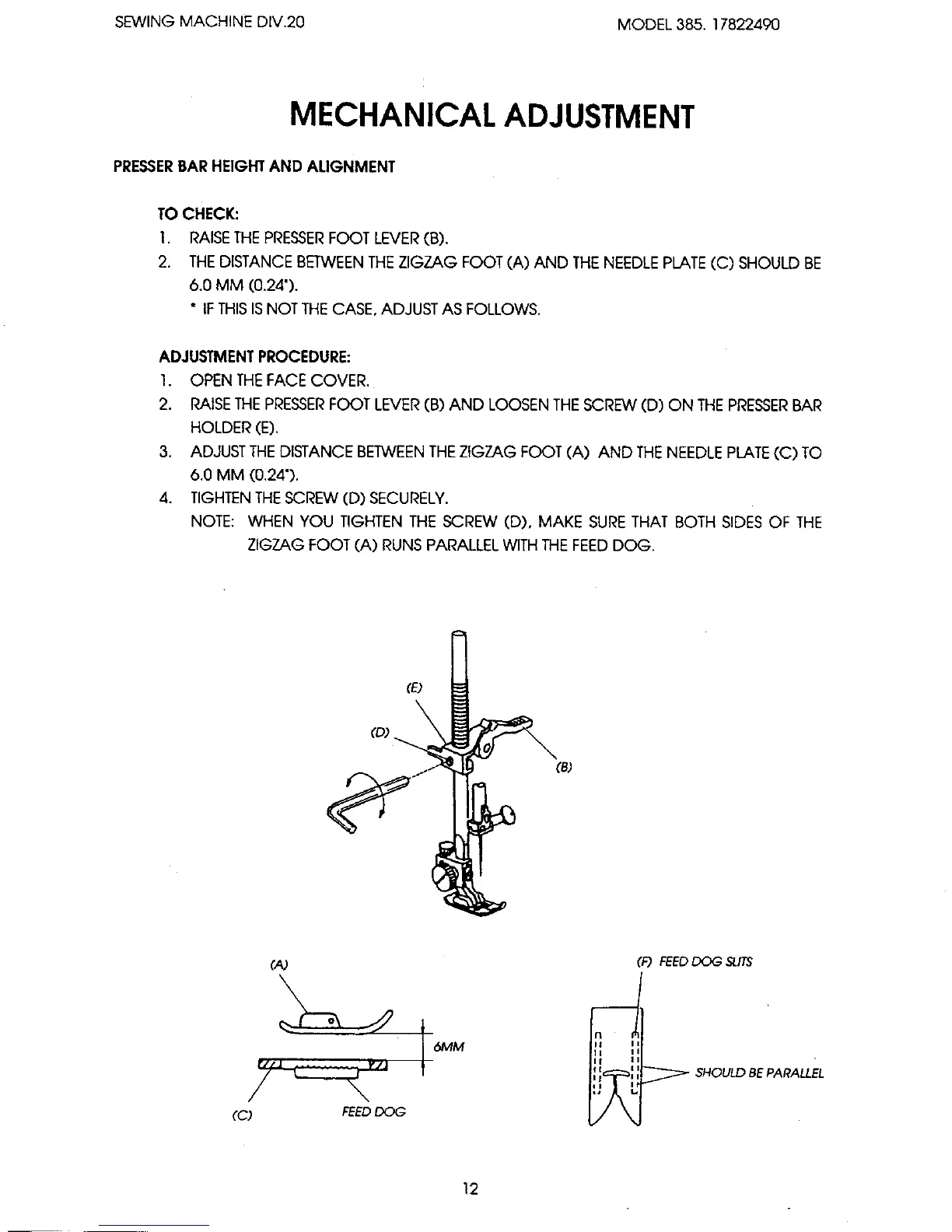

SEWING MACHINE DIV.20 MODEL 385. 17822490
MECHANICAL ADJUSTMENT
PRESSERBAR HEIGHT AND ALIGNMENT
TO CHECK:
I. RAISE THEPRESSERFOOT LEVER(B).
2. THE DISTANCE BETWEENTHE ZIGZAG FOOT (A) AND THE NEEDLE PLATE (C) SHOULD BE
6.0 MM (0.24").
* IF THISISNOT THE CASE, ADJUST AS FOLLOWS.
ADJUSTMENT PROCEDURE:
1. OPEN THEFACE COVER.
2. RAISETHE PRESSERFOOT LEVER (B) AND LOOSEN THE SCREW (D) ON THE PRESSERBAR
HOLDER (E).
3. ADJUST THEDISTANCE BETWEENTHE ZIGZAG FOOT (A) AND THE NEEDLE PLATE(C) TO
6.0 MM (0.24").
4. TIGHTEN THESCREW (D) SECURELY.
NOTE: WHEN YOU TIGHTEN THE SCREW (D), MAKE SURE THAT BOTH SIDES OF THE
ZIGZAG FOOT (A) RUNS PARALLEL WITH THE FEED DOG.
(A)
[/lJ ....... .. Y J|
/
(C) FEED DOG
6MM
(F) FEEDDOG SLITS
I1 II
II II
I{ II ,
II ii SHOULD BE PARALLEL
12
To Next Page
