2-6

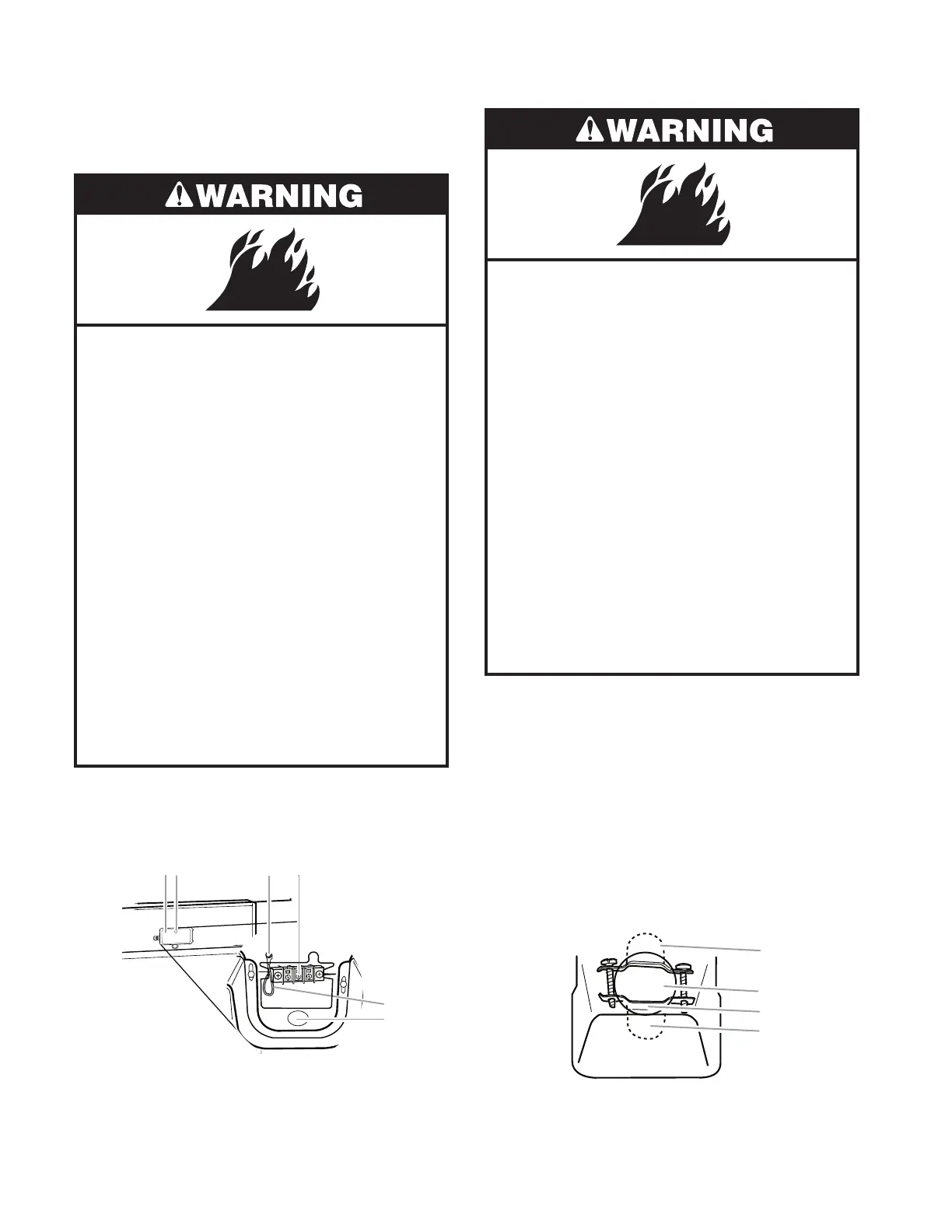

Fire Hazard
Use a new UL listed 30 amp power
supply cord.
Use a UL listed strain relief.
Disconnect power before making
electrical connections.
Connect neutral wire (white or center
wire) to center terminal (silver).
Ground wire (green or bare wire)
must be connected to green ground
connector.
Connect remaining 2 supply wires to
remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Failure to do so can result in death,
fire, or electrical shock.
ELECTRICAL CONNECTION
Electric Models Only
POWER SUPPLY CORD
DIRECT WIRE
1. Disconnect power.
2. Remove the hold-down screw and termi-
nal block cover.
A. Terminal block cover
B. Hold-down screw
C. External ground conductor screw
D. Center, silver-colored terminal
block screw
E. Neutral ground wire
F. Hole below terminal block openin
g
E
F
A
B
C
D
A. Strain relief tab pointing up
B. Hole
below terminal block opening
C. Clamp section
D. Strain relief tab pointing
down
A
B
C
D
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL listed strain relief.
Disconnect power before making
electrical connections.
Connect neutral wire (white or center
wire) to center terminal (silver).
Ground wire (green or bare wire)
must be connected to green ground
connector.
Connect remaining 2 supply wires to
remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Failure to do so can result in death,
fire, or electrical shock.
3. Install strain relief.
Style 1: Power supply cord strain relief
Remove the screws from a 3/4˝ (1.9 cm)
UL listed strain relief (UL marking on strain
relief). Put the tabs of the two clamp sec
-
tions into the hole below the terminal block
opening so that one tab is pointing up and
the other is pointing down, and hold in place.
Tighten strain relief screws just enough to
hold the two clamp sections together.
•
To Next Page
