2-12

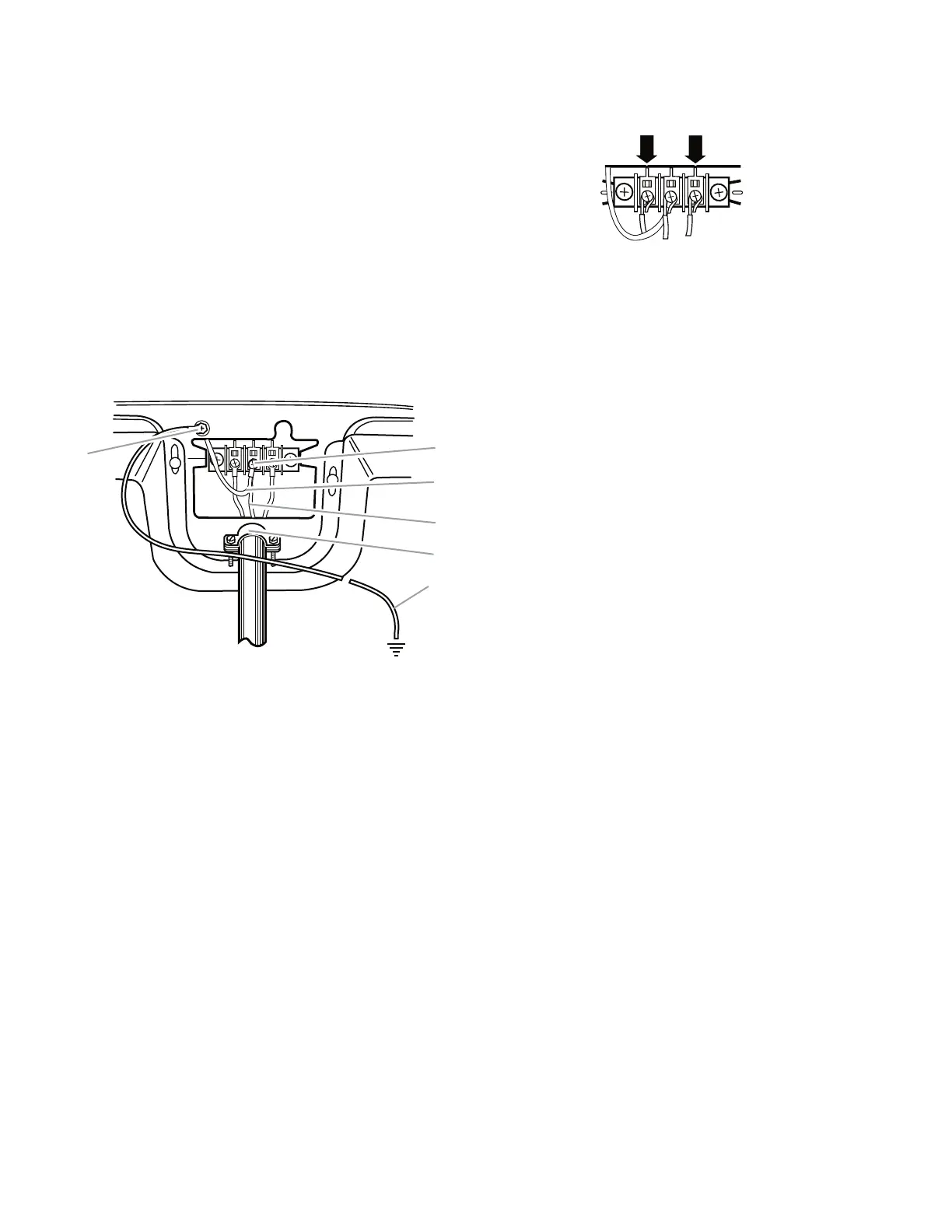

Optional 3-wire connection
Use for direct wire or power supply cord
where local codes do not permit connect
-
ing cabinet-ground conductor to neutral
wire.
1. Remove center silver-colored terminal
block screw.
2. Remove neutral ground wire from exter
-
nal ground conductor screw. Connect
neutral ground wire and the neutral wire
(white or center wire) of power supply
cord/cable under center, silver-colored
terminal block screw. Tighten screw.
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into slot
of dryer rear panel. Secure cover with
hold-down screw.
6. Connect a separate copper ground wire
from the external ground conductor screw
to an adequate ground.
7. You have completed your electrical con-
nection. Now go to “Venting Require
-
ments.”
A. External ground conductor screw
B. Center silver-colored terminal block scre
w
C. Neutral ground wire
D. Neutral wire (white or
center wire)
E.
³⁄
4
" (1.9 cm) UL listed strain relief
F. Grounding
path determined by a qualified electrician
A
B
C
3. Connect the other wires to outer terminal
block screws. Tighten screws.
