4-11

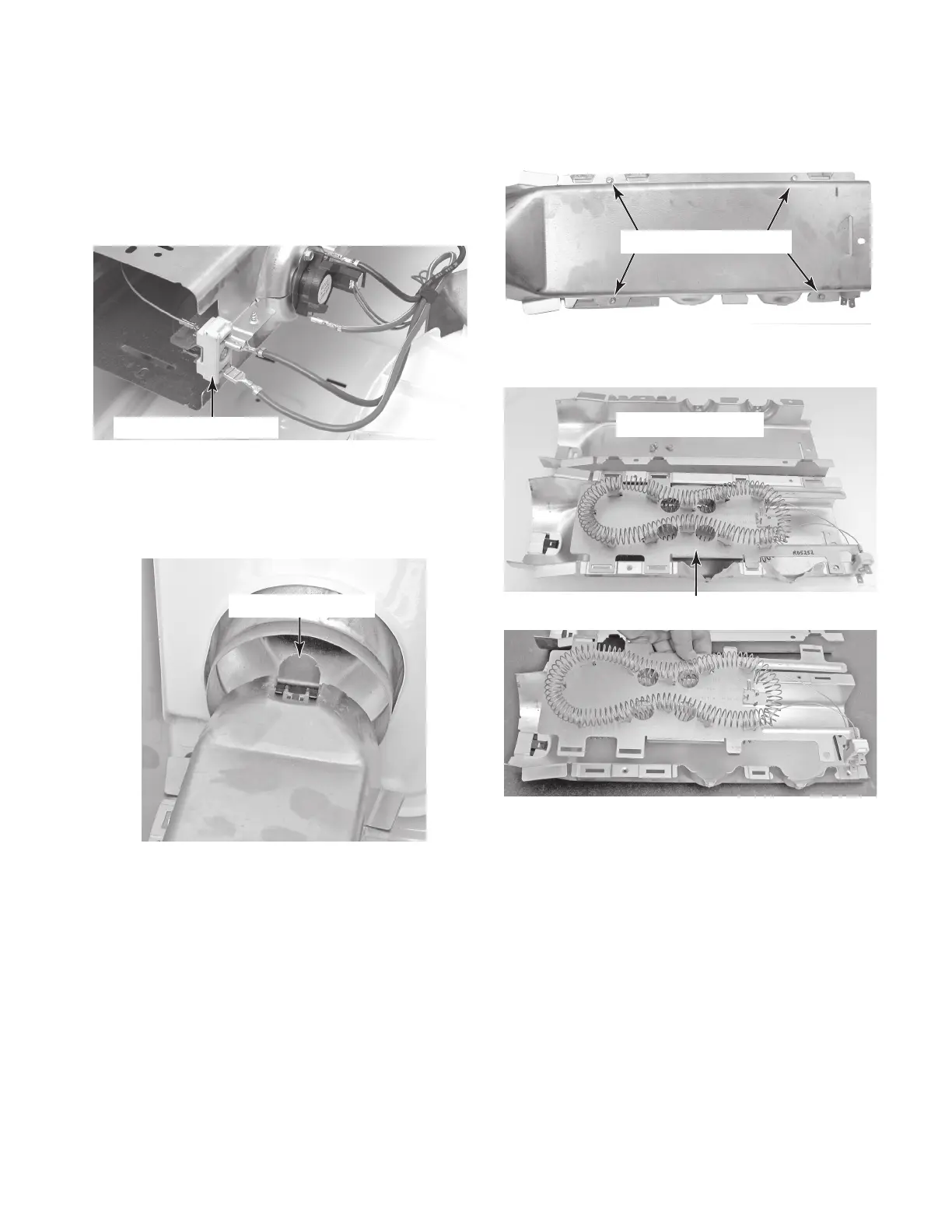

7. To remove the electric heater:
a) Remove the high-limit thermostat and
thermal cutoff from the heater housing
(see steps 5 and 6 on page 4-10).
b) Remove the two wires from the heater
terminal block.
d) Remove the four hex-head screws
from the heater housing and lift off the
top section.
Heater Terminal Block
c) Lift the heater housing and unhook the
tab at the rear heater duct, then pull
the heater housing assembly out of
the dryer.
Heater Housing Tab
e) Lift the heater out of the bottom hous-
ing section.
Heater Housing Screws
Top Heater Housing
Bottom Heater Housing W/Heater
To Next Page
