5-2
HIGH-LIMIT THERMOSTAT, INLET
THERMISTOR, & THERMAL CUTOFF
(ELECTRIC MODELS ONLY)
Refer to page 4-10 for the procedure for ac-
cessing the high-limit thermostat, inlet therm
-
istor, & thermal cutoff.
1. Unplug dryer or disconnect power.
2. Disconnect the wires or connector from
the component under test.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
high-limit thermostat terminals. The me
-
ter should indicate a closed circuit (0 Ω).
NOTE: The thermostat opens at 295°F
(146°C).
5. Touch the ohmmeter test leads to the
thermal cutoff (TCO) terminals. The me
-
ter should indicate a closed circuit (0 Ω).
NOTE: The TCO opens at 352
°F (178°C).
6. Set the ohmmeter to the R x 100K scale.
7. Touch the ohmmeter test leads to the inlet
thermistor terminals. The meter should in
-
dicate approximately 50k Ω @ 69 to 86
°F
(21 to 30
°C).

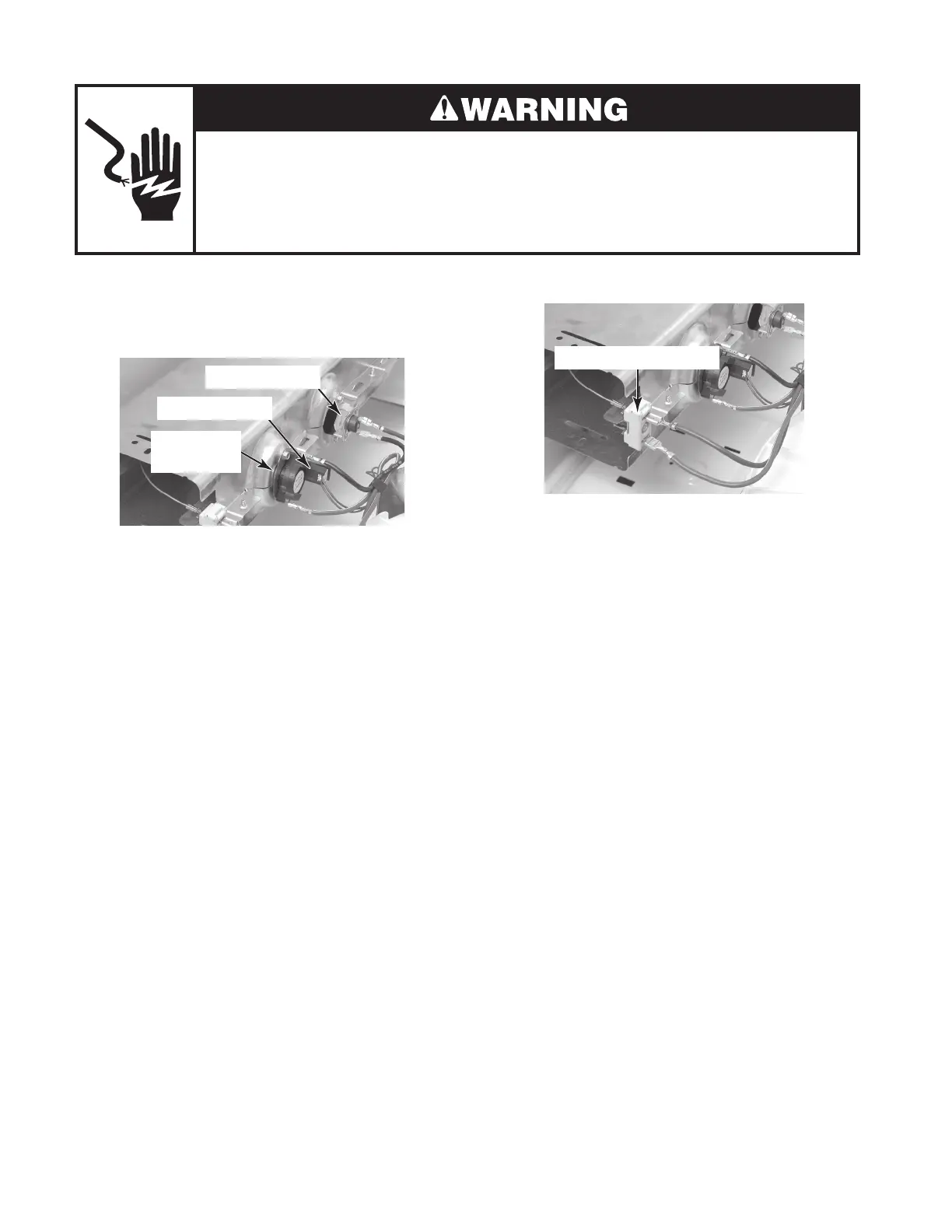

Thermal Cutoff
Inlet Thermistor
High-Limit
Thermostat
ELECTRIC HEATER
Refer to page 4-10 for the procedure for ac-
cessing the electric heater.
1. Unplug dryer or disconnect power.
2. Disconnect the wires from the heater ter
-
minal block.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the heat-
er terminals. The meter should indicate be
-
tween 7 and 12
Ω.
Heater Terminal Block
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
