37
C-V351/C-V301 (EN)
3
Am
Bm
16
16
16
16
16
16
20
20
20
20
20
20
20
20
26
26
26
26
26
26
23
23
23
23
23
23
23
29
29
29
29
29
17
17
17
17
17
17
17
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
A (m) B (m)
4
ENTER
ReturnReturn
Test Tone
ENTER
SL+10dB
Channel
Level
ENTER
ReturnReturn
ENTER
Delay Time
ENTER
Delay Time
20msec
ENTER

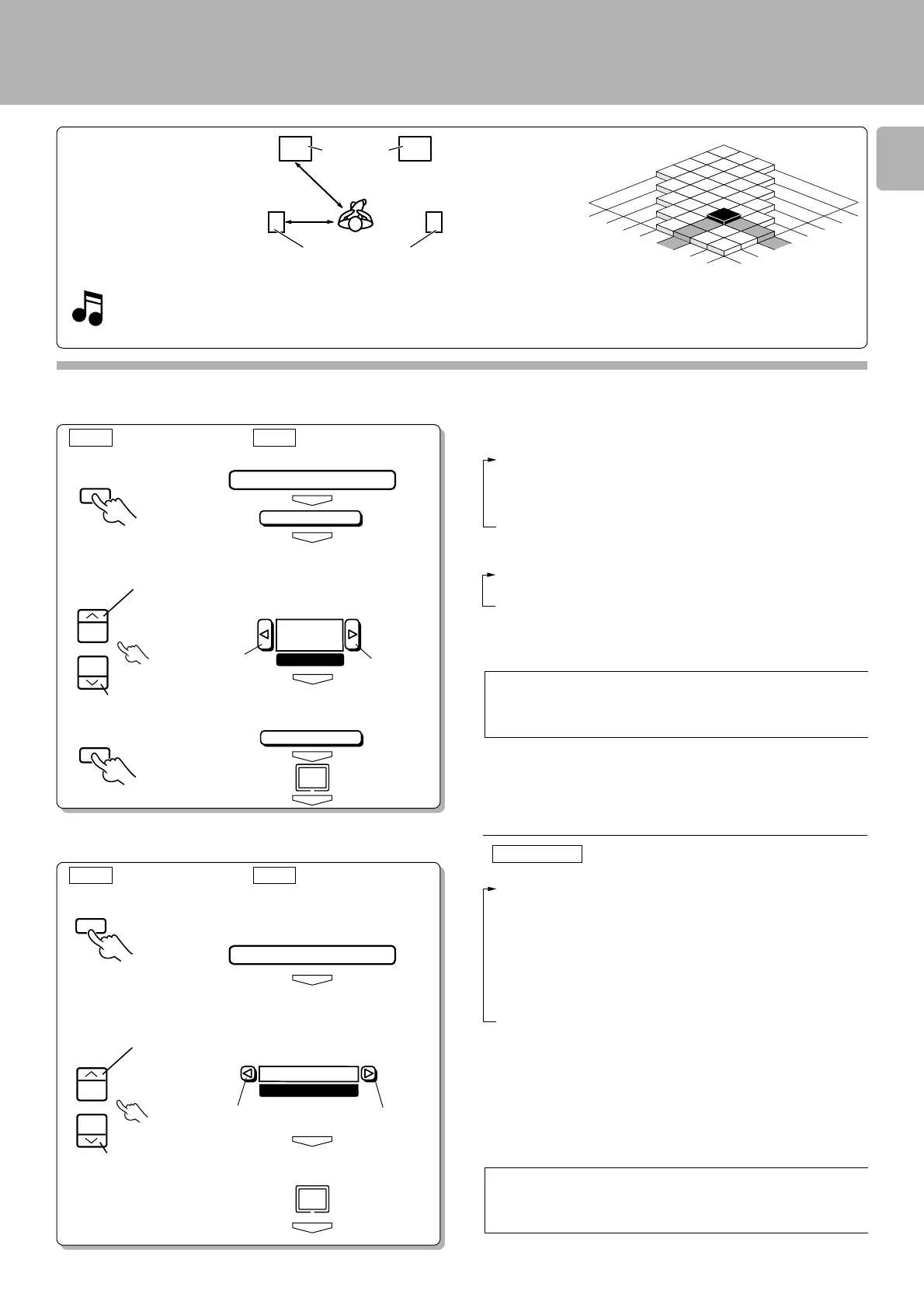

How to calculate the
proper delay time
Assuming that the distance from
the front speakers is A meters and
that from the surround speakers
is B meters:
Front
speakers
Surround
speakers
What is delay time?
The sound entering the ears include the direct sound coming from the sound source and the indirect sounds reflected from the walls, floor,
ceiling, etc. The indirect sounds are delayed because they travel longer distance required for reflection before they reach the ears. The delay
time is the difference in time between the direct sound and indirect sounds.
1 Use the delay time calcula-
tion chart on the right.
Example:
When A = 3 m,B = 3 m,
the delay time is 20 ms.
2 Use the following
formula for calculation.
Delay time =
20 + 3 × (A - B) (Unit: ms)
Adjust the level from each speaker. “Test Tone”
1 Output the ”Test Tone“.
2 Adjust the levels of the other speakers than the front
speakers (left, right).
(1)While test tone is output from a speaker,
(2)Adjust the volume level of the speaker.
3 Quit the speaker level adjustment.
To decrease
level
To increase
level
Adjust the delay time. “DELAY”
1 Select the Delay Time adjustment display.
2 Adjust the Delay Time.
3 Quit the delay time adjustment.
To decrease
To increase
To decrease
To increase
÷ The test tone which sounds like noise move across speakers in the
following sequence every 1.5 second.
(In Pro Logic mode)
TEST Lch (Front speaker, Left)
TEST Cch (Center speaker)
TEST Rch (Front speaker, Right)
TEST SRch (Surround speaker, Right)
TEST SLch (Surround speaker, Left)
(In 3 STEREO mode)
TEST Lch (Front speaker, Left)
TEST Cch (Center speaker)
TEST Rch (Front speaker, Right)
Display when test tone is output from a surround speaker
÷ Be sure to adjust from the listening position.
÷ Each press of the key increases or decrease the level by 1 dB.
÷ The levels of the front speaker (Left, Right) cannot be varied in step 3.
Each press switches the adjustment items as shown below.
1 BASS :Tone, Bass
2 TREBLE :Tone, Treble
3 L- - - - - - -R :Balance
4 C ch :Center speaker
5 SR ch :Surround speaker, Right
6 SL ch :Surround speaker, Left
7 SW ch :Subwoofer
8 DELAY :Delay time
9 INPUT :Input level
÷ Adjustment items 5, 6 and 8 are not required in the 3 STEREO mode.
÷ Find the optimum delay time for the listening room by referring to “How
to calculate the delay time”.
÷ The delay time in the PRO LOGIC mode can be adjusted between 15 and
30 ms.
÷ Select the closest value to the value obtained by “How to calculate the
delay time”.
Delay time
Ambience effects
RC/Main unit
T
E
sT
s
Rch
ms
D
E
LA
Y
2)
RC
GRC
TEST
TONE
TEST
TONE
To decrease
level
To increase
level
RC
GRC
LEVEL
MULTI
CONTROL
MODE
LEVEL
MULTI
CONTROL
Test Tone
ENTER
Test Tone
ENTER
To Next Page
