Kenwood C-V351 User Manual

6
C-V351/C-V301 (EN)

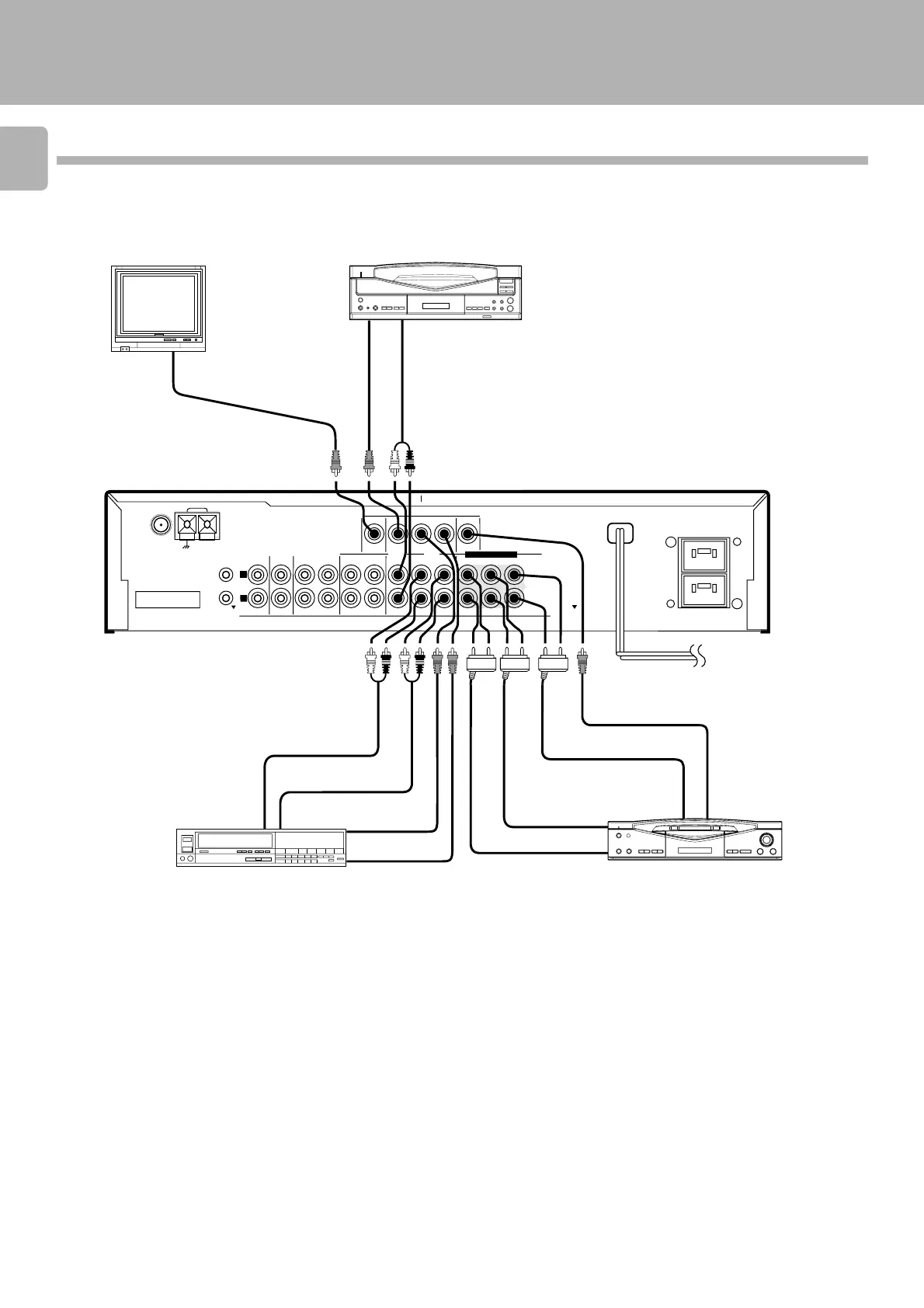

Connection of video components
(LD player, VCR, DVD)
Audio OUT
Audio IN
Video IN
Video OUT
DVD
VCR
Audio
OUT
Video
IN
Video
OUT
To wall AC outlet
The connected components are given as examples because the avail-
able models vary depending on marketing areas.
Monitor TV
LD player
System connection
ANTENA
AM
FM 75Ω
GND
SYSTEM
CONTROL
CD
AUX TAPE 1/ MD
IN
IN REC
PLAY
TAPE 2
(MONITOR)
AUDIO
REC
PLAY
MONITOR
OUT
VIDEO
UNSWITCHED
L
R
CONNECT WITH
POWER AMPLIFIER
IN REC
PLAY
VCR
FRONT
SURROUND
CENTER
SUBWOOFER
DVD 6CH.INPUTDVD 6CH.INPUT
LD
/DVD
Video OUT
Audio CENTER OUT/
SUBWOOFER OUT
Audio FRONT OUT
Audio SURROUND OUT

Kenwood C-V351 Specifications

Audio

total harmonic distortion	0.01 %
signal to noise ratio CD	93 dB
input sensitivity / impedance CD	200 mV / 47kΩ

FM Tuner

tuning frequency range	87.5 MHz~108 MHz
usable sensitivity MONO	1.2 µV (at 75 Ω) / 13.2 dBf
signal to noise ratio MONO	65 dB (65.2 dBf input)

Weight and Dimensions

dimensions	W:400 mm H:105 mm D:382 mm
weight	5.2 kg
power consumption	25 W
