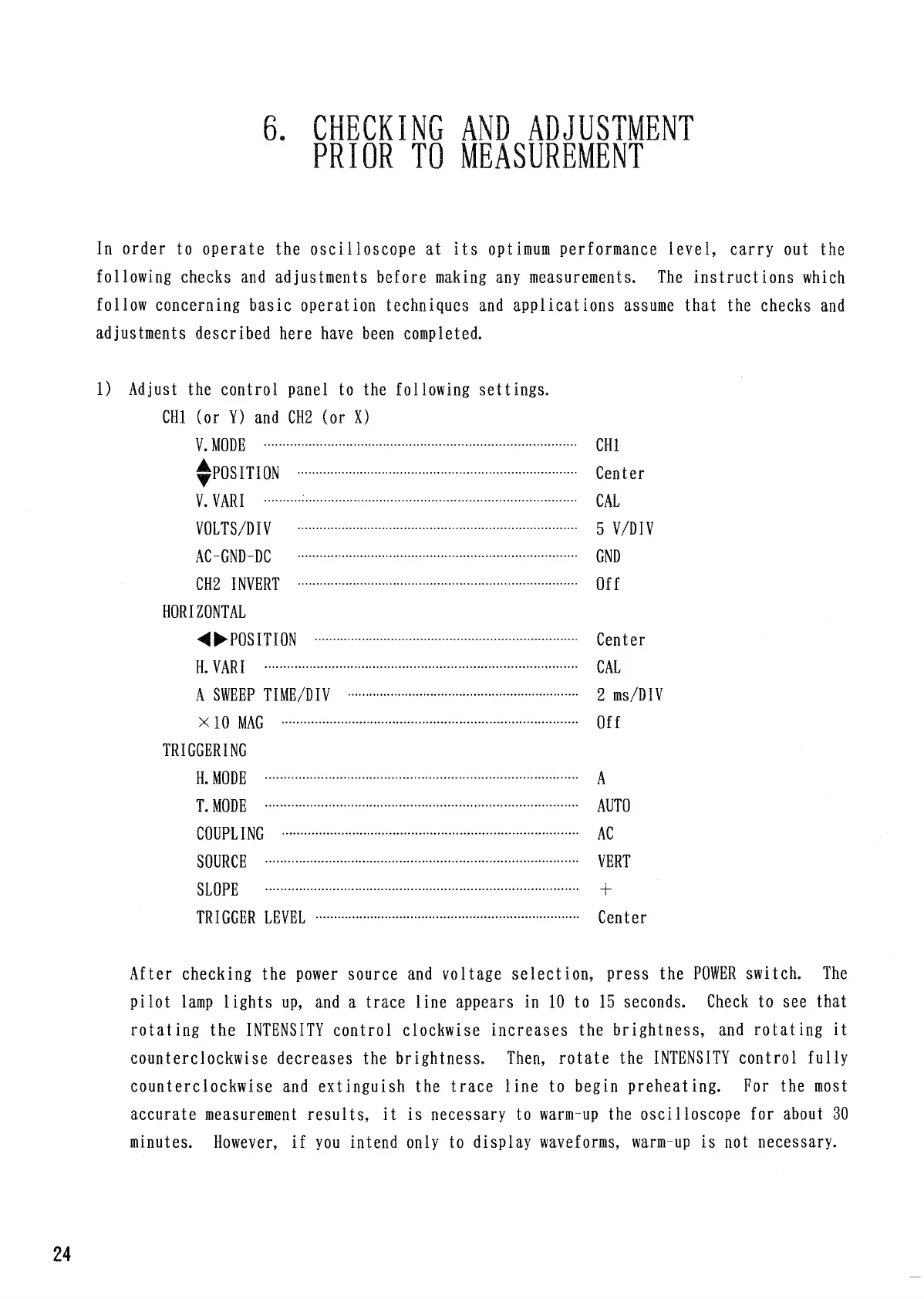

6. CHECKING AND ADJUSTMENT
PRIOR TO MEASUREMENT
In order to operate the oscilloscope at its optimum performance level, carry out the
following checks and adjustments before making any measurements. The instructions which
follow concerning basic operation techniques and applications assume that the checks and
adjustments described here have been completed.
1) Adjust the control panel to the following settings.
CHI (or Y) and CH2 (or X)
V. MODE CHI
^POSITION Center
V. VARI • CAL
VOLTS/DIV 5 V/DIV
AC-GND-DC GND
CH2 INVERT Off
HORIZONTAL
^•POSITION Center
H. VARI CAL
A SWEEP TIME/DIV 2 ms/DIV
x 10 MAG Off
TRIGGERING
H. MODE A
T. MODE AUTO
COUPLING • • AC
SOURCE • VERT
SLOPE - • +
TRIGGER LEVEL Center
After checking the power source and voltage select ion, press the POWER switch. The
pi lot lamp 1ights up, and a trace line appears in 10 to 15 seconds. Check to see that
rotating the INTENSITY control clockwise increases the brightness, and rotating it
counterclockwise decreases the brightness. Then, rotate the INTENSITY control fully
counterclockwise and extinguish the trace line to begin preheat ing. For the most
accurate measurement results, it is necessary to warm-up the osci1loscope for about 30
minutes. However, if you intend only to display waveforms, warm-up is not necessary.
