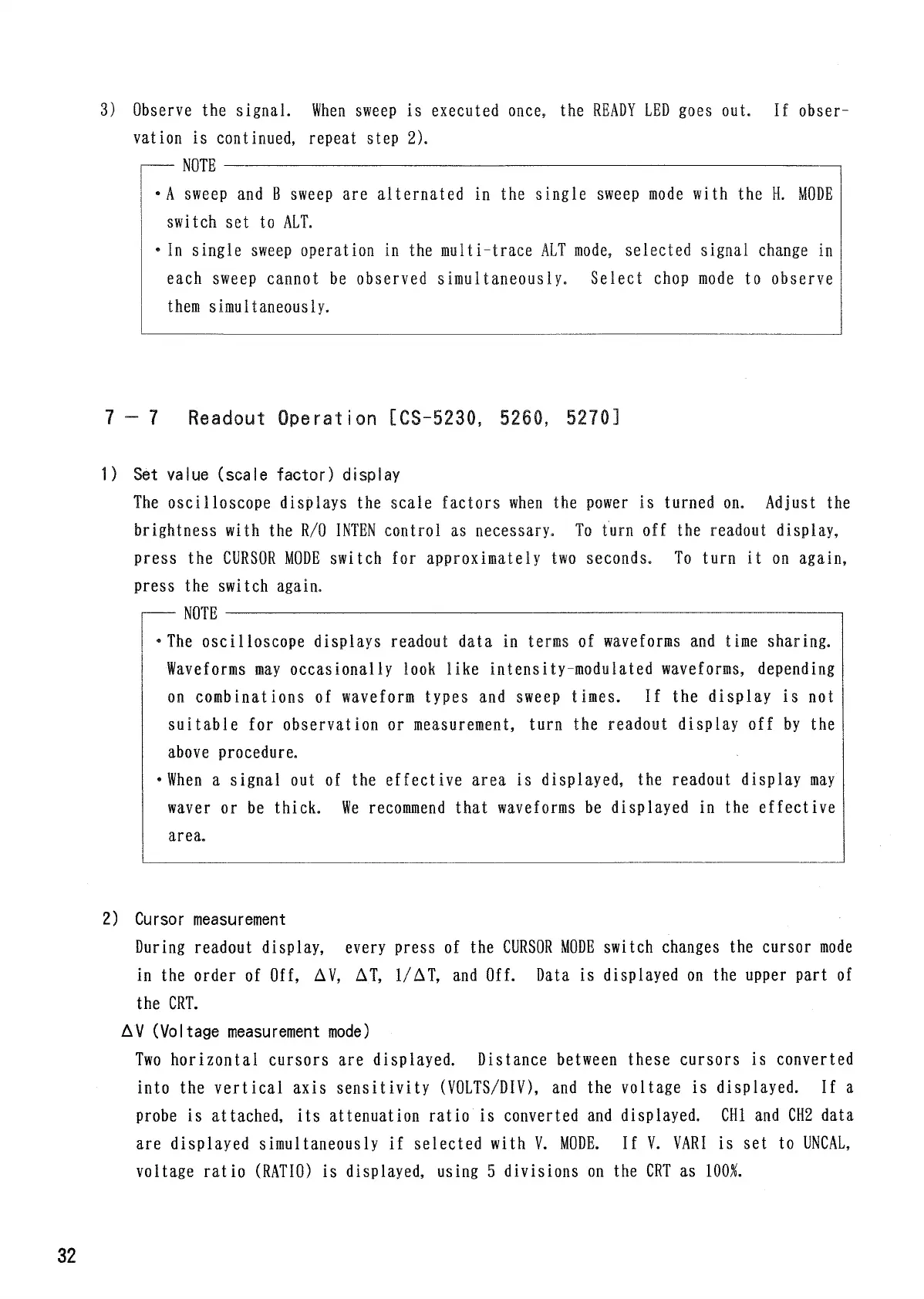

3) Observe the signal. When sweep Is executed once, the READY LED goes out. If obser-
vation Is continued, repeat step 2).
I NOTE • • • • 1
•A sweep and B sweep are alternated in the single sweep mode with the H. MODE
switch set to ALL
9
In single sweep operation In the multi-trace ALT mode, selected signal change in
each sweep cannot be observed simultaneously. Select chop mode to observe
them simultaneously.
7-7 Readout Operation [CS-5230, 5260, 5270]
1) Set value (scale factor) display
The oscilloscope displays the scale factors when the power is turned on. Adjust the
brightness with the R/0 INTEN control as necessary. To turn off the readout display,
press the CURSOR MODE switch for approximately two seconds. To turn it on again,
press the switch again.
NOTE — ——— —_—
:
—
• The oscilloscope displays readout data in terms of waveforms and time sharing.
Waveforms may occasionally look like intensity-modulated waveforms, depending
on combinations of waveform types and sweep times. If the display is not
suitable for observation or measurement, turn the readout display off by the
above procedure.
• When a signal out of the effective area is displayed, the readout display may
waver or be thick. We recommend that waveforms be displayed in the effective
area.
2) Cursor measurement
During readout display, every press of the CURSOR MODE switch changes the cursor mode
in the order of Off, AV, AT, 1/AT, and Off. Data is displayed on the upper part of
the CRT.
AV (Voltage measurement mode)
Two horizontal cursors are displayed. Distance between these cursors is converted
into the vertical axis sensitivity (VOLTS/DIV), and the voltage is displayed. If a
probe is attached, its attenuation ratio is converted and displayed. CHI and CH2 data
are displayed simultaneously if selected with V. MODE. If V. VARI is set to UNCAL,
voltage ratio (RATIO) is displayed, using 5 divisions on the CRT as 1001
32
