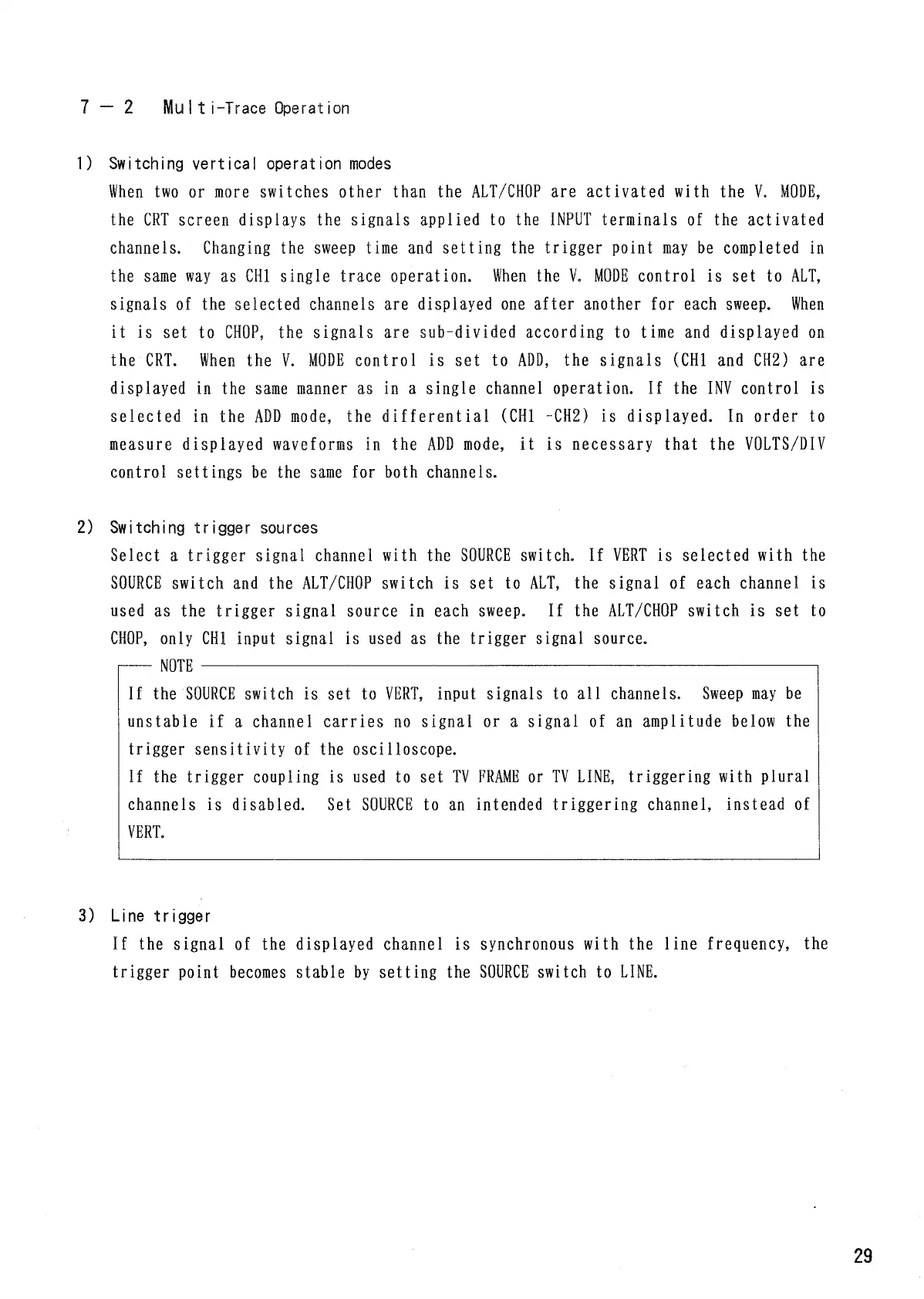

7 — 2 Mu 11 i-Trace Operation
1) Switching vertical operation modes
When two or more switches.other thai the ALT/CHOP are activated with the V. MODE,
the CRT screen displays the signals applied to the INPUT terminals of the activated
channels. Changing the sweep time.and setting the trigger point may be completed In
the same way as Cll single trace operation. When the V. MODE control is set to ALT,
signals of the selected channels are displayed one after another for each sweep. When
it is set to CHOP, the signals are sub-divided according to time and displayed on
the CRT. When the V. MODE control is set to ADD, the signals (CHI and CH2) are
displayed in the same manner as in a single channel operation. If the INV control is
selected in the ADD mode, the differential (CHI -CH2) is displayed. In order to
measure displayed waveforms in the ADD mode, it is necessary that the VOLTS/DIV
control settings-be.the same for both channels.
2) Switching trigger sources
Select a trigger signal channel with the SOURCE switch. If VERT is selected with the
SOURCE switch and the ALT/CHOP switch is set to ALT, the signal of each channel is
used as the trigger signal source in each sweep. If the ALT/CHOP switch is set to
CHOP, only CHI input signal is used as the trigger signal source.
.
N0TE
—_ __
:
__—_ _____ , ;—_
If the SOURCE switch is set to VERT, input signals to all channels. Sweep may be
unstable if a channel carries no signal or a signal of an amplitude below the
trigger sensitivity of the oscilloscope.
If the trigger coupling is used to set TV FRAME or TV LINE, triggering with plural
: channels is disabled. Set SOURCE to an intended triggering channel, instead of
VERT.
3) Line trigger
If the signal of the displayed channel is synchronous with the line frequency, the
trigger point becomes stable by setting the SOURCE switch to LINE.
29
