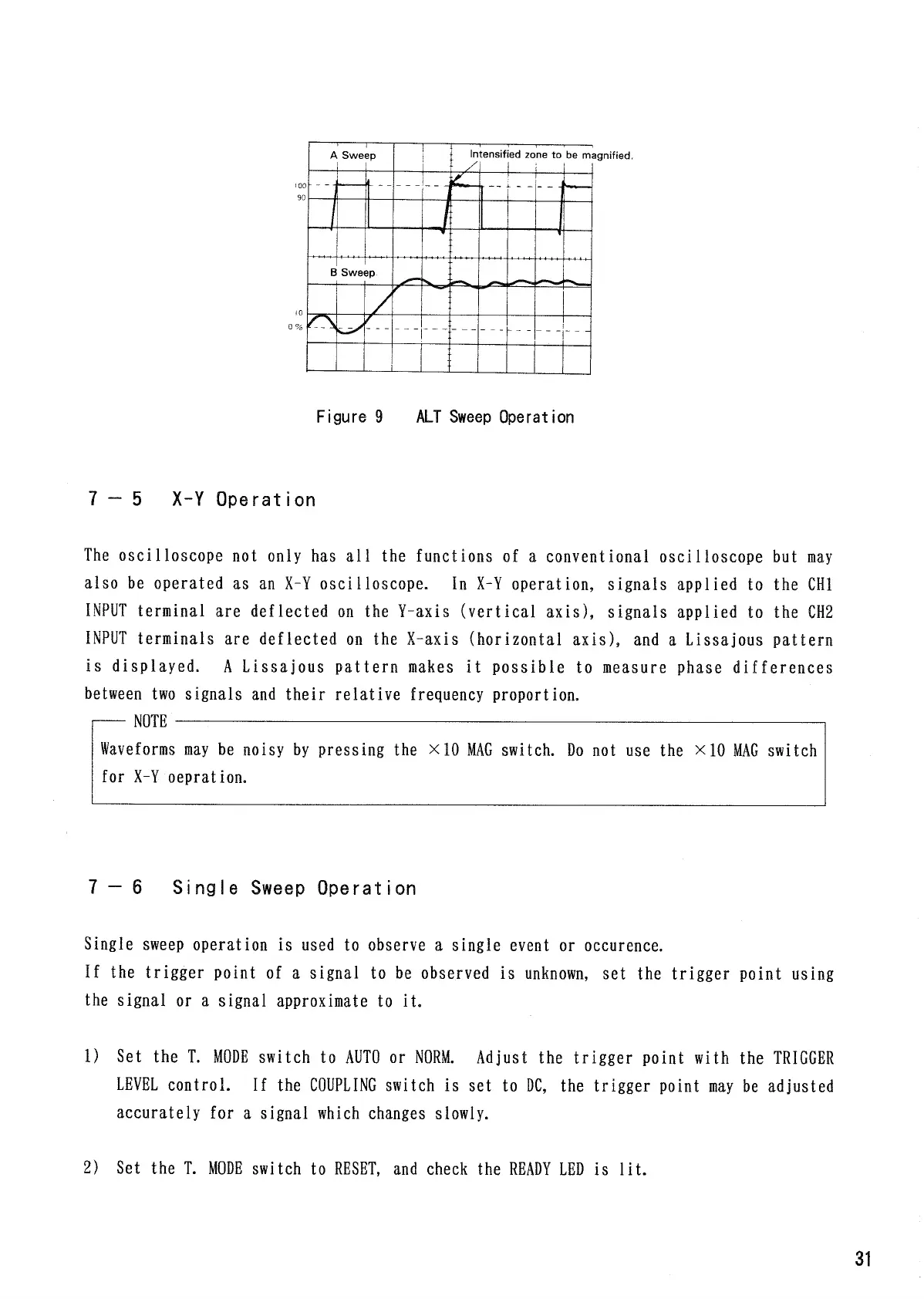

Figure 9 ALT Sleep Operation
7-5 X-Y Operation
The oscilloscope not only has all the functions of a conventional osci1loscope but may
also be operated as an X-Y osci 1 loscope. In X-Y operation, signals applied to the CHI
INPUT terminal are deflected on the Y-axis (vertical axis), signals applied to the CH2
INPUT terminals are deflected on the X-axis (horizontal axis), and a Lissajous pattern
is displayed. A Lissajous pattern makes it possible to measure phase differences
between two signals and their relative frequency proportion.
| NOTE 1
Waveforms may be noisy by pressing the x10 MAG switch. Do not use the x10 MAG switch
for X-Y oepration.
7 — 6 Single Sweep Operat i on
Single sweep operation is used to observe a single event or occurence.
If the trigger point of a signal to be observed is unknown, set the trigger point using
the signal or a signal approximate to it.
1) Set the T. MODE switch to AUTO or NORM. Adjust the trigger point with the TRIGGER
LEVEL control. If the COUPLING switch is set to DC, the trigger point may be adjusted
accurately for a signal which changes slowly.
2) Set the T. MODE switch to RESET, and check the READY LED is lit.
31
A Sweep
B Sweep.
intensified zone to be magnified.
