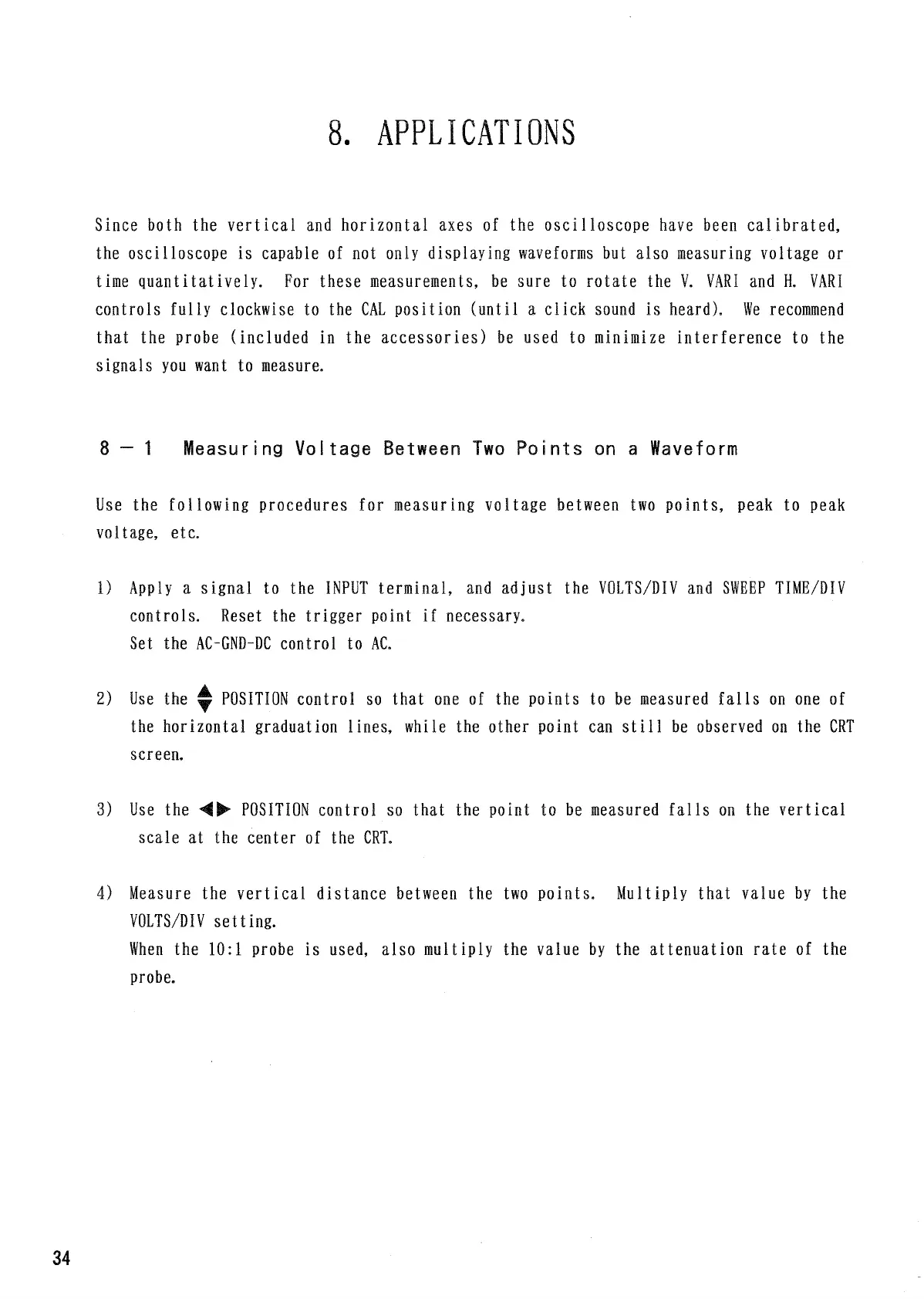

8. APPLICATIONS
Since
both the
vertical
and
horizontal
axes
of the
oscilloscope
have been
calibrated,
the oscilloscope
is
capable
of not
only
displaying
waveforms but
also
measuring
voltage
or
time
quantitatively.
For
these
measurements, be
sure
to
rotate
the V. VARI and H. VARI
controls
fully
clockwise
to the CAL
position
(until
a
click
sound is
heard).
We
recommend
that
the probe
(included
in the
accessories)
be used to
minimize
interference
to the
signals
you want to measure.
8 1
measuring
Woltage
Between
Two Po
i
nts on a
Waveform
Use the
following
procedures
for
measuring
voltage
between two
points,
peak to peak
voltage,
etc.
1)
Apply a
signal
to the
INPUT
terminal,
and
adjust
the
VOLTS/DIV
and
SWEEP
TIME/DIV
controls.
Reset
the
trigger point
if
necessary.
Set
the
AC-GND-DC
control
to AC.
2)
Use the y POSITION
control
so
that
one of the
points
to be measured
falls
on one of
the horizontal
graduation
lines,
while
the
other
point
can
still
be
observed
on the CRT
screen.
3)
Use the POSITION
control
so
that
the
point
to be measured
falls
on the
vertical
scale
at the
center
of the CRT.
4)
Measure the
vertical
distance
between the two
points. Multiply that value
by the
VOLTS/DIV
setting.
When
the 10:1 probe is
used,
also multiply
the
value
by the
attenuation rate
of the
probe.
34
