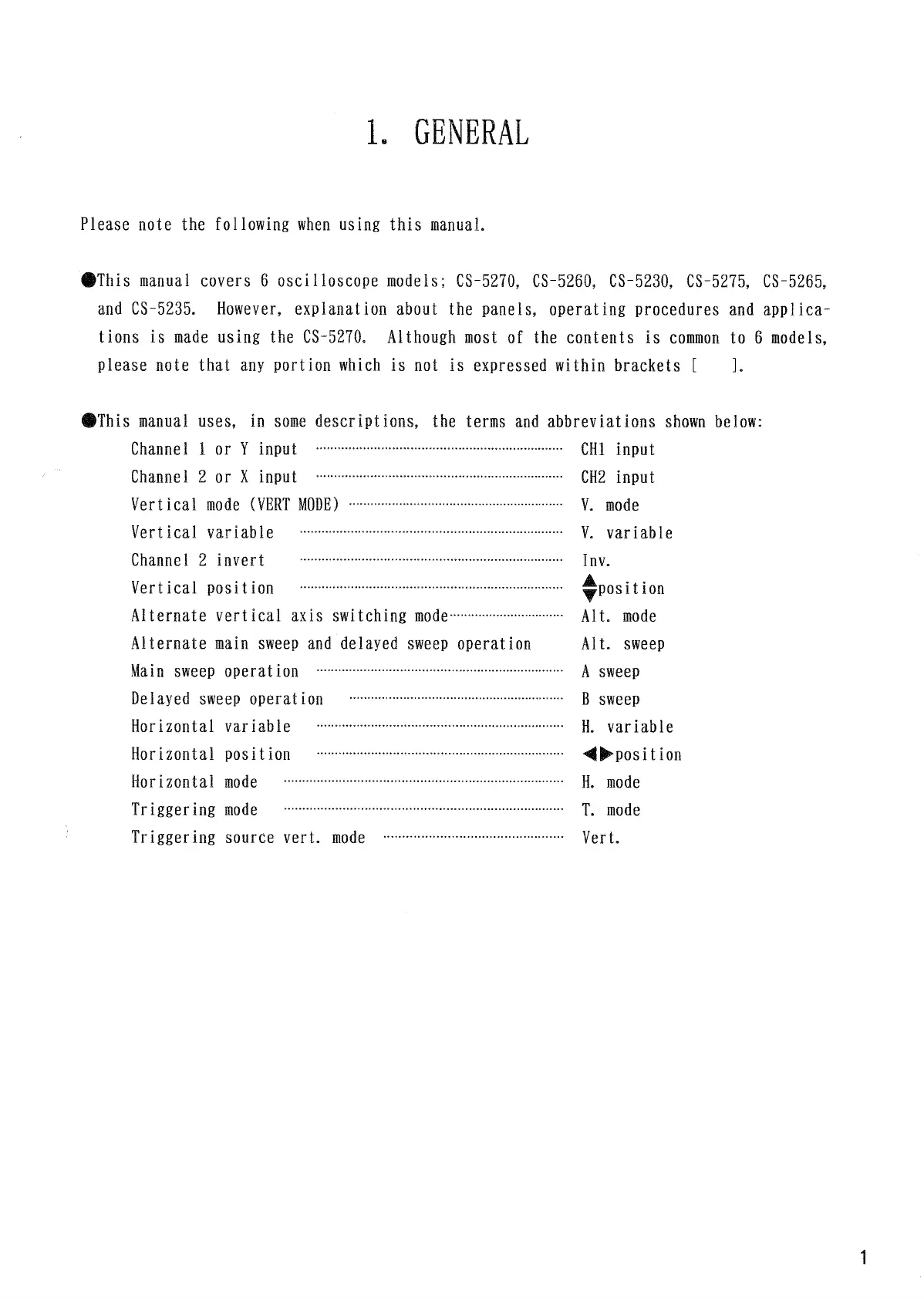

GENERAL
Please note the following when using this manual.
•This manual covers 6 oscilloscope models; CS-5270, CS-5260, CS-5230, CS-5275, CS-5265,
and CS-5235. However, explanation about the panels, operating procedures and applica-
tions is made using the CS-5270. Although most of the contents is common to 6 models,
please note that any portion which is not is expressed within brackets [ ].
•This manual uses, in some descriptions, the terms and abbreviations shown below:
Channel 1 or Y input CHI input
Channel 2 or X input CH2 input
Vertical mode (VERT MODE) V. mode
Vertical variable V. variable
Channel 2 invert .. Inv.
Vertical position yposition
Alternate vertical axis switching mode Alt. mode
Alternate main sweep and delayed sweep operation Alt. sweep
Main sweep operation A sweep
Delayed sweep operation - • • B sweep
Horizontal variable h. variable
Horizontal position • • ^•position
Horizontal mode
m
ode
Triggering mode ^ mode
Triggering source vert, mode — • Vert.
1
