INSTALLING/ REMOVING THE (OPTIONAL) BATTERY PACK OR
BATTERY CASE

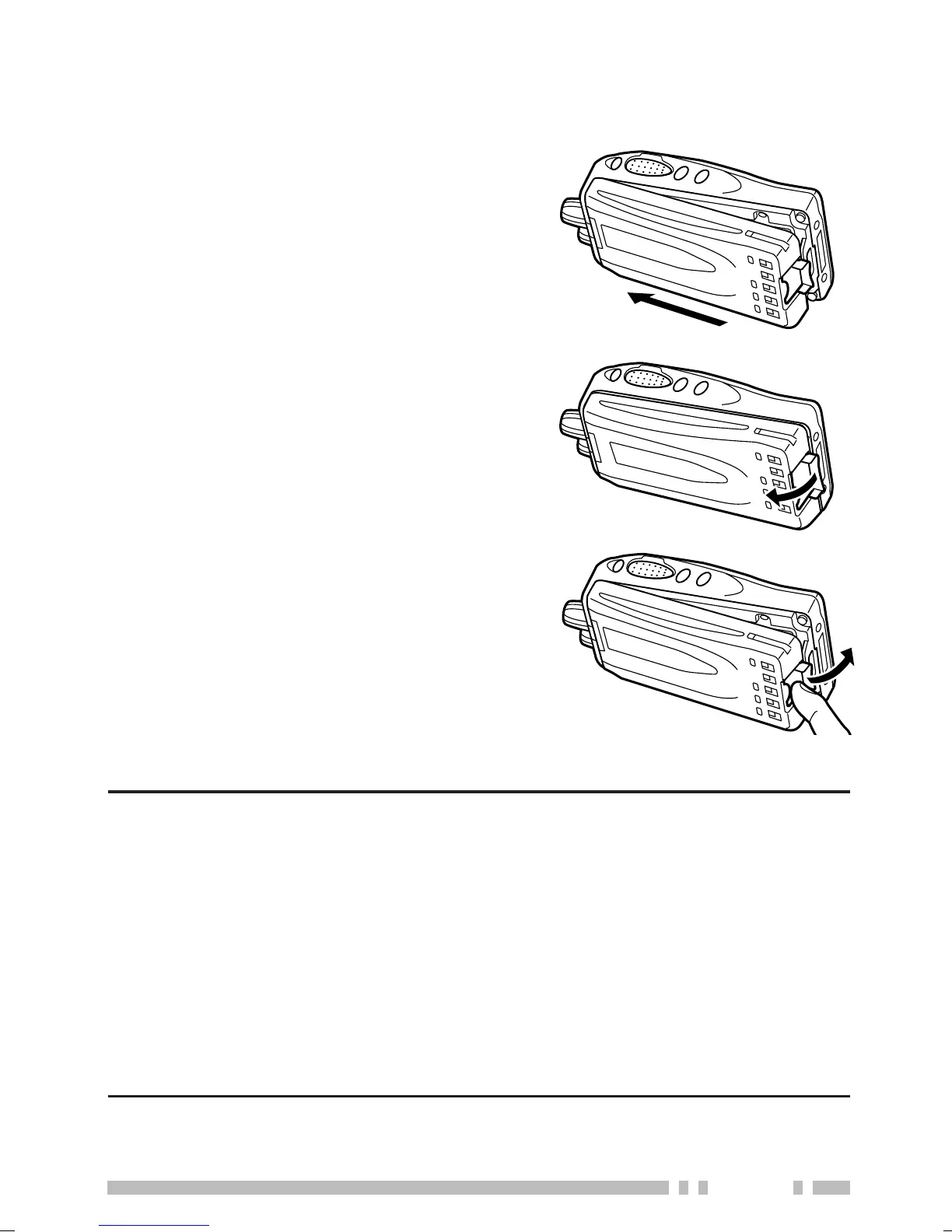

1 Align the battery pack with the
back of the transceiver, then
press the battery pack and
transceiver firmly together until
the release latch clicks, locking it
in place.
2 Lock the safety catch into place
to prevent accidentally pressing
the release latch and removing
the battery.
3 To remove the battery pack, lift
the safety catch on the base of
the transceiver, then press the
release latch underneath the
safety catch while pulling the
battery pack away from the
transceiver.
Note:
◆ To lift the battery pack safety catch, use a piece of hardened
plastic or metal, such as a screwdriver, that is no more than 6 mm
wide and 1 mm thick. It is imperative that you place the
implement under only the lip of the safety catch so that you do
not damage the release latch.
◆ Before charging a battery pack that is attached to the transceiver,
ensure that the safety catch is firmly closed.
◆ While operating the transceiver using a Li-ion or Ni-MH battery
pack in areas with an ambient temperature of –10°C/ +14°F and
lower, operating time may be shortened.

Kenwood TK-2170 Specifications

General Specifications

frequency range	136~174MHz
number of channels	Max. 128 per radio
channel spacing	Wide: 25, 30kHz; Narrow: 12.5, 15kHz
battery voltage	7.5V DC ± 20%
antenna impedance	50Ω
channel frequency spread	38MHz

Battery

battery life with KNB-24L (1400mAh)	9 hours
battery life with KNB-25A (1200mAh)	8 hours
battery life with KNB-26N (2000mAh)	12 hours
battery life with KNB-35L (1950mAh)	11 hours

Operating Environment

operating temperature range	–22°F~+140°F (–30°C~+60°C)
frequency stability	± 0.00025% (–22°F~+140°F)

Receiver

sensitivity (12dB SINAD) Wide	0.25µV
sensitivity (12dB SINAD) Narrow	0.28µV
selectivity Wide	70dB
selectivity Narrow	65dB
intermodulation distortion Wide	65dB
intermodulation distortion Narrow	60dB
spurious response	65dB
audio output (8Ω impedance)	500mW with less than 5% distortion

Transmitter

RF power output HI	5W
RF power output LO	1W
spurious response	70dB
modulation Wide	16K0F3E
modulation Narrow	11K0F3E
FM hum & noise Wide	45dB
FM hum & noise Narrow	43dB
audio distortion W/N	Less than 5%

Weight and Dimensions

weight with battery, antenna, and beltclip	12.0 oz. (340 g)
dimensions with KNB-24L or 35L battery	56 x 109 x 31.7 mm
dimensions with KNB-25A or 26N battery	56 x 109 x 37.9 mm
