Kenwood TK-2170 User Manual

12
tt
tt
t Safety Catch
Lock this catch to avoid accidentally pressing the release
latch and removing the battery pack {page 7}.
yy
yy
y Release Latch
Press the release latch to unlock and remove the battery
pack {page 7}.
uu
uu
u Auxiliary (orange) key
Press to activate its programmable function {page 14}.
ii
ii
i PTT (Push-To-Talk) switch
Press this switch, then speak into the microphone to call a
station.
oo
oo
o Side 1 key
Press to activate its programmable function {page 14}.
!0!0
!0!0
!0 Side 2 key
Press to activate its programmable function {page 14}.
!1!1
!1!1
!1 S, A, <B, and C> keys
Press to activate their programmable functions {page 14}.
!2!2
!2!2
!2 DTMF keypad
Press the keys on the keypad to make DTMF calls
{page 28}.
!3!3
!3!3
!3 Speaker/ microphone jacks
Connect an optional speaker/ microphone here {page 10}.
Otherwise, keep the supplied cap in place.

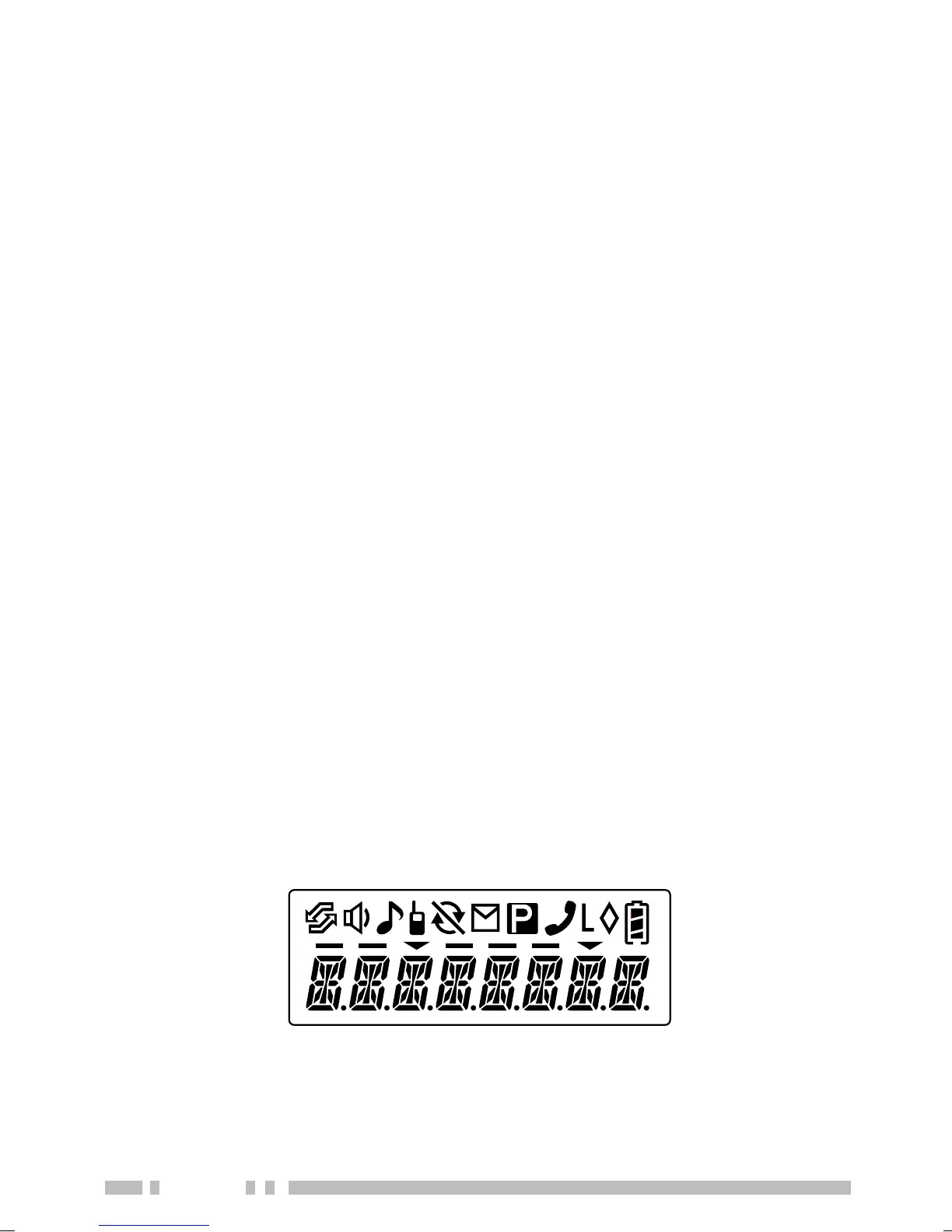

DISPLAY
The display icons appear when certain operations are
performed or specific features are activated:

Kenwood TK-2170 Specifications

General Specifications

frequency range	136~174MHz
number of channels	Max. 128 per radio
channel spacing	Wide: 25, 30kHz; Narrow: 12.5, 15kHz
battery voltage	7.5V DC ± 20%
antenna impedance	50Ω
channel frequency spread	38MHz

Battery

battery life with KNB-24L (1400mAh)	9 hours
battery life with KNB-25A (1200mAh)	8 hours
battery life with KNB-26N (2000mAh)	12 hours
battery life with KNB-35L (1950mAh)	11 hours

Operating Environment

operating temperature range	–22°F~+140°F (–30°C~+60°C)
frequency stability	± 0.00025% (–22°F~+140°F)

Receiver

sensitivity (12dB SINAD) Wide	0.25µV
sensitivity (12dB SINAD) Narrow	0.28µV
selectivity Wide	70dB
selectivity Narrow	65dB
intermodulation distortion Wide	65dB
intermodulation distortion Narrow	60dB
spurious response	65dB
audio output (8Ω impedance)	500mW with less than 5% distortion

Transmitter

RF power output HI	5W
RF power output LO	1W
spurious response	70dB
modulation Wide	16K0F3E
modulation Narrow	11K0F3E
FM hum & noise Wide	45dB
FM hum & noise Narrow	43dB
audio distortion W/N	Less than 5%

Weight and Dimensions

weight with battery, antenna, and beltclip	12.0 oz. (340 g)
dimensions with KNB-24L or 35L battery	56 x 109 x 31.7 mm
dimensions with KNB-25A or 26N battery	56 x 109 x 37.9 mm
