Kenwood VR-6050 User Manual

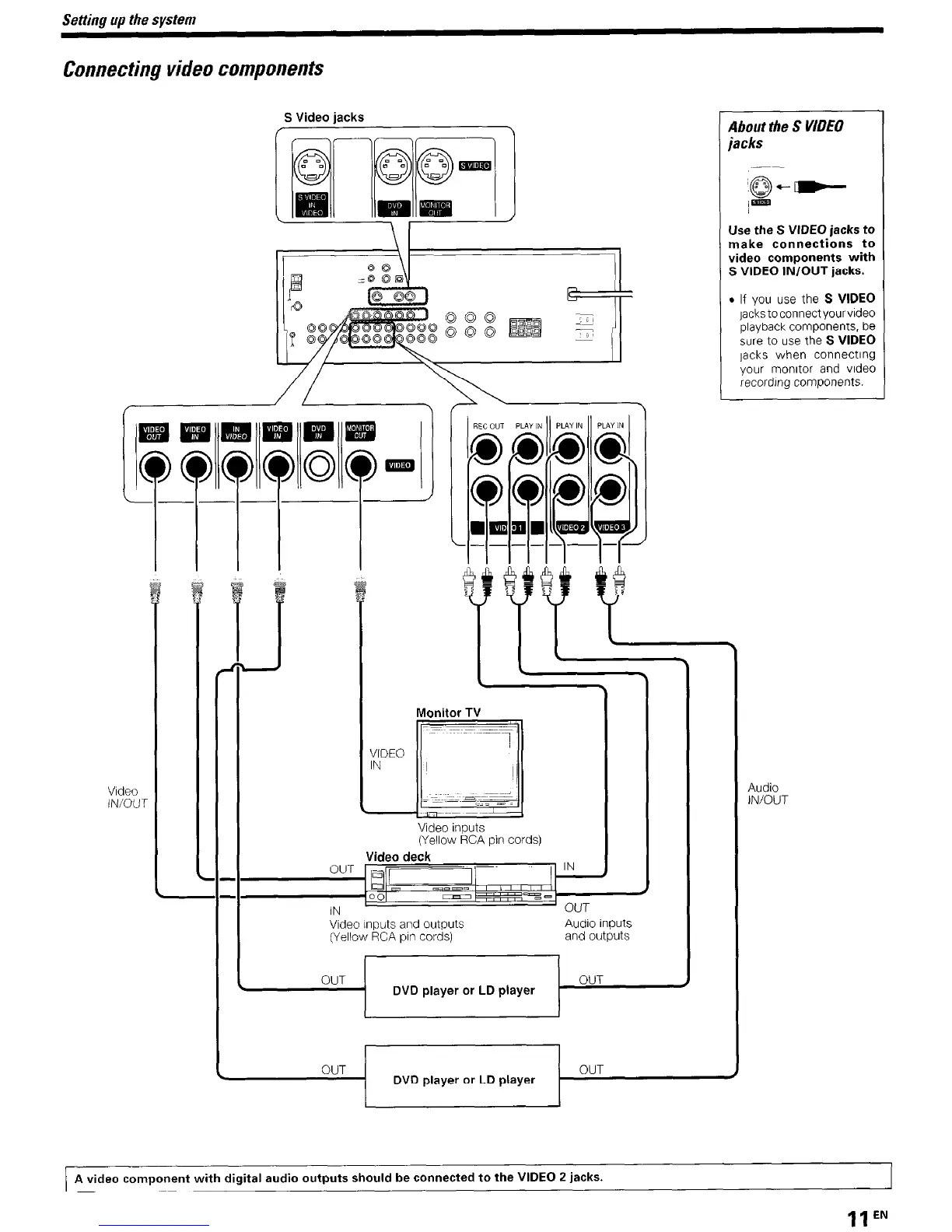

Connecting
video
components
S Video jacks
Video
IN/OUT
Use the S VIDEO jacks to
make connections to
video components with
S VIDEO IN/OUT jacks.
. If you use the S VIDEO
lackstoconnectyourvldeo
playback components, be
we to use the S VIDEO
lacks when connecting
your monitor and video
recording components.
Video deck
/‘-
IN
Monitor TV
Video Inputs
(Yellow RCA pin cords)
Video Inputs and outputs
Audio Inputs
(Yellow RCA pin cords)
and outputs
I
OUT
OUT
. DVD player or LD player
OUT
DVD player or LD player
OUT
Audio
IN/OUT
A video component with digital audio outputs should be connected to the VIDEO 2 jacks.
11 EN
