TP-6196 10/0916 Section 1 Specifications
1.7 S ervice Views
ADV-7466-
1. Muffler
2. Oil check
3. Oil fill
4. Air cleaner
5. Controller user interface (switch membrane)
6. Generator set master switch (RUN-OFF/RESET-AUTO)
7. Load circuit breaker (1-phase models)
8. Fuses
9. RS-232 connector (for application program updates)
10. Field-connection terminal block location
11. Spark plug locations (both sides)
12. Oil drain hose
13. Oil drain valve
14. Oil filter
15. Exhaust
16. Equipment ground
17. Starter relay
18. Battery charger
19. DSAI lead location
20. Fuel block
21. Gas regulator assembly
22. Fuel solenoid valve
23. Fuel inlet
24. Air intake
25. Engine starting battery location (battery purchased separately)
26. DSAI ground screw
27. Starter solenoid
28. Positive battery connection
29. Negative battery connection
7
6
5
8
9
Control Detail
See cont rol detail1 2 3 4
14 13
25
7
6
16
18 21
22
23
24
15
11
10
19 20
12
Fuel System Detail
26
28
29
27
17
21
22
23
20

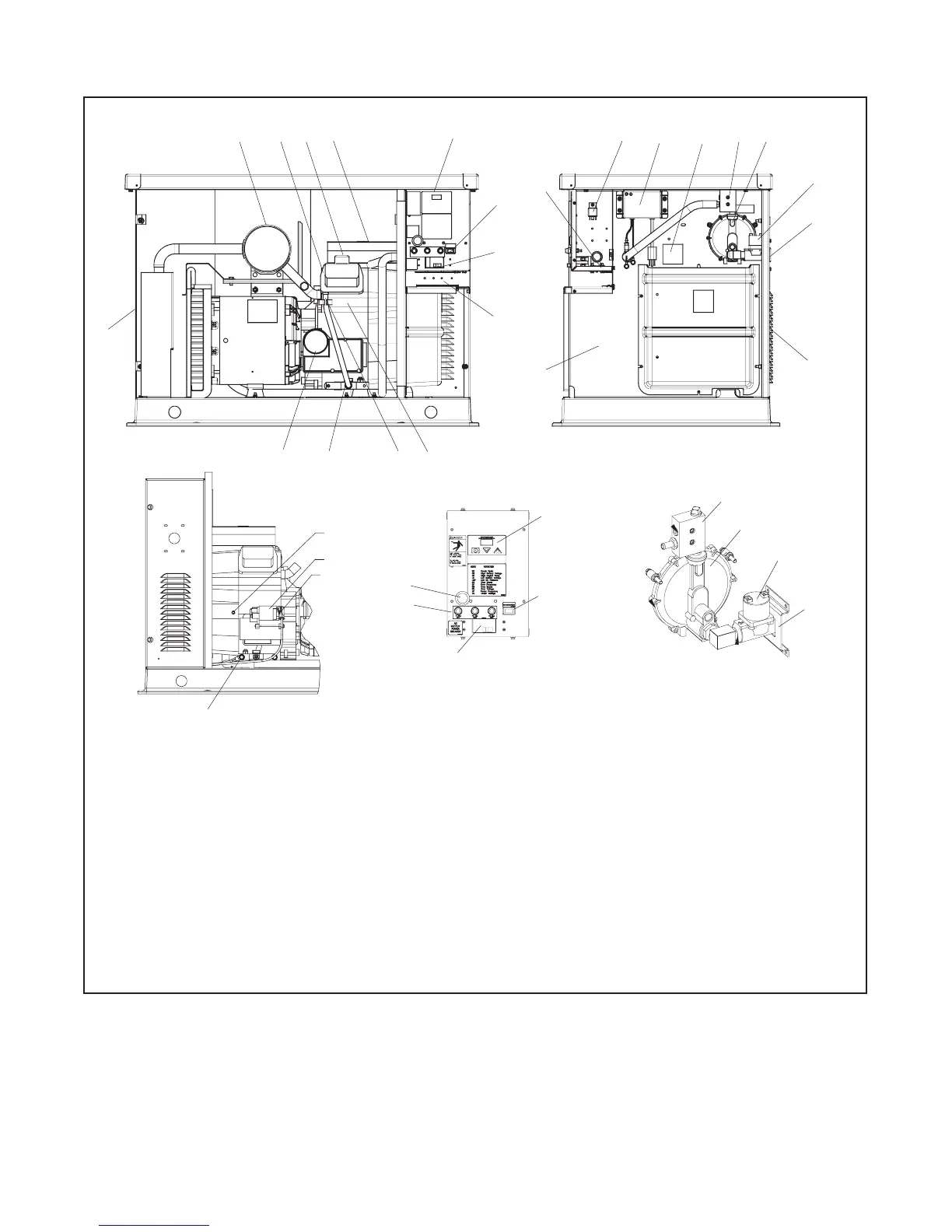

Figure 1-1 Generator Set Service View, 12 kW Model with ADC-RES Controller
