TP-6805 8/1522 Section 2 Scheduled Maintenance
2.2 Lubrication System
See Section 2.1, Service Schedule, for oil change and
oil filter replacement intervals. See Section 1.7, Service
View, for the oil drain, oil check, oil fill, and oil filter
locations.
2.2.1 Low Oil Pressure Shutdown
The low oil pressure (LOP) shutdown feature protects
the engine against internal damage if the oil pressure
drops below a minimum pressure because of oil pump
failure or other malfunction.
Note: The LOP shutdown feature does not protect
against damage caused by operating when the
oil level is low; it is not a low oil level shutdown.
Check the oil level regularly, and add oil as
needed.
2.2.2 Oil Check
The generator set is shipped with oil. Before operating
the generator set, check the engine oil in the crankcase.
See Figure 2-2 for the dipstick location.
Maintain the oil level at or near, not over, the full mark on
the dipstick. Add 5W-30 or 10W-30 synthetic oil when
the oil level is low. See Section 2.2.3, Engine Oil
Recommendation.
Check the oil level before each use. For extended
operation, check the oil level every 8 hours. Do not
check the oil level when the generator set is running.
Shut down the generator set and wait several minutes
before checking the oil.
6515

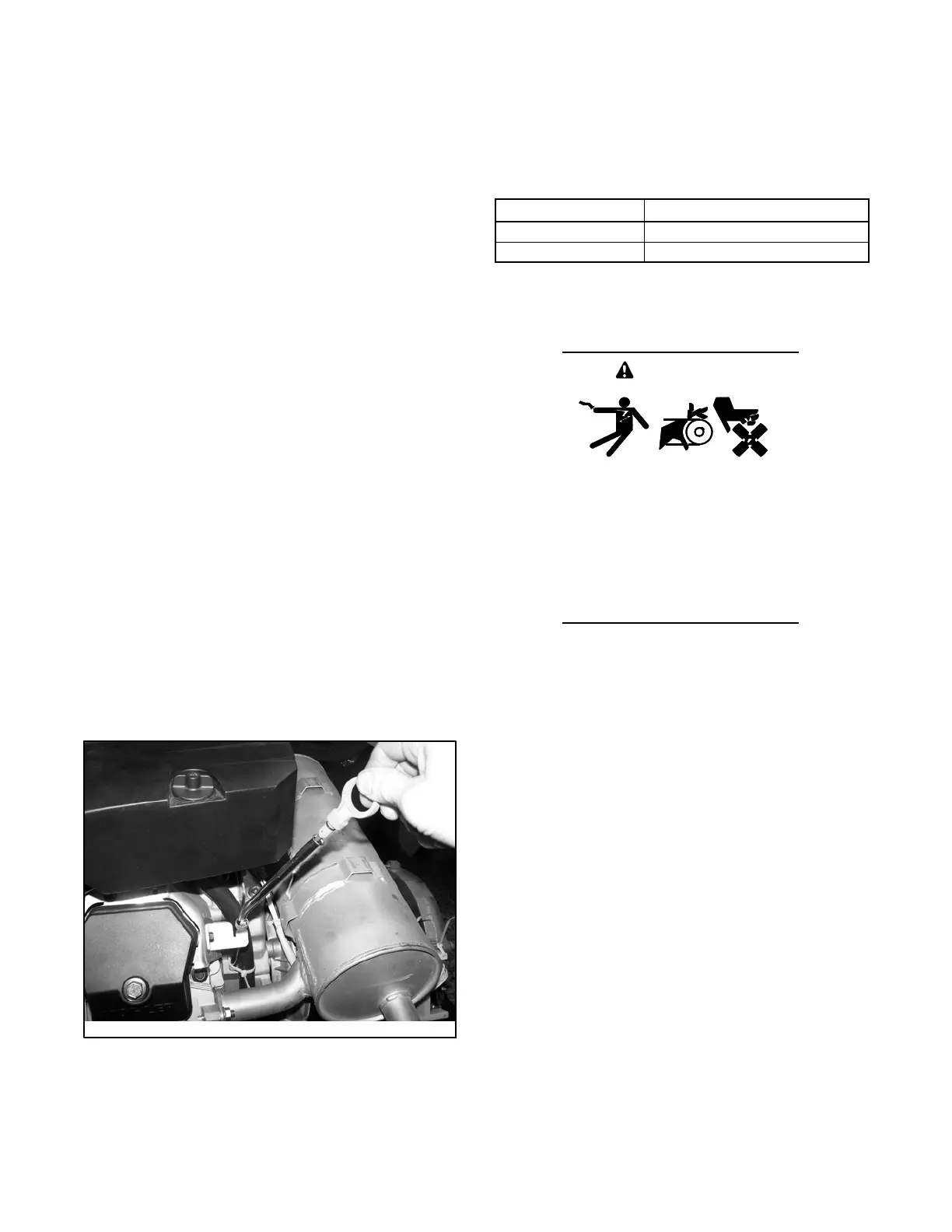

Figure 2-2 Oil Check
2.2.3 Engine Oil Recommendation
Use 5W-30 or 10W-30 API (American Petroleum
Institute) Service Class SG, SH, or SJ synthetic oil.
Synthetic oil oxidizes and thickens less than other oils
and leaves the engine intake valves and pistons cleaner.
Model Oil Capacity, L (qt.)
14 1.8 (1.9)
20 1.9 (2.0)
Figure 2-3 Oil Capacity (approximate)
2.2.4 Oil Change Procedure
Accidental starting.
Can cause severe injury or death.
Disconnect the battery cables before
working on the generator set.
Remove the negative (--) lead first
when disconnecting the battery.
Reconnect the negative (--) lead last
when reconnecting the battery.
WARNING
Disabling the generator set. Accidental starting can
cause severe injury or death. Before working on the
generator set or equipment connected to the set, disable the
generator set as follows: (1) Press the generator set off/reset
button to shut down the generator set. (2) Disconnect the
power to the battery charger, if equipped. (3) Remove the
battery cables, negative (--) lead first. Reconnect the negative
(--) lead last when reconnecting the battery. Follow these
precautions to prevent the starting of the generator set by the
remote start/stop switch.
Note: Dispose of all waste materials (engine oil, fuel,
filter, etc.) in an environmentally safe manner and
in accordance with all applicable laws.
Drain the oil while it is still warm.
1. Drain the oil.
a. Press the OFF button on the controller.
b. Remove the housing intake panel.
c. Disconnect the utility power to the generator
set.
d. Disconnect the generator set engine starting
battery, negative (--) lead first.
To Next Page
