TP-6519 8/17 55Section 5 Component Testing and Adjustment
5.7 Voltage Connections
5.7.1 Voltage Connections,
Single-Phase Models
Single-phase generator sets are available from the
factory connected for 110/220 volt 50 Hz or 120/240 volt
60 Hz. See Figure 5-11 for the factory connections.
Generator sets are not reconnectable.
4321
Stator Leads
LO
GRD
L2
L1
LO (Neutral)
Line
Side
Factory two-pole
circuit breaker
Ground
Load
Side
TP-5867
L0-L1
L0-L2
L1-L2
60 Hz
120 volt
120 volt
240 volt
50 Hz
110 volt
110 volt
220 volt

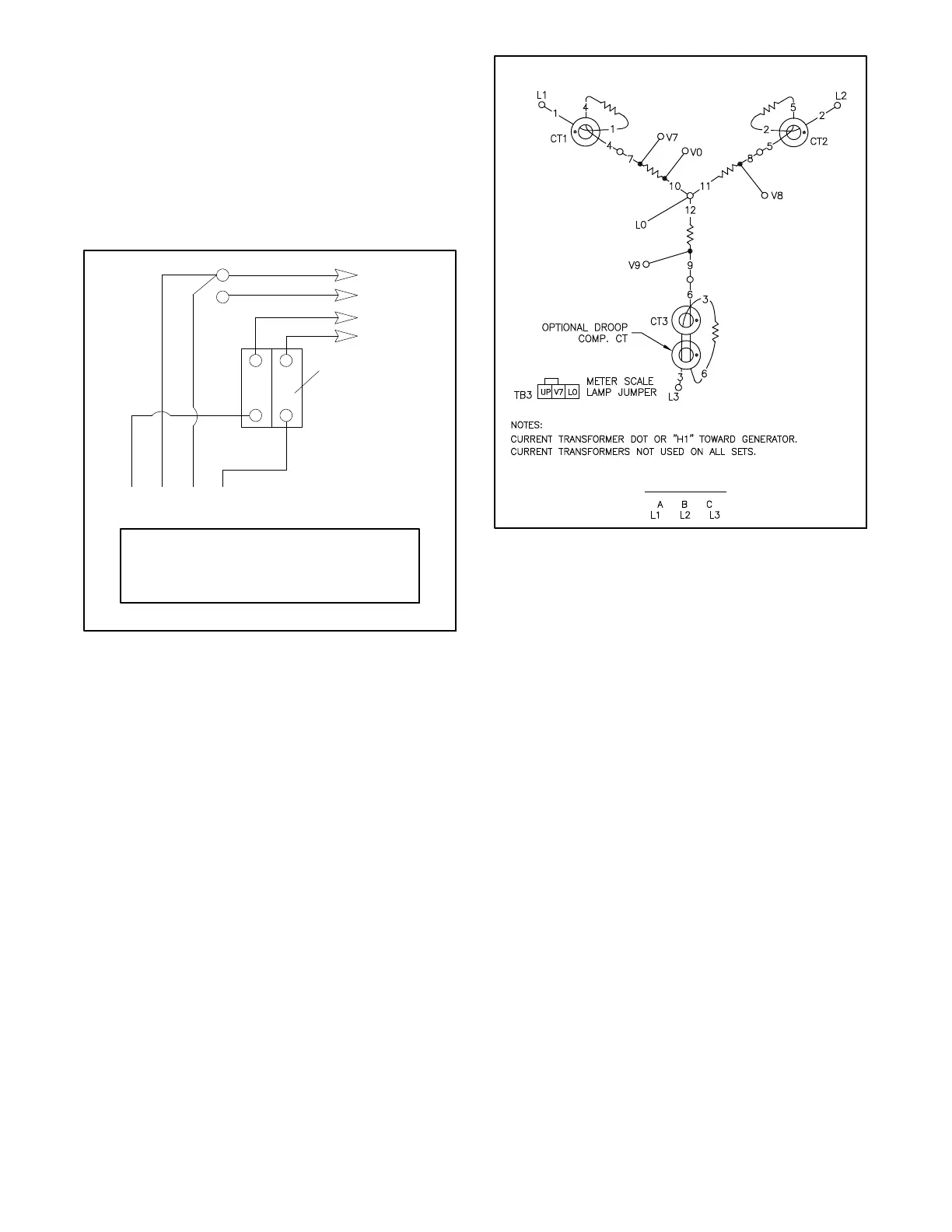

Figure 5-11 110/220 and 120/240 Volt, 3-Wire
Configurations
5.7.2 Voltage Connections, 3-Phase
Models
Three-phase model TRES generator sets are
connected for 230/400 Volts, 50 Hz. See Figure 5-12
for the factory connections. The generator sets are not
reconnectable.
Note: Current transformers (CTs) shown in Figure 5-12
are not used on these models.
ADV--5875
PHASE ROTATION
Figure 5-12 3-Phase Configuration
5.7.3 Voltage Regulation
Voltage regulation is performed by the controller and the
SCR module. The controller monitors generator output
voltage and adjusts the excitation current to the rotor
through the SCR module. See Section 4.8, Silicon
Controlled Rectifier module.
5.8 Voltage Adjustment
(ADC-RES only)
The factory sets the voltage for correct generator
operation under a variety of load conditions. Usually,
the voltage needs no further adjustment.
Adjust the voltage when necessary according to the
following procedure. The adjustment procedure
requires a meter that can measure voltage and
frequency.
Use the ADC-RES controller keypad to adjust the
voltage, gain, and volts/Hz. This section contains
instructions to adjust each setting and save the changes
using the controller keypad.
