TP-6519 8/1774 Section 6 Disassembly/Reassembly
6.2 Disassembly
The disassembly procedure provides important
information to minimize disassembly time and indicates
where special configurations exist which may require
taking notes.
Remove enclosure
Remove the generator set enclosure as described in the
following steps. See Figure 6-1.
1. Open the enclosure roof.
2. Place the generator set master switch in the OFF
position.
3. Remove the screws on one end of the roof stay to
disconnect the roof stay. See Figure 6-2.
4. Remove one roof hinge: Use two screwdrivers to
compress the hinge springs. See Figure 6-2.
5. Remove the r oof.
1. Roof
2. Right side door
3. Front panel
4. Heat shield (inside, not shown)
5. Left side panel
6. Rear panel
1
ADV7341
2
3
4
5
6

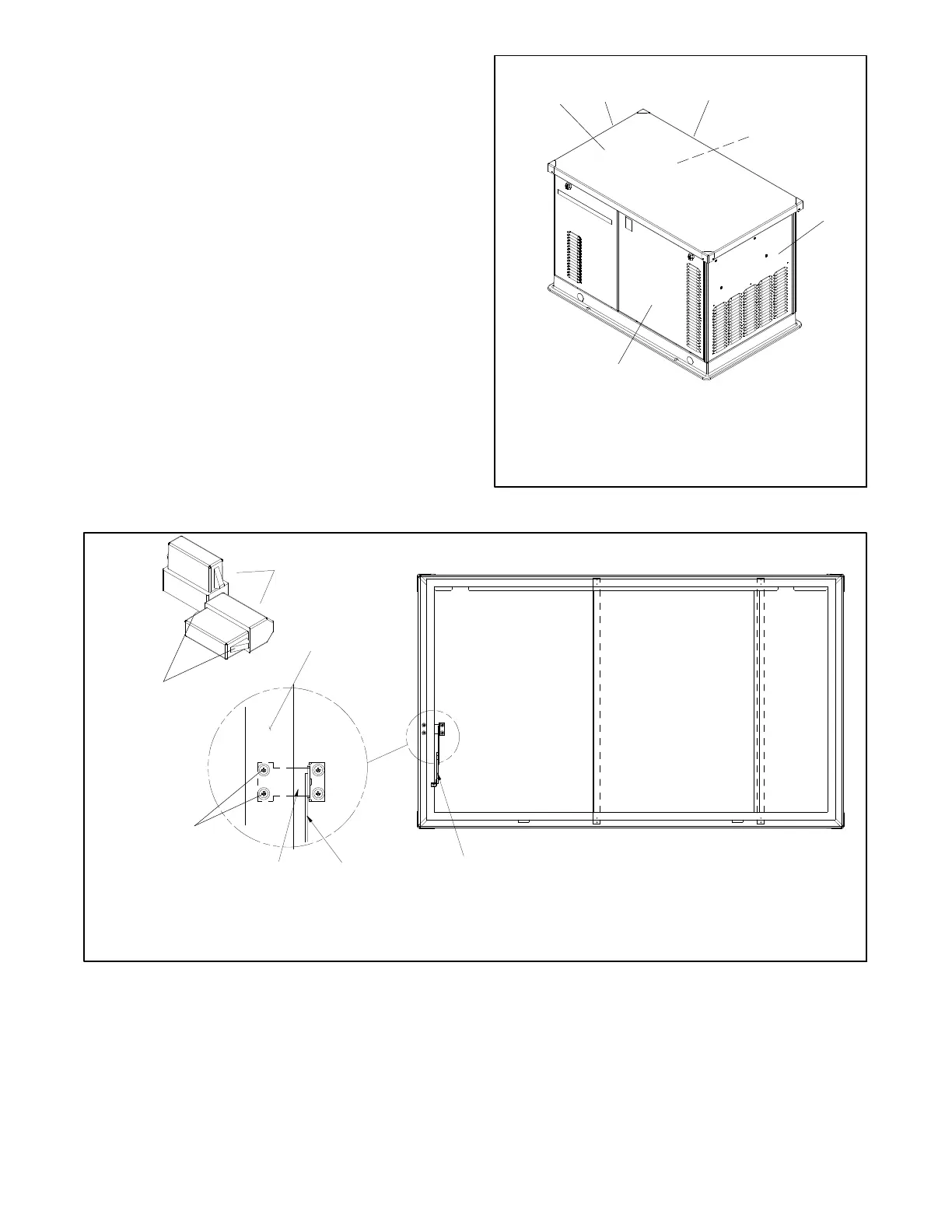

Figure 6-1 Enclosure Parts, Order of Disassembly
GM51561D-E
1. Hinges
2. Roof
3. Door stay (GM51973)
4. Bracket
Compress
hinge springs
Remove
two screws
2
4
3
3
1
Figure 6-2 Roof Stay and Hinges
