QUICK FILL SERVICE CENTER
The service center (Figure 2-4) can be located on
either side of the truck and is used to fill system flu-
ids. Table 1 shows the maximum recomended fill
pressures for the service center.

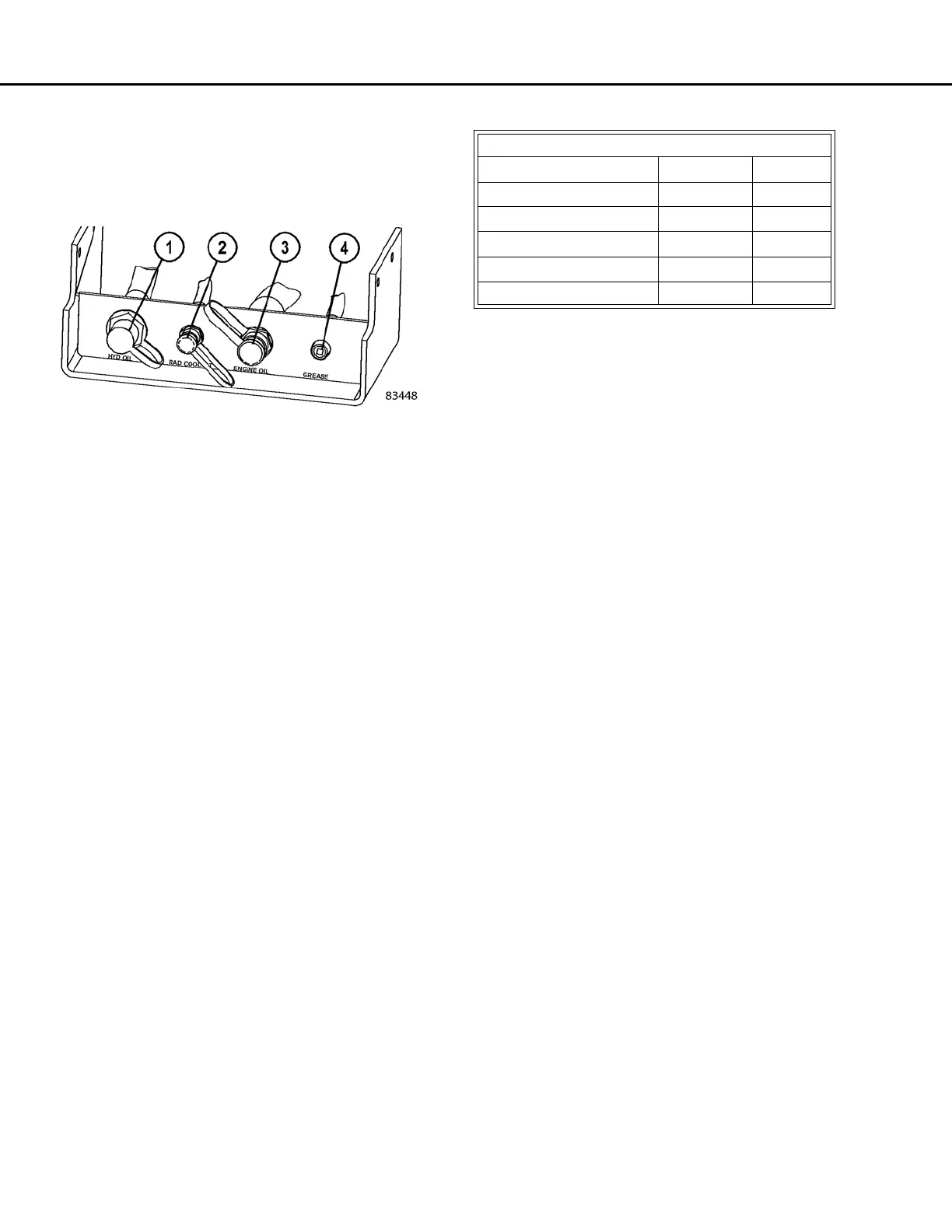

FIGURE 2-4. SERVICE CENTER
1. Hydraulic Oil
2. Radiator Coolant
3. Engine Oil
4. Grease
TABLE 1: MAXIMUM FIll PRESSURES
Fill System kPa psi
Engine Crankcase 345 50
Reserve Tank 862 125
Hydraulic Tank 345 50
Coolant 345 50
Grease 10 342 1,500
