PASSENGER SEAT
The passenger seat provides a fully adjustable
cushioned ride for driver comfort and easy operation.
Seat Belts
• On both driver and passenger seats, check the
seat belt fabric, buckle, all belt retractors and
hardware for damage or wear. Replace any worn
or damaged parts immediately.
• Even if there are no signs of damage, replace
both driver and passenger seat belts 5 years after
seat belt manufacture, or every 3 years after start
of use, whichever comes first. The passenger
seat belt date of manufacture label is sewn into
the seat belt near the buckle. The driver seat belt
date of manufacture label is sewn into the
shoulder harness belt, near the retractor end.
Adjustment
The following adjustments must be made while sitting
in the seat. Refer to Figure 32-6.
1. Fore/Aft Location of Seat Cushion (if
equipped) - Lift and hold lever (1) and move
the seat cushion to a comfortable position.
Release the lever to lock the position adjust-
ment.
2. Seat Height - Pull up on handle (2), then adjust
the height of the seat. When the desired height
is reached, release the handle.
3. Weight Adjustment - Rotate knob (3) until the
weight indicator next to the knob is pointing to
the weight of the person that will be riding in the
seat. This will provide the most comfortable ride
setting.
4. Fore/Aft Location of Seat - Lift and hold lever
(4) and move the seat to a comfortable location.
Release the lever to lock the fore/aft location.

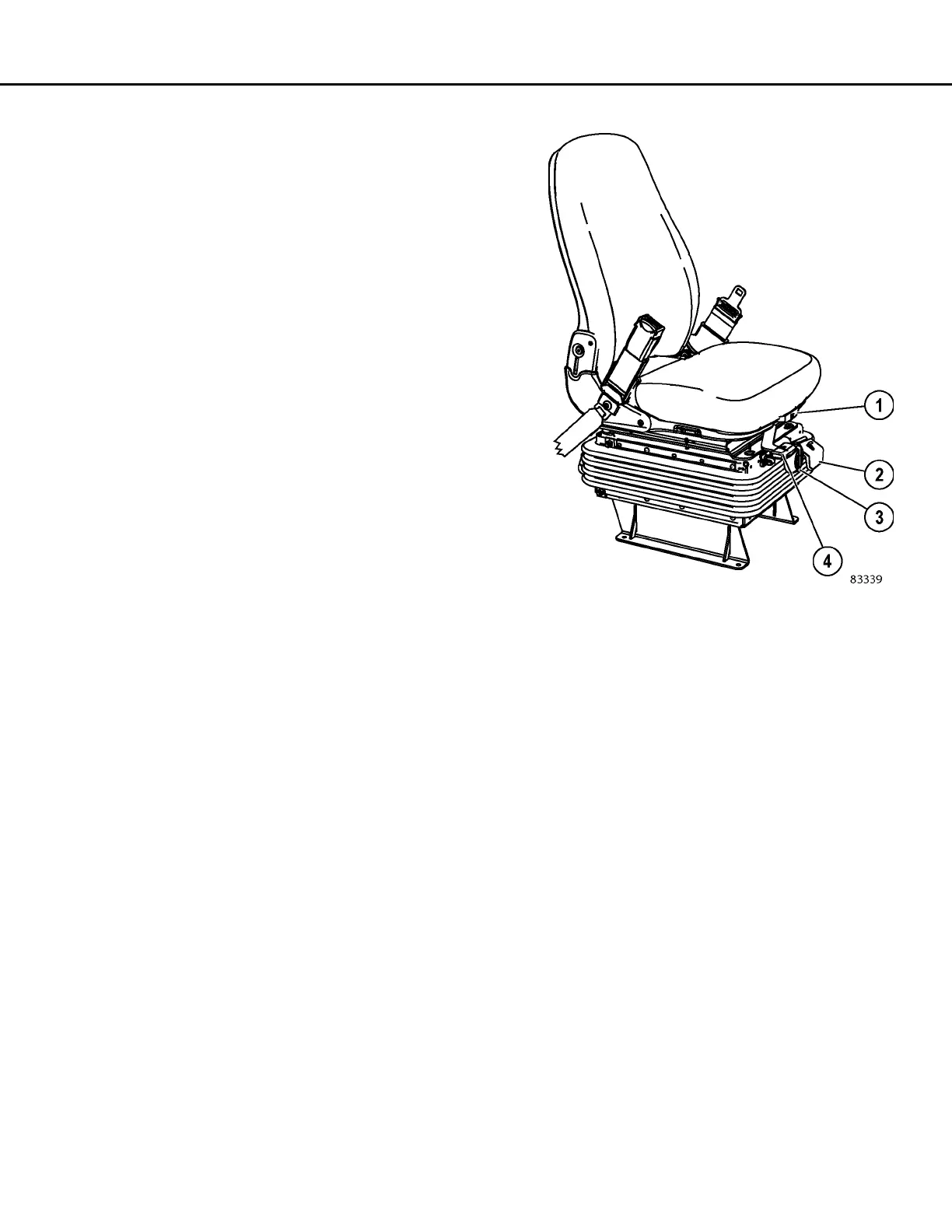

1. Seat Cushion Fore
and Aft
2. Seat Height
3. Weight Adjustment
4. Fore and Aft
FIGURE 32-6. PASSENGER SEAT CONTROLS
