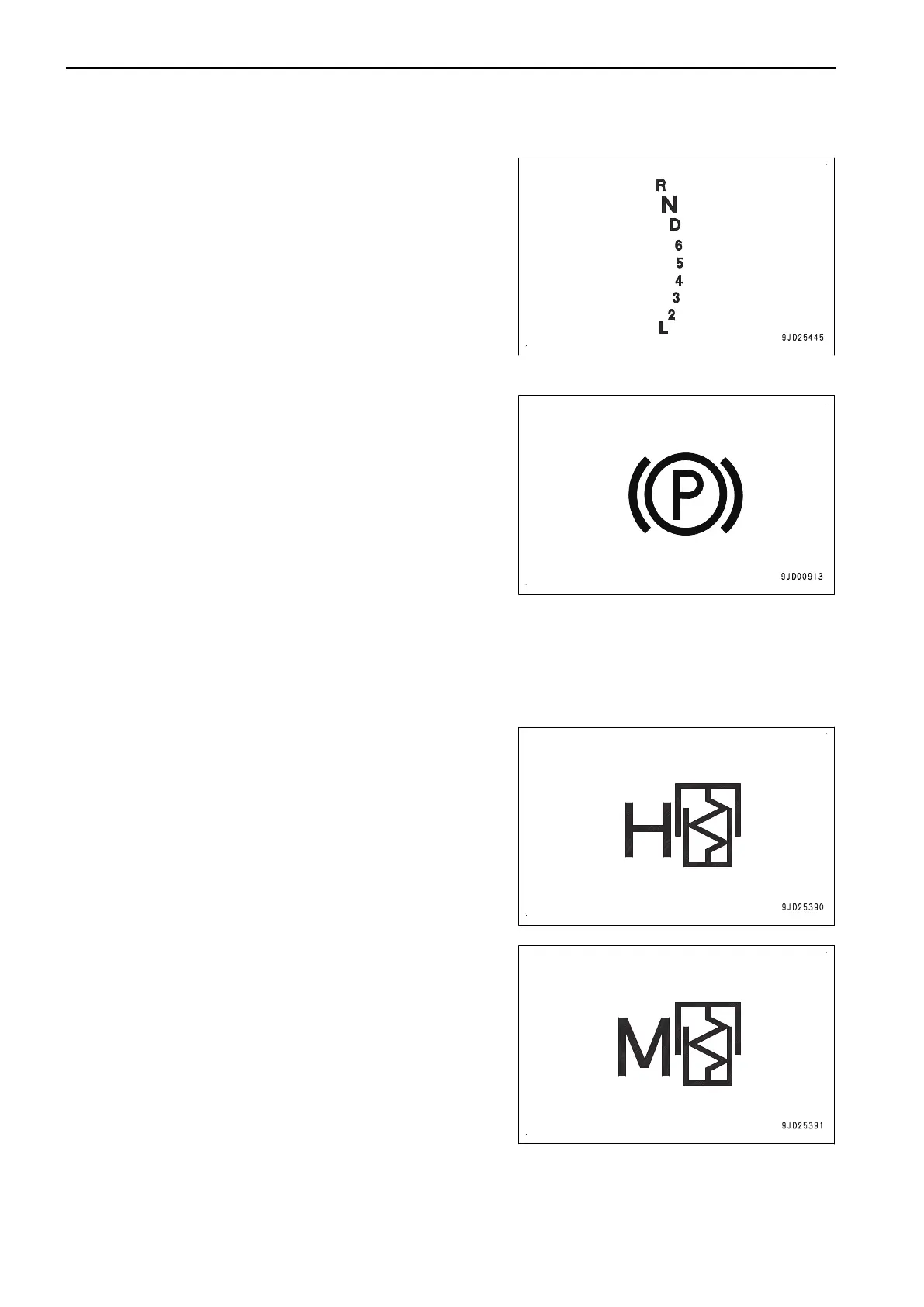

SHIFT LEVER POSITION DISPLAY
The gear shift lever position display indicates the gear shift lev-
er position.
The character for the selected gear shift lever position is en-
larged.
PARKING BRAKE PILOT LAMP
The parking brake pilot lamp lights up when the parking brake
is applied.
AUTO SUSPENSION MODE PILOT LAMP
(if equipped)
The auto suspension mode pilot lamp indicates which mode is used for suspension.
The automatic suspension system is a function that automatically changes the hardness of the suspension ac-
cording to the loading state (with/without the load), the operating state of the brakes, steering, and dump control.
H (hard mode)
The automatic suspension becomes the hard mode in any of
the following cases, and the hardness of the suspension be-
comes hard.
• The machine travels or turns at high speed when it is load-
ed.
• The brake pedal is depressed when the machine is load-
ed.
• The dump lever is in the position other than “FLOAT” re-
gardless of the payload.
M (medium mode)
The automatic suspension becomes the medium mode in any
of the following cases, and the hardness of the suspension be-
comes normal.
• The machine is operated normally when it is loaded.
• The brake pedal is depressed when the machine is un-
loaded.
EXPLANATION OF COMPONENTS OPERATION
3-38
