30 Testing and adjusting SEN04114-06

PC130-8

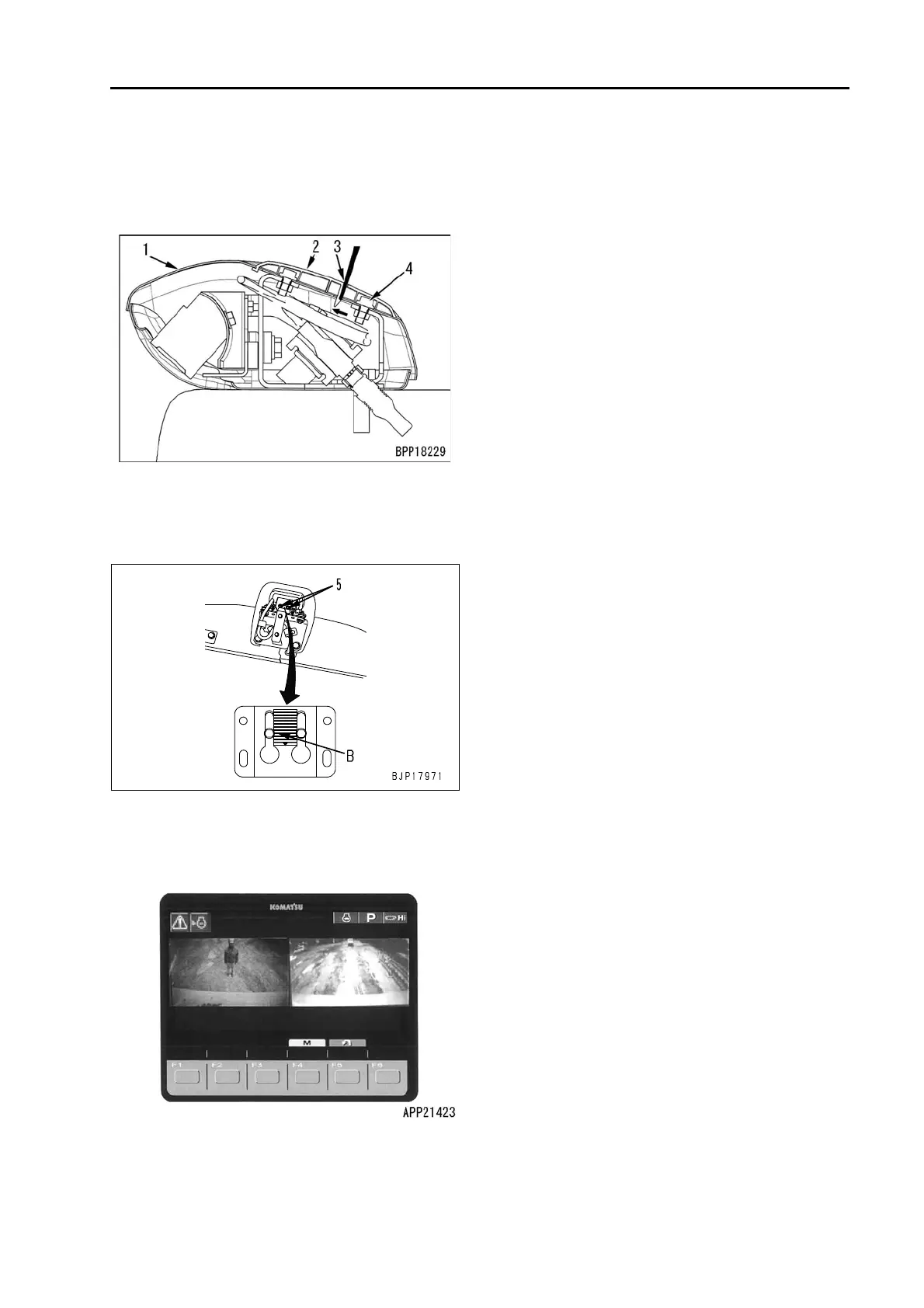

1) To remove cover (1), insert a flat-head

screwdriver etc. in hole (3) at the top of

cover (2) to push the inside claw and

remove the cover.

2) Remove 2 bolts (4) and remove cover (1).

3) Loosen camera mounting bolt (5) and

adjust the installed angle of the camera so

that the center of mounting bolt (5) will be

set to 4th scale mark (B) from the bottom.

a A part of the machine is projected on the

monitor.

4) After adjusting, tighten bolt (5).
