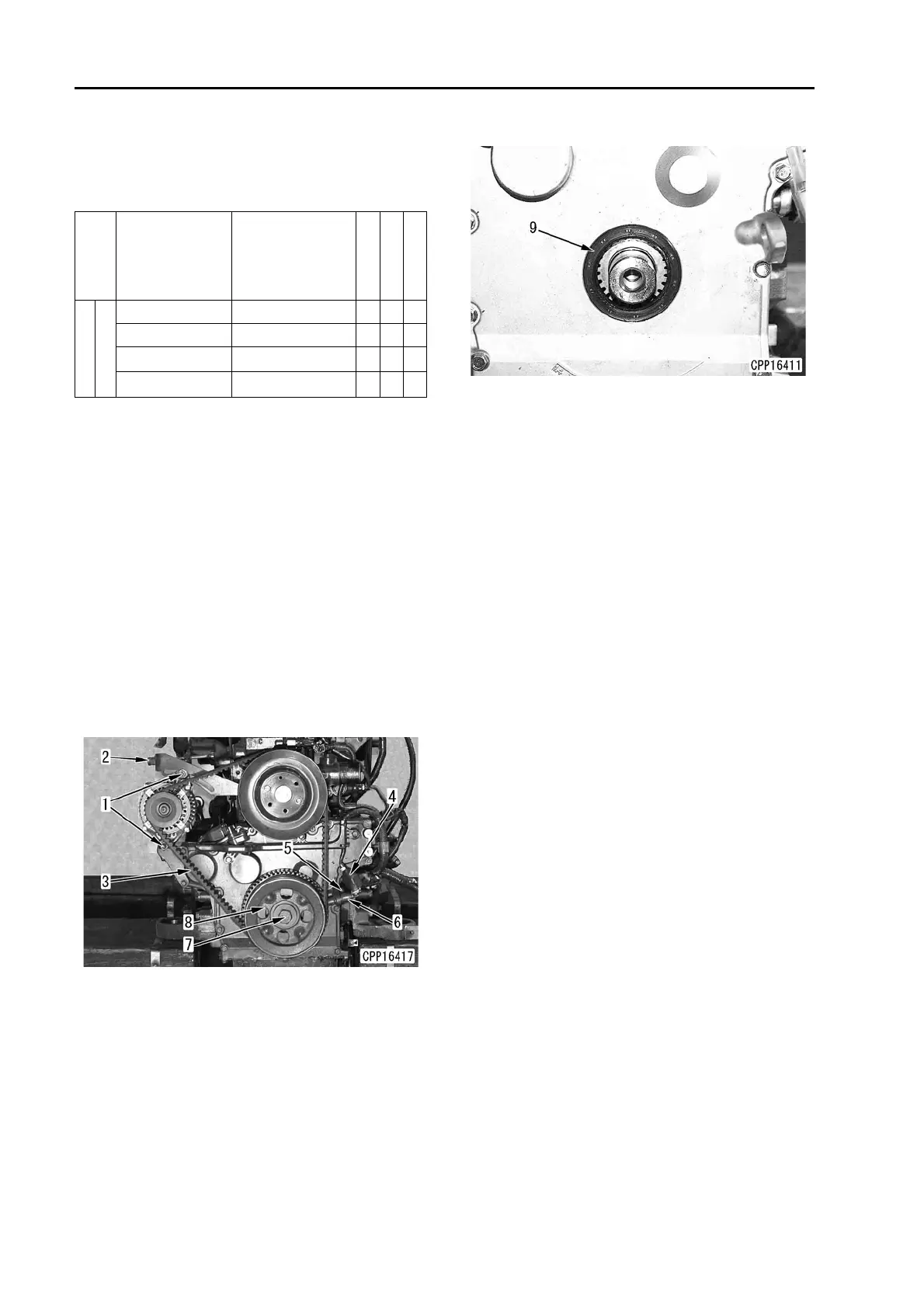

SEN04127-02 50 Disassembly and assembly

8 PC130-8

Removal and installation of front

oil seal 1

Special tools

Removal

1. Remove the engine assembly, referring to

"Removal and installation of engine assembly".

2. Remove alternator mounting bolt (1).

3. Loosen fan belt adjust bolt (2) and remove fan

belt (3). [*1]

4. Remove engine speed sensor connector (4).

5. Remove speed sensor mounting bolt (5) and

remove speed sensor (6). [*2]

6. Remove crankshaft pulley mounting bolt (7)

and remove crankshaft pulley (8). [*3]

7. Remove front oil seal (9).

Sym-

bol

Part No. Part name

Necessity

Q'ty

New/Remodel

790-101-5201 Push tool (kit) t 1

795T-221-1010 Plate 1

790-101-5221

•Grip

01010-51225

•Bolt
